User manual HP Z440 Series F1M42UT Turnkey Kit with 32GB RAM, 512GB SSD,

Operating instructions and pdf manual for use - HP Z440 Series F1M42UT Turnkey Kit with 32GB RAM, 512GB SSD, User manual, User manual HP Z440 Series F1M42UT Turnkey Kit with 32GB RAM, 512GB SSD,, HP, Z440, Series, F1M42UT, Turnkey, Kit, with, 32GB,


User manual for HP Z440 Series F1M42UT Turnkey Kit with 32GB RAM, 512GB SSD,

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.

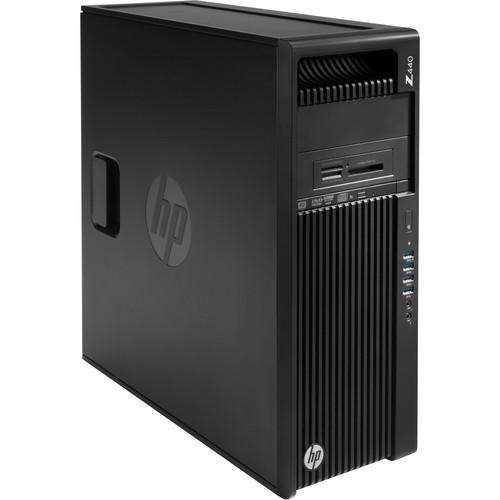

HP Z440 Series F1M42UT Turnkey Kit with 32GB RAM, 512GB SSD,
  • Manufacturer: HP
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Desktops & Workstations - PC Workstations
  • Safety instructions
  • Startup and operation of the pc workstations
  • Tips for setting up your HP
  • Settings and expert assistance
  • Contact HP service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the HP Z440 Series F1M42UT Turnkey Kit with 32GB RAM, 512GB SSD,, which address similar problems with connecting and setting up PC Workstations HP.



User manual for the HP Z440 Series F1M42UT Turnkey Kit with 32GB RAM, 512GB SSD,

The user manual for the HP Z440 Series F1M42UT Turnkey Kit with 32GB RAM, 512GB SSD, provides necessary instructions for the proper use of the product Computers & Solutions - Desktops & Workstations - PC Workstations.

This B&H Kit combines the HP Z440 Series F1M42UT with a 24GB memory module kit, a 512GB SATA III SSD, a PNY Technologies NVIDIA Quadro K2200 Professional graphics card, an HP 15-in-1 Internal Media Card Reader, a 180 to 90° SATA cable, a 3.5" to 2 x 2.5" HDD/SSD bay converter, and B&H installation services. The HP Z440 Series F1M42UT Minitower Workstation is powered by a 3.5 GHz Intel Xeon E5-1620 v3 Quad-Core processor that features a burst speed of up to 3.6 GHz. This system features two internal drives - a 512GB SATA III SSD and a 1TB 7200 rpm SATA hard drive for a total of 1.512TB of storage. A Slim SuperMulti DVD Writer is also built into this system for reading and writing data stored on optical media. A USB keyboard and a USB mouse are also included and while the HP Z440 comes preloaded with Windows 7 Pro (64-bit), you also have the option of installing Windows 8.1 Pro (64-bit) at no additional cost.

For delivering high-performance graphics, this workstation is bundled with a PNY Technologies NVIDIA Quadro K2200 Professional graphics card. This card features 4GB of GDDR5 RAM over a 128-bit memory interface and is equipped with 2 x DisplayPort 1.2 and 1 x Dual-Link DVI-I video outputs for connecting to an external display. This card also has an 80 GB/s memory bandwidth and can support both 4K and 3D displays. It is also capable of simultaneously supporting up to three directly connected displays. Using a DisplayPort output and a separately sold MST hub, up to four simultaneous displays are supported.

With the bundled 24GB memory module kit (3 x 8GB), this system features 32GB of RAM. The included 2.5" 512GB SATA III SSD is configured as the primary system drive with the operating system. So that this drive may be installed inside the chassis, a SATA cable and a 3.5" to 2.5" adapter, which can hold two 2.5" drives, are also included. The original 1TB 7200 rpm hard drive is left in the system, but is reformatted as a blank drive. The included HP 15-in-1 media card reader natively supports 15 memory card types. By using a separately sold adapter, it can support 20 memory card types. This turnkey kit also includes B&H professional installation; these services allow your system and additional components to be ready for use upon arrival.

Supported Media Types
  • CompactFlash Type I
  • CompactFlash Type II
  • Microdrive
  • Secure Digital card (SD)
  • Secure Digital High Capacity (SDHC)
  • SD Extended Capacity memory card (SDXC)
  • SD Ultra High Speed II (SD UHSII)
  • Memory Stick
  • Memory Stick Select
  • Memory Stick Duo (MS Duo)
  • Memory Stick PRO (MS PRO)
  • Memory Stick PRO Duo (MS PRO Duo)
  • Memory Stick PRO-HG Duo
  • MagicGate Memory Stick (MG)
  • MagicGate Memory Stick Duo

    Supported Media Types with Card Adapter
  • Memory Stick Micro (M2)
  • miniSD
  • miniSD High Capacity
  • Micro SD memory card (MicroSD)
  • Micro SD High Capacity memory card (MicroSDHC)
  • If you own a HP pc workstations and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

    You can upload and download the manual for the HP Z440 Series F1M42UT Turnkey Kit with 32GB RAM, 512GB SSD, in the following formats:
    • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
    Additional parameters of the HP Z440 Series F1M42UT Turnkey Kit with 32GB RAM, 512GB SSD,:
    Specifications
    • HP Z440 F1M42UT Minitower Workstation
      Performance
      Processor Intel Xeon E5-1620 v3 Quad-Core
      Base Clock Speed 3.5 GHz
      Max Boost Speed 3.6 GHz
      L3 Cache 10 MB
      Chipset Socket: FCLGA2011-3
      Type: Intel C612
      Memory Slots 8 x DIMM 288-Pin
      Memory Installed: 8 GB
      Capacity: 128 GB
      Memory Type 1 x 8 GB PC4-17000 2133 MHz DDR4 SDRAM
      Graphics Type None
      Graphics Card None
      Drives
      Hard Drive Bays: 2x 3.5"
      Installed: 1 TB (1x 1 TB 7200 rpm)
      Type: SATA
      Optical Drive Tray-Load SuperMulti DVD Burner
      Drive Bay Expansion Quantity: 2
      Size: 3.5"
      Type: Internal
      Quantity: 2
      Size: 5.25"
      Type: External
      PCI Expansion Quantity: 2
      Type: PCIe Gen 3 x16
      Quantity: 1
      Type: PCIe Gen 3 x8
      Quantity: 1
      Type: PCIe Gen 2 x4
      Quantity: 1
      Type: PCIe Gen 2 x1
      Quantity: 1
      Type: PCI
      Inputs/Outputs
      Ports 8 x USB 3.0 Type-A
      2 x USB 2.0 Type-A
      2 x PS/2
      Audio 3 x 1/8" (3.5 mm) Headphone Output
      1 x 1/8" (3.5 mm) Microphone Input
      Flash Media Slot Not Specified By Manufacturer
      Communications
      Network 10/100/1000 Mbps Gigabit Ethernet (RJ-45)
      Wi-Fi None
      Bluetooth None
      Keyboard & Mouse
      Keyboard Type: Full-Size
      Features: Numeric Keypad
      Mouse USB
      General
      Operating System Windows 7 Professional (64-bit)
      Power Supply 700 W
      Dimensions (WxHxD) 6.7 x 17.0 x 17.5" / 16.9 x 43.2 x 44.5 cm
      Weight 24.3 lb / 11.02 kg Exact weight depends upon configuration
      Packaging Info
      Box Dimensions (LxWxH) 24.0 x 22.0 x 13.0"
    • 3 x Crucial 8GB 288-Pin RDIMM DDR4 PC4-17000 Memory Module
      Memory Size 1 x 8 GB
      Memory Speed DDR4 PC4-17000
      DDR4-2133 MT/s
      Interface 288-pin
      Form Factor RDIMM
      Memory Specifications Registered
      Single ranked
      x4 based
      1024 Meg x 72
      Memory Voltage 1.2 V
      CAS Latency 15
      ECC Yes
      Packaging Info
      Box Dimensions (LxWxH) 6.3 x 1.7 x 0.4"
    • HP Quadro K2200 Graphics Card (Smart Buy Pricing)
      Performance
      GPU Quadro K2200
      Stream Processors (CUDA Cores) 640
      Memory 4 GB
      Memory Type GDDR5
      Memory Interface 128-bit
      Memory Bandwidth 80 GB/s
      Connectivity
      Outputs 1 x DVI-I dual-link
      2 x DisplayPort (DP 1.2 and audio support)
      Maximum Resolution DisplayPort: 3840 x 2160 (UHD 4K) at 60 Hz
      DVI Dual-Link: 2560 x 1600 at 60 Hz
      DVI Single-Link: 1920 x 1200 at 60 Hz
      VGA (with Supplied Adapter): 2048 x 1536 at 85 Hz
      Number of Displays Supported Three connected directly; four using a single DisplayPort output and separately available MST hub
      HDCP Support Yes
      Host Interface PCIe 2.0 x16
      System Requirements
      Software Windows: 8.1, 8, 7, Vista, XP SP3
      Linux
      Solaris
      Hardware 1 x Free PCIe expansion slot
      1 GB RAM (2 GB or more recommended)
      200 MB free disk space for drive installation
      DVD-ROM to install drivers from disc
      Internet connection to install drivers as download
      Display with DisplayPort, DVI, or VGA input
      General
      Supported APIs Graphics APIs: Shader Model 5.0, OpenGL 4.4, DirectX 11
      Compute APIs: CUDA, DirectCompute, OpenCL
      NVIEW Support NVIDIA Mosaic: Supported on Windows 8.1, 8, 7, and select Linux distributions
      NVIDIA 3D Vision and 3D Vision Pro: Via USB connection to 3D Vision hub
      Thermal Solution Active fansink
      Power Consumption Maximum: 68 W
      Form Factor Single-Slot: Full-height
      Dimensions 4.4 x 8" / 11.1 x 20.2 cm
      Weight Not specified by manufacturer
      Packaging Info
      Box Dimensions (LxWxH) 9.921 x 8.11 x 2.598"
    • Transcend 512GB SSD370 SATA III 2.5" Internal SSD
      Performance
      Capacity 512 GB
      Controller TS6500
      Interface SATA III 6 Gb/s
      Read / Write Speeds Sequential Read: 560 MB/s
      Sequential Write: 460 MB/s
      IOPS Max 4k Random File Read: 75,000
      Max 4k Random File Write: 75,000
      Flash Synchronous MLC NAND Flash memory
      Operating Voltage DC 5 V
      General
      Material of Construction Plastic
      System Requirements Windows XP, Vista, 7, 8
      Linux Fedora 13, Ubuntu 9.10, Solaris 10
      WinXP Embedded, WinCE
      Mac OS 10.4 or Later
      DOS
      Environmental Requirements 32 to 158°F / 0 to 70°C
      Certificates CE, FCC, BSMI
      Dimensions (WxHxD) 2.7 x 0.3 x 3.9" / 69.8 x 7 x 99.8 mm
      Weight 1.8 oz / 52 g
      Packaging Info
      Box Dimensions (LxWxH) 5.3 x 4.3 x 0.9"
    • HP 15-in-1 USB 3.0 5.25/3.25" Internal Media Card Reader
      Interface USB 3.0 (backwards compatible with USB 2.0)
      Form Factor 5.25" / 3.5" Internal
      Compatible Operating Systems Windows 8.1 (64-bit), 8 Pro (64-bit), 8 (64-bit), 7 Ultimate (32 and 64-bit), 7 Professional (32 and 64-bit), 7 Home Basic, 7 Home Premium (32 and 64-bit), Vista Business 64 and 32, Vista Home Basic 32, XP Professional, XP Home 32

      No driver is required for this device. Native support is provided by the operating system
      Dimensions 4.9 x 4.0 x 1.0" / 12.4 x 10.2 x 2.5 cm
      Weight 0.35 lb / 0.16 kg
      Packaging Info
      Box Dimensions (LxWxH) 10.158 x 8.347 x 4.016"
    • B&H Photo Video Computer Component Upgrade Installation
      Packaging Info
      Box Dimensions (LxWxH) 1.0 x 1.0 x 1.0"
    • Sabrent 3.5" to 2 x 2.5" HDD/SSD Bay Converter
      Material SECC steel
      Compatibility For use with 2.5" HDD or SSD
      Packaging Info
      Box Dimensions (LxWxH) 6.4 x 4.5 x 1.1"
    • C2G 7-pin 180- to 90-Degree 1-Device Serial ATA Cable - 18"
      Cable Type SATA / Serial ATA
      Length 18" (45.7 cm)
      Weight 0.04 lb (0.02 kg)
      Supported Transfer Speed Up to 6.0 Gbps
      Ideal Application Handling differential signals in today's technology, while delivering greater throughput and less data packet loss
      Cable
      Conductors 26 AWG tinned copper
      Gauge Not specified by manufacturer
      Shielding Thermoplastic Al. Mylar
      Dielectric (Insulation) FM-PE+Skin
      Jacket Standard rating
      Color Red
      Connectors
      Connector 1 7-pin Serial ATA Female
      Connector 2 7-pin Serial ATA Female
      Shielding Not specified by manufacturer
      Contacts Phosphor bronze
      Body Not specified by manufacturer
      Interface Required SATA 3.0
      Standards Certification UL
      Packaging Info
      Box Dimensions (LxWxH) 6.0 x 3.9 x 0.9"
    The user manual for the HP Z440 Series F1M42UT Turnkey Kit with 32GB RAM, 512GB SSD, can be downloaded in .pdf format if it did not come with your new pc workstations, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other HP users keep a unique electronic library for HP pc workstationss, where you can use our link to download the user manual for the HP Z440 Series F1M42UT Turnkey Kit with 32GB RAM, 512GB SSD,.

    The user manual lists all of the functions of the HP Z440 Series F1M42UT Turnkey Kit with 32GB RAM, 512GB SSD,, all the basic and advanced features and tells you how to use the pc workstations. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from HP service.
