User manual for the HP Z640 F1M59UT Turnkey Workstation with 32GB RAM, 512GB SSD,

The user manual for the HP Z640 F1M59UT Turnkey Workstation with 32GB RAM, 512GB SSD, provides necessary instructions for the proper use of the product Computers & Solutions - Desktops & Workstations - PC Workstations.

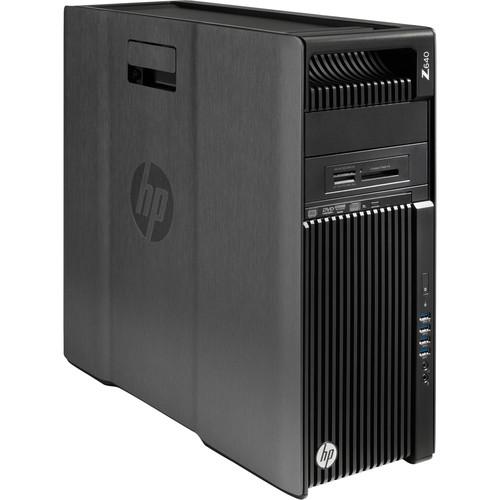

This B&H Kit combines the HP Z640 F1M59UT Rackable Minitower Workstation with a 24GB (3 x 8GB) memory module kit, a 512GB 2.5" SATA SSD, a 16x Super Multi Blu-ray Disc Rewriter, an HP 15-in-1 internal media card reader, a 5.25" mounting bracket that supports two 2.5" drives and one 3.5" drive, a 7-pin 18" 180 to 90° SATA cable, a 7-pin 18" 180° SATA cable, and B&H installation services.

This HP Z640 workstation is powered by a 2.4 GHz Intel Xeon E5-2620 v3 Six-Core processor. It features two internal drives - a 1TB 7200 rpm SATA hard drive and a 512GB 2.5" SATA SSD, for a total of 1.512TB of storage. While a Slim SuperMulti DVD Burner is natively built into this system for reading and writing data stored on optical media, an internal 16x Super Multi Blu-ray Disc Rewriter is also included that will support the reading, writing, and rewriting of Blu-ray, DVD, and CD media. While the installed operating system is Windows 7 Pro (64-bit), a Windows 8.1 Pro (64-bit) license is also included and is available at no additional cost.

For delivering sharp, clear graphics, this workstation comes with a dedicated NVIDIA Quadro K2200 graphics card that has 4GB of GDDR5 RAM. Video may be output to an external display using the 2 x DisplayPort and 1 x DVI-I outputs. Other external peripherals may be connected to this system using the 8 x USB 3.0 ports and 2 x USB 2.0 ports. Network connectivity may be achieved using the Gigabit Ethernet port and a USB keyboard and mouse is also included.

With the bundled 24GB (3 x 8GB) memory module kit, this system features 32GB of 288-pin DIMM 2133 MHz PC4-17000 DDR4 RAM. The included 512GB 2.5" SATA SSD is configured as the primary system drive with the operating system, while the native 1TB HDD is configured as additional storage. So that the included SSD and Blu-ray drives may be connected to the motherboard, two SATA cables are included. Additionally, a 5.25" bracket, which can hold two 2.5" drives and one 3.5" drive, is also included and allows the 512GB SSD to be installed within one of the chassis' 5.25" bays. The included HP 15-in-1 media card reader natively supports 15 memory card types. By using a separately sold adapter, it can support 20 memory card types. This turnkey kit also includes B&H professional installation; these services allow your system and additional components to be ready for use upon arrival.

Supported Media Types
  • CompactFlash Type I
  • CompactFlash Type II
  • Microdrive
  • Secure Digital card (SD)
  • Secure Digital High Capacity (SDHC)
  • SD Extended Capacity memory card (SDXC)
  • SD Ultra High Speed II (SD UHSII)
  • Memory Stick
  • Memory Stick Select
  • Memory Stick Duo (MS Duo)
  • Memory Stick PRO (MS PRO)
  • Memory Stick PRO Duo (MS PRO Duo)
  • Memory Stick PRO-HG Duo
  • MagicGate Memory Stick (MG)
  • MagicGate Memory Stick Duo

    Supported Media Types with Card Adapter
  • Memory Stick Micro (M2)
  • miniSD
  • miniSD High Capacity
  • Micro SD memory card (MicroSD)
  • Micro SD High Capacity memory card (MicroSDHC)
    • If you own a HP pc workstations and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

    You can upload and download the manual for the HP Z640 F1M59UT Turnkey Workstation with 32GB RAM, 512GB SSD, in the following formats:
    • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
    Additional parameters of the HP Z640 F1M59UT Turnkey Workstation with 32GB RAM, 512GB SSD,:
    Specifications
    • HP Z640 F1M59UT Rackable Minitower Workstation (ENERGY STAR)
      Performance
      Processor Intel Xeon E5-2620 v3 6-Core
      Base Clock Speed 2.4 GHz
      Max Boost Speed 3.2 GHz
      L3 Cache 15 MB
      System Bus 8 GT/s
      Chipset Socket: FCLGA2011-3
      Type: Intel C612
      Memory Slots 4 x DIMM 288-Pin
      Memory Installed: 8 GB
      Capacity: 128 GB
      Memory Type 1 x 8 GB 2133 MHz DDR4 SDRAM
      Graphics Type Dedicated
      Graphics Card NVIDIA Quadro K2200 with 4 GB GDDR5 VRAM
      Drives
      Hard Drive Installed: 1 TB (1x 1 TB 7200 rpm)
      Type: SATA
      Optical Drive SuperMulti DVD Burner
      Drive Bay Expansion Quantity: 2
      Size: 3.5"
      Type: Internal
      Quantity: 2
      Size: 5.25"
      Type: External
      PCI Expansion Quantity: 2
      Type: PCIe Gen 3 x16
      Quantity: 1
      Type: PCIe Gen 3 x8
      Quantity: 1
      Type: PCIe Gen 2 x4
      Quantity: 1
      Type: PCIe Gen 2 x1
      Quantity: 1
      Type: PCI
      Inputs/Outputs
      Ports 8 x USB 3.0 Type-A
      2 x USB 2.0 Type-A
      2 x PS/2
      Display 2 x DisplayPort
      1 x DVI-I
      Audio 1 x 1/8" (3.5 mm) Headphone/Microphone Combo Jack
      1 x 1/8" (3.5 mm) Microphone Input
      Flash Media Slot None
      Communications
      Network 1 x 10/100/1000 Mbps Gigabit Ethernet (RJ-45)
      Wi-Fi None
      Bluetooth None
      Keyboard & Mouse
      Keyboard Type: Full-Size
      Features: Numeric Keypad
      Mouse USB
      General
      Operating System Windows 7 Professional (64-bit)
      Power Supply 925 W
      Dimensions (WxHxD) 6.8 x 17.5 x 18.3" / 17.3 x 44.5 x 46.5 cm
      Weight 33.1 lb / 15.01 kg Exact weight depends upon configuration
      Packaging Info
      Box Dimensions (LxWxH) 24.0 x 23.0 x 13.0"
    • Samsung 512GB 850 PRO Series SATA 2.5" SSD
      Capacity 512 GB
      Interface SATA III 6 Gb/s
      Form Factor 2.5"
      Controller Samsung 3-Core MEX Controller
      NAND Flash Samsung 32 layer 3D 2-bit V-NAND
      Sequential Read Speed Up to 550 MB/s
      Sequential Write Speed Up to 520 MB/s
      Read Performance 4 kB Random Reads (QD32): up to 100,000 IOPS
      4 kB Random Reads (QD1): up to 10,000 IOPS
      Write Performance 4 kB Random Writes (QD32): up to 90,000 IOPS
      4 kB Random Writes (QD1): up to 36,000 IOPS
      TRIM Support Yes (requires OS support)
      RAID Support Yes (with RAID controller)
      Encryption Yes, Class 0 (256-Bit AES), TCG/Opal v2.0, MS eDrive (IEEE1667)
      Standard Operating Voltage 5 V ± 5%
      Power Consumption Active Reads: 3.3 W (max)
      Active Writes: 3.0 W (max)
      Idle: 0.4 W (max)
      Device Sleep Yes (2 mW)
      Reliability (MTBF) 2 million hours
      Reliability (TBW) 150 TBW / 80 GB
      Annualized Failure Rate (AFR) 0.45%
      Uncorrectable Bit Error Rate 1 sector per 1017 bits read
      Environmental Requirements Temperature: 32 to 158°F / 0 to 70°C
      Humidity: 5 to 95%, non-condensing
      Data Retention 1 year power-off once SSD reaches rated write endurance at 104°F / 40°C
      Hardware Compatibility Windows 8 (32 & 64-bit), 7 (32 & 64-bit), Vista, XP, Mac OSX, Linux
      Software Compatibility Windows 8 (32 & 64-bit), 7 (32 & 64-bit), Vista SP1 and above, XP SP2 and above, Server 2008 (32 & 64-bit), Server 2003 with SP2 and above (32 & 64-bit)
      Dimensions (WxHxD) 3.94 x 2.75 x 0.27" / 100.08 x 69.85 x 6.86 mm
      Weight 0.14 lb / 63.5 g
      Packaging Info
      Box Dimensions (LxWxH) 5.7 x 5.6 x 0.7"
    • 3 x Crucial 8GB 288-Pin RDIMM DDR4 PC4-17000 Memory Module
      Memory Size 1 x 8 GB
      Memory Speed DDR4 PC4-17000
      DDR4-2133 MT/s
      Interface 288-pin
      Form Factor RDIMM
      Memory Specifications Registered
      Single ranked
      x4 based
      1024 Meg x 72
      Memory Voltage 1.2 V
      CAS Latency 15
      ECC Yes
      Packaging Info
      Box Dimensions (LxWxH) 6.3 x 1.7 x 0.4"
    • LG WH16NS40 16x Internal Super Multi Blue Blu-ray Disc Rewriter
      Maximum Write Speeds BD-R (SL): 2x, 4x CLV, 6x, 8x, 10x PCAV, 12x CAV, 16x CAV
      (DL/ TL&QL): 2x, 4x CLV, 6x, 8x PCAV, 12x CAV/2x, 4x CLV, 6x ZCLV
      BD-R (SL LTH): 2x, 4x CLV, 6x PCAV
      BD-RE (SL/DL/TL): 2x CLV
      DVD-R: 2x, 4x CLV, 8x ZCLV, 8x, 12x PCAV, 16x CAV
      DVD-R DL: 2x, 4x CLV, 8x PCAV
      DVD-RW (SL): 1x, 2x, 4x, 6x CLV
      DVD-RAM: 2x, 3x, 5x CLV
      M-DISC: 4x
      DVD+R: 4x CLV, 8x, 12x PCAV, 16x CAV
      DVD+R: DL 2.4x, 4x CLV, 8x PCAV
      DVD+RW: 2.4x, 4x, 6x CLV, 8x ZCLV
      CD-R: 8x, 16x CLV, 24x, 32x, 40x PCAV, 48x CAV
      CD-RW: 4x, 10x, 16x CLV, 24x ZCLV
      Maximum Read Speeds BD-ROM (SL/DL): 12x / 8x CAV
      BD-R (SL L to H): 6x CAV
      BD-R (SL/DL): 12x / 8x CAV
      BD-R (TL/QL): 6x / 6x CAV
      BD-RE (SL/DL): 8x /6x CAV
      BDMV (AACS Compliant Disc): 12x
      DVD-ROM (SL/DL): 16x / 12x CAV
      DVD-R (SL/DL): 16x / 12x CAV
      DVD-RW (SL): 12x CAV
      DVD+R (SL/DL): 16x / 12x CAV
      DVD+RW (SL/DL): 12x CAV
      DVD-RAM: 2x, 3x, 5x CLV
      M-DISC: 12x
      DVD-Video (CSS Compliant Disc): 12x / 8x CAV (SL/DL)
      CD-R/RW/ROM: 48x / 40x / 48x CAV
      CD-DA (DAE): 40x CAV
      80mm CD: 11.5x CAV
      Access Time (Random) BD-ROM: 180 ms typical
      DVD-ROM: 160 ms typical
      DVD-RAM: 180 ms typical
      CD-ROM: 150 ms typical
      Sustained Transfer Rate BD-ROM: > 62.93 MB/s (>14x)
      DVD-ROM: 22.16 MB/s (16x) max.
      CD-ROM: 7,200 kB/s (48x) max.
      Burst Transfer Rate 1.5 Gb/s (10b side)
      1.2 Gb/s (8b side)
      Buffer Size 4 MB (Under-run prevention embedded)
      Host Interface Serial ATA
      Operating System Windows 8, 7, Vista, XP
      Compliance RoHS
      Dimensions (WxHxD) 5.7 x 1.6 x 6.5" (14.5 x 4.1 x 16.5 cm)
      Weight 1.65 lb (0.75 kg)
      Packaging Info
      Box Dimensions (LxWxH) 9.0 x 8.4 x 4.8"
    • HP 15-in-1 USB 3.0 5.25/3.25" Internal Media Card Reader
      Interface USB 3.0 (backwards compatible with USB 2.0)
      Form Factor 5.25" / 3.5" Internal
      Compatible Operating Systems Windows 8.1 (64-bit), 8 Pro (64-bit), 8 (64-bit), 7 Ultimate (32 and 64-bit), 7 Professional (32 and 64-bit), 7 Home Basic, 7 Home Premium (32 and 64-bit), Vista Business 64 and 32, Vista Home Basic 32, XP Professional, XP Home 32

      No driver is required for this device. Native support is provided by the operating system
      Dimensions 4.9 x 4.0 x 1.0" / 12.4 x 10.2 x 2.5 cm
      Weight 0.35 lb / 0.16 kg
      Packaging Info
      Box Dimensions (LxWxH) 10.158 x 8.347 x 4.016"
    • Icy Dock FLEX-FIT Trio 2 x 2.5" HDD/SSD to 5.25" Bracket + 3.5" Bay (Black)
      Material Plastic
      Drive Fit 1 x 3.5" device or hard drive
      2 x 2.5" IDE/SATA SSDs/HDDs (0.3 to 0.4" (7 to 9.5 mm))
      Device Fit 1 x 5.25" half height device bay
      Compatibility 3.5" hard drives
      3.5" USB 3.0 hub
      3.5" multimedia card readers
      3.5" HDD/SSD mobile racks and 3.5" HDD/SSD brackets
      Dimensions (L x W x H) 5.8 x 1.6 x 6.7" (148.5 x 41.3 x 170.0 mm)
      Weight 4.1 oz (115.0 g)
      Packaging Info
      Box Dimensions (LxWxH) 7.48 x 6.221 x 2.205"
    • C2G 7-pin 180- to 90-Degree 1-Device Serial ATA Cable - 18"
      Cable Type SATA / Serial ATA
      Length 18" (45.7 cm)
      Weight 0.04 lb (0.02 kg)
      Supported Transfer Speed Up to 6.0 Gbps
      Ideal Application Handling differential signals in today's technology, while delivering greater throughput and less data packet loss
      Cable
      Conductors 26 AWG tinned copper
      Gauge Not specified by manufacturer
      Shielding Thermoplastic Al. Mylar
      Dielectric (Insulation) FM-PE+Skin
      Jacket Standard rating
      Color Red
      Connectors
      Connector 1 7-pin Serial ATA Female
      Connector 2 7-pin Serial ATA Female
      Shielding Not specified by manufacturer
      Contacts Phosphor bronze
      Body Not specified by manufacturer
      Interface Required SATA 3.0
      Standards Certification UL
      Packaging Info
      Box Dimensions (LxWxH) 6.0 x 3.9 x 0.9"
    • C2G 7-Pin 180 1-Device Serial ATA Cable - 18"
      Cable Type SATA / Serial ATA 3.0 Female - 7-pin
      Length 18" (45.72 cm)
      Weight 0.04 lb (0.02 kg)
      Supported Transfer Speed up to 6.0 Gbps
      Ideal Application Handling differential signals while delivering increased throughput, reduced data packet loss
      Cable
      Conductors 26 AWG tinned copper
      Gauge Not specified by manufacturer
      Shielding Thermoplastic Al. Mylar
      Dielectric (Insulation) FM-PE+Skin
      Jacket Standard rating
      Color Red
      Connectors
      Connector 1 7-pin Serial ATA Female
      Connector 2 7-pin Serial ATA Female
      Shielding None
      Contacts Phosphor bronze
      Body Not specified by manufacturer
      Interface Required SATA
      Standards Certification UL
      Packaging Info
      Box Dimensions (LxWxH) 6.5 x 4.0 x 0.9"
    • 2 x B&H Photo Video Computer Component Upgrade Installation
      Packaging Info
      Box Dimensions (LxWxH) 1.0 x 1.0 x 1.0"
    The user manual for the HP Z640 F1M59UT Turnkey Workstation with 32GB RAM, 512GB SSD, can be downloaded in .pdf format if it did not come with your new pc workstations, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other HP users keep a unique electronic library for HP pc workstationss, where you can use our link to download the user manual for the HP Z640 F1M59UT Turnkey Workstation with 32GB RAM, 512GB SSD,.

    The user manual lists all of the functions of the HP Z640 F1M59UT Turnkey Workstation with 32GB RAM, 512GB SSD,, all the basic and advanced features and tells you how to use the pc workstations. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from HP service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the HP Z640 F1M59UT Turnkey Workstation with 32GB RAM, 512GB SSD,. User manuals are also available on the HP website under Computers & Solutions - Desktops & Workstations - PC Workstations.


    Discussion Question and answer discussion forum concerning user instructions and resolving problems with the HP Z640 F1M59UT Turnkey Workstation with 32GB RAM, 512GB SSD, - no comments have been made yet - be the first to add a comment

    Post new comment/question/response regarding the HP Z640 F1M59UT Turnkey Workstation with 32GB RAM, 512GB SSD,

    Fields marked with * must be filled out.
    Your name *:
    E-mail :
    Subject *:
    Message text *:
    Enter the code *:
    (spam block)    		 "manual"
    If you would like to receive a response to your comment, don’t forget to include your e-mail address. Your e-mail will not be displayed or otherwise used in any way.



    Can't find what you're looking for? Try Google Search!

    Current discussions
    Most recently discussed products:

    Unknown USB Device (Device Descriptor Request Failed) - Primera LX2000 Color Label Printer 74461
    Posted by: Mark Gisis
    2023-12-01 18:15:01

    Hi, usb port broke so we connected cable directly to internal board connector. I've tried everything in windows 10 software, doesn't work. i'd really appriciate if you guys suggest what to do, tyvm...
    Yamaha RX-A2040 help needed - Yamaha AVENTAGE RX-A2040 9.2 Channel Network AV RX-A2040BL
    Posted by: Kevin
    2023-11-30 13:38:53

    need the values of the following parts on the PSU board. R3502, R3503, q3501 and C3517 Any help will be greatly appreciated as I have not been able to find a service manual...
    HK audio premium service document - HK AUDIO L5115FA 15" Linear 5 Powered Speaker L5115FA
    Posted by: Peter
    2023-11-30 00:11:32

    Hello, I am a technician and need electrical drawings and electronic schematic for HK audio premium PRO 115 FD2 / OR / 15 XD. I am interested in buying it from you if you could provide it to me. Please let me know if you could do it for me and I...
    Backpack Manual - Spigen Klasden 3 Backpack (Gray) SGP11361
    Posted by: Favour Amah
    2023-11-29 14:25:46

    This is for the Spigen Klasden 3 ...
    User manual - Bowens Streamlite 530 Fluorescent Light (117V) BW-3465
    Posted by: Adam
    2023-11-29 10:26:53

    Dzień dobry, jestem pracownikiem Muzeum w Polsce. Posaidamy taką lampę, lecz poszukuję instrukcji obsługii, ponieważ muszę uzupełnić dokumentację biurową. Czy taka instrukcję obsługi Państwo posiadacie ?...

    Uploaded instruction manuals
    Upload a link to an instruction manual for a depicted product here:

    Link format "http://www.link2manual.com/manual.pdf"

    Enter the code: "manual"




    PDF-MANUALS.com - Community administered database of instructions for use and PDF User manual
    sitemap.txt alx
