User manual HuddleCamHD HuddleCam Air Full HD 20x Indoor USB 3.0 HCA20X-SV

Operating instructions and pdf manual for use - HuddleCamHD HuddleCam Air Full HD 20x Indoor USB 3.0 HCA20X-SV User manual, User manual HuddleCamHD HuddleCam Air Full HD 20x Indoor USB 3.0 HCA20X-SV, HuddleCamHD, HuddleCam, Air, Full, HD, 20x, Indo

User manual for HuddleCamHD HuddleCam Air Full HD 20x Indoor USB 3.0 HCA20X-SV

HuddleCamHD HuddleCam Air Full HD 20x Indoor USB 3.0 HCA20X-SV
  • Manufacturer: HuddleCamHD
  • Basic description and contents of package
  • Product classification: A/V Presentation - Video Conferencing - Video Conferencing Cameras
  • Safety instructions
  • Startup and operation of the video conferencing cameras
  • Tips for setting up your HuddleCamHD
  • Settings and expert assistance
  • Contact HuddleCamHD service
  • Troubleshooting
  • Warranty information

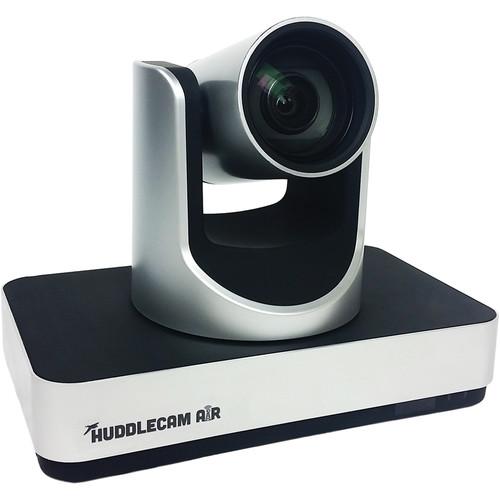

HuddleCamHD HuddleCam Air Full HD 20x Indoor USB 3.0 HCA20X-SV HuddleCamHD HuddleCam Air Full HD 20x Indoor USB 3.0 HCA20X-SV
Click to enlarge image
We recommend checking out our discussion threads on the HuddleCamHD HuddleCam Air Full HD 20x Indoor USB 3.0 HCA20X-SV, which address similar problems with connecting and setting up Video Conferencing Cameras HuddleCamHD.


User manual for the HuddleCamHD HuddleCam Air Full HD 20x Indoor USB 3.0 HCA20X-SV

The user manual for the HuddleCamHD HuddleCam Air Full HD 20x Indoor USB 3.0 HCA20X-SV provides necessary instructions for the proper use of the product A/V Presentation - Video Conferencing - Video Conferencing Cameras.

The HuddleCam Air Full HD 20x Indoor USB 3.0 PTZ Conferencing Camera from HuddleCamHD incorporates a 1/2.7” CMOS sensor that captures clear images up to 1080p resolution at a full frame rate of 30 fps. The camera is suited for medium to large sized meeting rooms and offers USB 3.0 connection. This camera is capable of maintaining a wireless connection with less than 0.01 second latency.
If you own a HuddleCamHD video conferencing cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the HuddleCamHD HuddleCam Air Full HD 20x Indoor USB 3.0 HCA20X-SV in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the HuddleCamHD HuddleCam Air Full HD 20x Indoor USB 3.0 HCA20X-SV:
Specifications
    Camera
    Image Sensor 1/2.7" CMOS, 2.07 MP CMOS sensor
    Frame Rate 30 fps, 1920 x 1080p / 60 fps, 1280 x 720p
    Zoom 20x optical zoom, 16x digital zoom
    Lens f4.7 to 84.6 mm, F1.8 to 2.8
    Field of View Horizontal: 3.2 to 55.2°
    Vertical: 2.4 to 42.1°
    Scanning Mode Progressive
    Shutter Speed 1/25 to 1/10,000 sec
    Minimum Illumination 0.5 lux at F1.8 (AGC On)
    White Balance Auto, Indoor, Outdoor, One-Push, Manual
    Backlight Backlight compensation supported
    Digital Noise Reduction 2D & 3D Digital Noise Reduction
    Video S/N Ratio ≥55 dB
    Number of Presets 128
    Preset Accuracy 0.1°
    Pan/Tilt
    Pan Movement ±170°
    Tilt Rotation - 30°, -90°
    Wireless Transmitter
    Range 80.0' (24.4 m) open space (Clear line of sight)
    Wireless Frequency 5.15 to 5.25 GHz, 5.25 to 5.35 GHz, 5.47 to 5.72 GHz, 5.72 to 5.8 GHz
    Frequency Stability ± 10 PPM
    Bandwidth 20 / 40 MHz
    Receiving Sensitivity ≤ - 75 dBm
    Transmission Power 13 ± 2 dBm
    Antenna Internal
    Wireless Receiver
    Range 80.0' (24.4 m) open space (Clear line of sight)
    Wireless Frequency 5.15 to 5.25 GHz, 5.25 to 5.35 GHz, 5.47 to 5.72 GHz, 5.72 to 5.8 GHz
    Input Voltage 5 VDC
    Current Consumption 2 A (maximum)
    Power Consumption 10 W
    Interface
    Network Interface Camera: 1 x RJ45: 10M/100M Ethernet Port
    Receiver: USB 3.0, USB 2.0 (limited frame rates & resolution)
    Connector Receiver: USB 3.0 B-Type Connector
    Communication Interface 1 x RS-232 IN: 8-pin Min-DIN, maximum 98.4' (30.0 m)
    1 x RS-485: 2-pin port, maximum 4921.3' (1500 m)
    Control Protocol VISCA/Pelco-D/Pelco-P
    Power Supply Camera: JEITA type (In 12 VDC)
    Receiver: 0.2" (5.5 mm) (In 5 VDC)
    Electrical
    Power Supply 12 VDC 2A
    Input Voltage 12 VDC (10.5 to 14 VDC)
    Input Power 17 W (maximum)
    General
    Temperature Operating: 23 to 104°F (-5 to 40°C)
    Storage: -4 to 140°F (-20 to 60°C)
    Compatibility Windows 7 & 8, Mac OS X, Adobe Connect, BlueJeans, Cisco Jabber, Cisco WebEx, Easy Meeting, Facetime, Fuzebox, Google Hangout, GoToMeeting, Lifesize, Microsoft Lync, Polycom RealPresence, Radavision, Spontania, Skype, urboMeeting.US, Vidyo, Vsee, Zoom.US
    Dimensions (W x H x D) Camera: 9.4 x 5.5 x 6.2" (23.9 x 14.0 x 15.7 cm)
    Receiver: 3.0 x 10.0 x 1.2" (7.6 x 25.4 x 3.1 cm)
    Weight Camera: 0.7 lb (0.3 kg)
    Receiver: 5.5 lb (2.5 kg)
    Packaging Info
    Package Weight 7.6 lb
    Box Dimensions (LxWxH) 11.8 x 9.9 x 9.6"
    The user manual for the HuddleCamHD HuddleCam Air Full HD 20x Indoor USB 3.0 HCA20X-SV can be downloaded in .pdf format if it did not come with your new video conferencing cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other HuddleCamHD users keep a unique electronic library for HuddleCamHD video conferencing camerass, where you can use our link to download the user manual for the HuddleCamHD HuddleCam Air Full HD 20x Indoor USB 3.0 HCA20X-SV.

    The user manual lists all of the functions of the HuddleCamHD HuddleCam Air Full HD 20x Indoor USB 3.0 HCA20X-SV, all the basic and advanced features and tells you how to use the video conferencing cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from HuddleCamHD service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the HuddleCamHD HuddleCam Air Full HD 20x Indoor USB 3.0 HCA20X-SV. User manuals are also available on the HuddleCamHD website under A/V Presentation - Video Conferencing - Video Conferencing Cameras.
