User manual for the Humminbird 541 Fishfinder 409700-1
The user manual for the Humminbird 541 Fishfinder 409700-1 provides
necessary instructions for the proper use of the product Optics - Outdoor Gear - Fishing & Marine Technology.

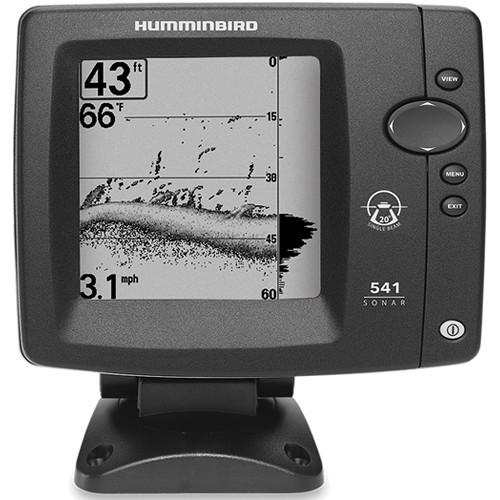

Identify fish-holding structures beneath your boat with the 12-level grayscale 5" LCD screen of the Humminbird 541 Fishfinder using its transom mounted transducer. Featuring 4000W of peak to peak power, this fishfinder can give depth readings of up to 1500'. DualBeam sonar allows you to toggle between wide views and more detailed narrow representations of the waters below. A built-in temperature sensor keeps you abreast of how warm the water is so you can gauge how active the fish may be. A quick disconnect system mounts on any flat surface, and allows you to easily remove the display from your boat for protection from the elements.
If you own a Humminbird fishing & marine technology and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Humminbird 541 Fishfinder 409700-1 in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Humminbird 541 Fishfinder 409700-1:
Specifications
Display Size (Diagonal)
5" / 12.7 cm
Display Size (HxV)
240 X 240
Display Type
12-Level Grayscale
Sonar
Sonar Standard: DualBeam Sonar Coverage: 20 and 60° to -10 db Sonar Frequency: 200/83 kHz
Depth
1500' / 457.2 m
Power Output
Peak to Peak: 4000W RMS: 500W
Cable Length
Transducer Cable: 20' / 6.1 m
Transducer Mount
Transom
Power Draw
200 mA
Power Input
10 to 20 VDC
Dimension
6.75 x 7 x 4" / 17.1 x 17.8 x 10.2 cm
Weight
Not Specified by the Manufacturer
The user manual for the Humminbird 541 Fishfinder 409700-1 can be downloaded in .pdf
format if it did not come with your new fishing & marine technology, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Humminbird users keep a unique electronic library
for Humminbird fishing & marine technologys,
where you can use our link to download the user manual for the Humminbird 541 Fishfinder 409700-1.
The user manual lists all of the functions of the Humminbird 541 Fishfinder 409700-1,
all the basic and advanced features and tells you how to use the fishing & marine technology.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Humminbird service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Humminbird 541 Fishfinder 409700-1. User manuals are also
available on the Humminbird website under Optics - Outdoor Gear - Fishing & Marine Technology.
