User manual for the Humminbird 959ci HD DI Combo Fishfinder 409180-1
The user manual for the Humminbird 959ci HD DI Combo Fishfinder 409180-1 provides
necessary instructions for the proper use of the product Optics - Outdoor Gear - Fishing & Marine Technology.

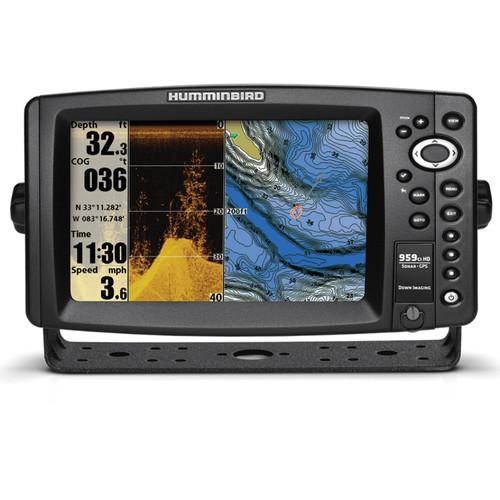

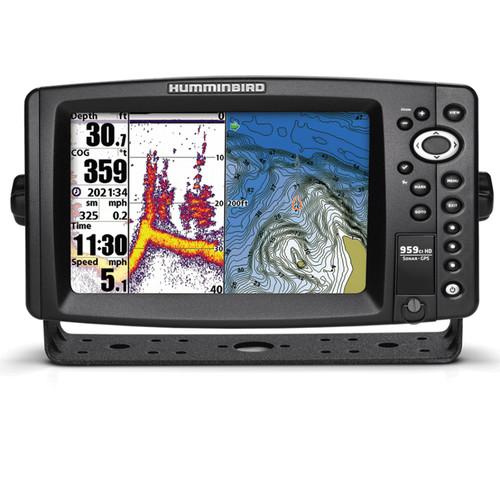

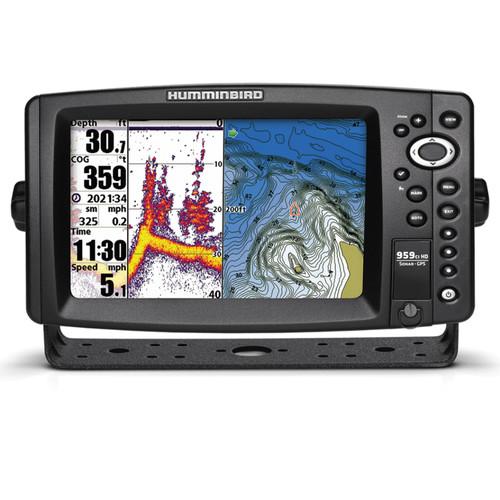

Find your dream fishing spots with the large 8" LCD found on the Humminbird 959ci HD DI Combo Fishfinder, featuring DualBeam PLUS Sonar with SwitchFire for versatile coverage and depth as well as Down Imaging Sonar for a more precise view of what's below you with high-frequency sound waves. These systems are rated to work at depths up to 350' (DI) & 600' (2D) and has a peak to peak power output of 4000W. Also, they can be setup with multiple coverage angles of 16, 28, 45, and 75° due to the use of the DualBeam PLUS sonar system and the SwitchFire enables users to setup multiple views simultaneously.
Viewing imagery while out in the elements is no issue with the implementation of a 8" LED-backlit color TFT LCD with a resolution of 800 x 480 pixels. Additionally, this unit has a built-in GPS system with chartplotting capabilities and the ContourXD map system.
The 959ci was designed with advanced functionality in mind with AIS technology and HD Radar support, ensuring that in poor visibility users will still be able to track other boats and objects that are nearby. Dual SD card slots are available for advanced cartography, saving screenshots, sonar recordings, and waypoints as well as updating the internal software. For protection in all elements and just the nature of being near water, this device is IP67-rated from waterproofing down to 3.3' for 30 minutes.
For connectivity, this unit supports NMEA 2000 for viewing boat performance, weather, and more in addition to a 5-port Ethernet switch to link together multiple head units or share transducers. i-Pilot Link is also supported for enabling select Minn Kota Terrova and PowerDrive V2 motors to communicate with the 959ci fishfinder.
|
If you own a Humminbird fishing & marine technology and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Humminbird 959ci HD DI Combo Fishfinder 409180-1 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Humminbird 959ci HD DI Combo Fishfinder 409180-1:
| Technology | DualBeam PLUS with SwitchFire
Optional QuadraBeam PLUS is available | | Type | 2D Sonar & Down Imaging Sonar | | Coverage | 16, 28, 45, and 75° at -10 dB | | Frequency | 455/800/200/455 kHz | | Target Separation | 2.5" (6.4 cm) | | Power Output | Peak to Peak: 4000 W
RMS: 500 W | | Maximum Depth | Down Imaging: 350' (107 m)
2D Sonar: 600' (183 m) | | Mount | Gimbal or optional in-dash | | Transducer | XNT 9 DI T | | Cable Length | 20' (6.1 m) | | Transducer Mount | Transom | | Temperature Sensor | Yes, on transducer | | Advanced Features | Included: Precision GPS, SwitchFire Sonar, Screen Snap Shot, Sonar Recording, upgradable internal software, split screen zoom, split screen bottom lock, 3D char view, large digits view, wide/narrow cone split screen, custom view selections, custom digital readout, view preset keys, temperature graph, temperature alarm, freeze frame, instant image update, mark structure on sonar, selective fish ID+, real time sonar, triplog, X-press menu system
Supported: Humminbird mapping, Navionics Gold/HotMaps, Navionics Platinum+, Platinum capable, 360 imaging, i-Pilot link, HD Radar, NMEA 2000, 5-port expansion module, heading sensor GPS, PC connect, external GPS receiver, AIS compatibility | | GPS Support | Built-in | | GPS Tracking | Yes | | GPS Logger | Yes | | Stored Waypoints | 2750 | | Stored Routes | 45 | | Tracks/Points | 50/20000 | | Card Slots | 2 x SD card | | Connections | NMEA 2000
5-port Ethernet switch | | IP Rating | IP67 waterproof/submersible to 3.3' (1 m) for 30 minutes and dust tight | | LCD Screen | 8" (20.3 cm) 800 x 480 LED-backlit color TFT LCD | | Display Colors | 65000 colors | | Power Requirements | 10-20 VDC, 1.0 A | | Power Consumption | 780 mA | | Dimensions | 11.25 x 6.75 x 4.25" (28.6 x 17.1 x 10.8 cm) with gimbal mount
10.75 x 6.00 x 2.50" (27.3 x 15.2 x 6.4 cm) with optional in-dash mount | |
The user manual for the Humminbird 959ci HD DI Combo Fishfinder 409180-1 can be downloaded in .pdf
format if it did not come with your new fishing & marine technology, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Humminbird users keep a unique electronic library
for Humminbird fishing & marine technologys,
where you can use our link to download the user manual for the Humminbird 959ci HD DI Combo Fishfinder 409180-1.
The user manual lists all of the functions of the Humminbird 959ci HD DI Combo Fishfinder 409180-1,
all the basic and advanced features and tells you how to use the fishing & marine technology.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Humminbird service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Humminbird 959ci HD DI Combo Fishfinder 409180-1. User manuals are also
available on the Humminbird website under Optics - Outdoor Gear - Fishing & Marine Technology.
