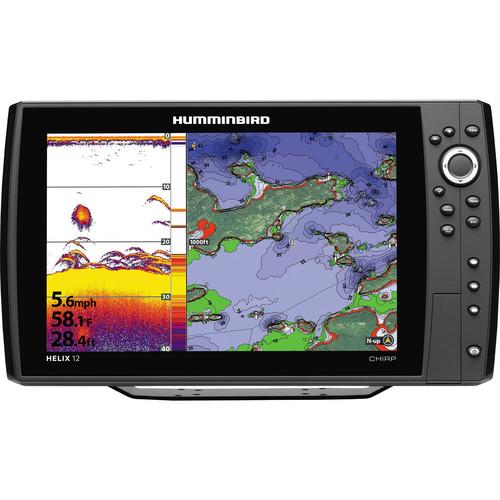

Let the CHIRP technology in the Helix 12 SI CHIRP GPS Fishfinder from Humminbird provide you with higher definition images than a single frequency sonar can produce. Unlike conventional units, the transducer in this fishfinder sends out multiple frequencies at once, forming a higher resolution image with better target separation. You can even add 360° imaging with optional equipment. The 12.1" LED-backlit display also has a built-in GPS receiver to accurately display your position on the water, as well as mark productive fishing spots.

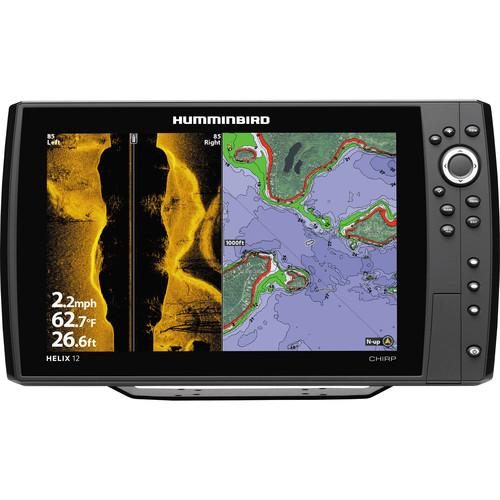

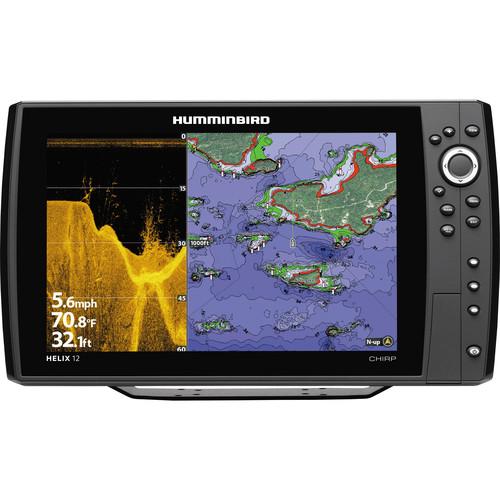

Side imaging gives you a 3D picture 150' out to the side of your vessel, while down imaging gives you a fish-eye view of the world directly below your boat SwitchFire technology allows you to choose clear or max mode to filter out noise or show more detail using an advanced algorithm that filters out interference. DualBeam Plus lets you choose either a wide coverage area, or a narrower sonar cone for more detail. This system has an RMS power output of 500W, and a peak to peak output of 4000W, which allows the unit to provide an accurate representation of the bottom down to 150' (SI/DI), 1500' (2D).

The internal GPS utilizes ContourXD maps. With over 3,000 U.S. lake maps in the database, you will be able to find a lake close to any location you might want to wet a line. These maps feature depth contour lines, so you can find all the drops, bumps and channels that may be holding fish. Also included are U.S. lights and navigational markers, as well as major roads and interstates. You can also create your own maps for uncharted waters using the AutoChart Live feature; simply drive around and let the software create a map for you.

This unit also features a high level of connectivity. Monitor engine data using NMEA 0183 and NMEA 2000 marine networks. An optional Bluetooth remote and dongle can give you control of the unit from almost anywhere on your boat. Dual card slots allow you to access existing data and store your own. Using the optional Ethernet adapter you can add up to five additional devices including IP cameras, and share data with other devices. Adding the i-Pilot Link will let you control select Minn Kota trolling motors. You can also add Automatic Identification System (AIS) technology that allows you to see, and be seen, by other vessels equipped with the same technology

If you own a Humminbird fishing & marine technology and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Humminbird Helix 12 SI CHIRP GPS Fishfinder 410030-1 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Humminbird Helix 12 SI CHIRP GPS Fishfinder 410030-1:
Specifications
Display Size (Diagonal) 12.1" / 30.7 cm
Display Type Color TFT
Display Colors 65000
Sonar Sonar Standard: Broadband CHIRP / Side Imaging / Down Imaging / DualBeam PLUS
Sonar Coverage: 20, 60, (2) 86 & (2) 55° @ -10db (Total of 180°)
Sonar Frequency: 200/83/455/800 kHz
Depth 150' (SI/DI), 1500' (2D)
Power Output Peak to Peak 4000W
RMS 500W
Cable Length Transducer cable 20' / 6.1 m
Transducer Mount Transom
Temperature Sensor Yes, on transducer
GPS Support Yes
GPS Logger Yes
Stored Waypoints 2500
Stored Routes 47
Tracks/Points 50/20000
Card Slot 2 x SD
Power Draw 1.75 Amps
Power Input 10 to 20 VDC
Dimensions 14.9 x 8.9 x 4.3" / 37.8 x 22.6 x 10.9 cm
Weight Not specified by manufacturer
The user manual for the Humminbird Helix 12 SI CHIRP GPS Fishfinder 410030-1 can be downloaded in .pdf format if it did not come with your new fishing & marine technology, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Humminbird users keep a unique electronic library for Humminbird fishing & marine technologys, where you can use our link to download the user manual for the Humminbird Helix 12 SI CHIRP GPS Fishfinder 410030-1.

The user manual lists all of the functions of the Humminbird Helix 12 SI CHIRP GPS Fishfinder 410030-1, all the basic and advanced features and tells you how to use the fishing & marine technology. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Humminbird service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Humminbird Helix 12 SI CHIRP GPS Fishfinder 410030-1. User manuals are also available on the Humminbird website under Optics - Outdoor Gear - Fishing & Marine Technology.
