User manual Ianiro Varibeam and Gulliver 3-Light LED Daylight/Tungsten Kit

Operating instructions and pdf manual for use - Ianiro Varibeam and Gulliver 3-Light LED Daylight/Tungsten Kit User manual, User manual Ianiro Varibeam and Gulliver 3-Light LED Daylight/Tungsten Kit, Ianiro, Varibeam, Gulliver, 3-Light, LED, Daylig


User manual for Ianiro Varibeam and Gulliver 3-Light LED Daylight/Tungsten Kit

Ianiro Varibeam and Gulliver 3-Light LED Daylight/Tungsten Kit
  • Manufacturer: Ianiro
  • Basic description and contents of package
  • Product classification: Lighting & Studio - Continuous Lighting - LED Light Kits
  • Safety instructions
  • Startup and operation of the led light kits
  • Tips for setting up your Ianiro
  • Settings and expert assistance
  • Contact Ianiro service
  • Troubleshooting
  • Warranty information
Ianiro Varibeam and Gulliver 3-Light LED Daylight/Tungsten Kit Ianiro Varibeam and Gulliver 3-Light LED Daylight/Tungsten Kit Ianiro Varibeam and Gulliver 3-Light LED Daylight/Tungsten Kit Ianiro Varibeam and Gulliver 3-Light LED Daylight/Tungsten Kit Ianiro Varibeam and Gulliver 3-Light LED Daylight/Tungsten Kit Ianiro Varibeam and Gulliver 3-Light LED Daylight/Tungsten Kit
Click to enlarge image

We recommend checking out our discussion threads on the Ianiro Varibeam and Gulliver 3-Light LED Daylight/Tungsten Kit, which address similar problems with connecting and setting up LED Light Kits Ianiro.



User manual for the Ianiro Varibeam and Gulliver 3-Light LED Daylight/Tungsten Kit

The user manual for the Ianiro Varibeam and Gulliver 3-Light LED Daylight/Tungsten Kit provides necessary instructions for the proper use of the product Lighting & Studio - Continuous Lighting - LED Light Kits.

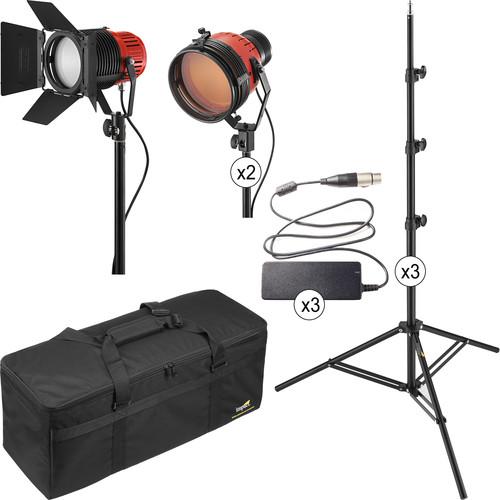

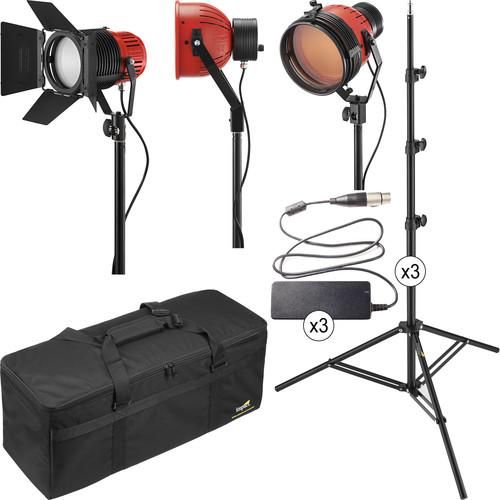

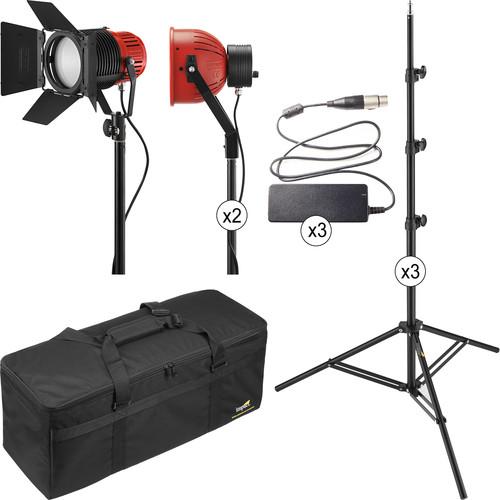

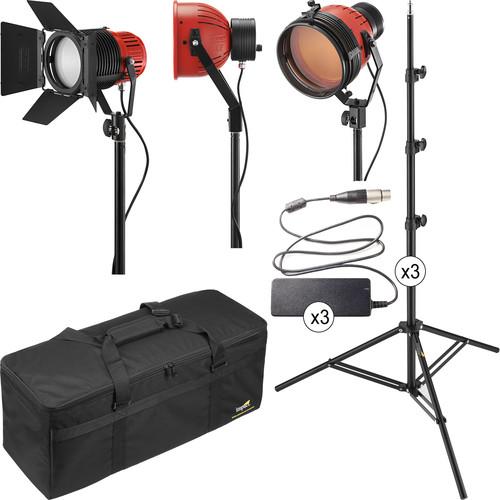

The Varibeam and Gulliver 3-Light LED Daylight/Tungsten Kit was put together by B&H for image makers looking for light weight and studio quality light on the road. The kit is comprised of 1x Varibeam HC Daylight LED head, 1x Varibeam Tungsten Head and 1x Gulliver HC Daylight LED head. Each light comes with an AC adapter, 4-way barndoors, and an air-cushioned light stand. A padded case is included to store and transport it all.
If you own a Ianiro led light kits and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Ianiro Varibeam and Gulliver 3-Light LED Daylight/Tungsten Kit in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Ianiro Varibeam and Gulliver 3-Light LED Daylight/Tungsten Kit:
Specifications
  • Ianiro 7010 Varibeam HC Spectrum 30W Daylight LED Fixture
    Rating 30W
    CRI 95
    Color Range 5600K
    Beam Angle 70°
    Dimming 0-100%
    Cable 5' (1.5 m) XLR4 power cable
    Operating Voltage 12-16 VDC
    Mount Yoke with 5/8" (16 mm) spigot
    Dimensions 10.6 x 8.9 x 7.0" (27.0 x 22.7 x 17.8 cm)
    Weight 3.5 lb (1.6 kg) with cable
    Packaging Info
    Box Dimensions (LxWxH) 12.3 x 8.8 x 8.7"
  • Ianiro 7010 Varibeam HC Spectrum 30W Tungsten LED Fixture
    Rating 30W
    CRI 95
    Color Range 3200K
    Beam Angle 70°
    Dimming 0-100%
    Cable 5' (1.5 m) XLR4 power cable
    Operating Voltage 12-16 VDC
    Mount Yoke with 5/8" (16 mm) spigot
    Dimensions 10.6 x 8.9 x 7.0" (27.0 x 22.7 x 17.8 cm)
    Weight 3.5 lb (1.6 kg) with cable
    Packaging Info
    Box Dimensions (LxWxH) 12.2 x 8.7 x 8.6"
  • Ianiro 7030 Gulliver HC Spectrum 15W Daylight LED Fixture
    Rating 15W
    CRI 95
    Color Range 5600K
    Beam Angle 40°
    Dimming 0-100%
    Cable 5' (1.5 m) XLR4 power cable
    Operating Voltage 12-16 VDC
    Mount Yoke with 5/8" (16 mm) spigot
    Dimensions 8.3 x 5.7 x 6.6" (21.0 x 14.5 x 16.7 cm)
    Weight 2.2 lb (1 kg)
    Packaging Info
    Box Dimensions (LxWxH) 9.4 x 8.7 x 7.6"
  • Impact Light Kit Bag (34 x 13.5 x 12")
    Material Soft, padded, water-resistant nylon exterior
    Type of Closure Dual zippers that will accept user-supplied lock
    Exterior Dimensions 34.5 x 14.0 x 13.0" (87.6 x 35.6 x 33.0 cm)
    Interior Dimensions 34.0 x 13.5 x 12.0" (86.4 x 34.3 x 30.5 cm)
    Carrying/Transport Options Overlapping, 2.0" (5.1 cm) wide dual carry handles that readily convert to shoulder straps
    Weight 5.75 lb (2.6 kg)
    Packaging Info
    Box Dimensions (LxWxH) 35.0 x 14.0 x 12.5"
  • 3 x Impact Air-cushioned Light Stand (Black, 8')
    Minimum Height 26.75 in (68 cm)
    Maximum Height 8 ft (2.4 M)
    Closed Length 27 in (68.5 cm)
    Footprint Diameter 3 ft (91.4 cm)
    Leg Tip 20mm
    Weight 2.4 lbs (1 kg)
    Maximum Load 7.5 lb (3.4 kg)
    Attachment Size 5/8 in stud with 1/4"-20 in threaded tip
    Accepts Wheels Yes
    Air Cushioned Yes
    Packaging Info
    Box Dimensions (LxWxH) 27.0 x 3.8 x 3.5"
  • 3 x Ianiro Universal 4-Pin XLR Power Supply (100-240 VAC)
    Connector 4-pin XLR
    Power 100-240 VAC, 50/60 Hz
    15 VDC, 2800 mA, 1.5 A max
    Cable Length 3.8' (1.15 m) outlet to power supply
    3.8' (1.15 m) power supply to head
    7.6' (2.3 m) total
    Packaging Info
    Box Dimensions (LxWxH) 7.6 x 3.1 x 2.5"
The user manual for the Ianiro Varibeam and Gulliver 3-Light LED Daylight/Tungsten Kit can be downloaded in .pdf format if it did not come with your new led light kits, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Ianiro users keep a unique electronic library for Ianiro led light kitss, where you can use our link to download the user manual for the Ianiro Varibeam and Gulliver 3-Light LED Daylight/Tungsten Kit.

The user manual lists all of the functions of the Ianiro Varibeam and Gulliver 3-Light LED Daylight/Tungsten Kit, all the basic and advanced features and tells you how to use the led light kits. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Ianiro service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Ianiro Varibeam and Gulliver 3-Light LED Daylight/Tungsten Kit. User manuals are also available on the Ianiro website under Lighting & Studio - Continuous Lighting - LED Light Kits.
