User manual for the IDX System Technology X10-Lite Hi-Performance LED X10-LITE
The user manual for the IDX System Technology X10-Lite Hi-Performance LED X10-LITE provides
necessary instructions for the proper use of the product Professional Video - Lighting - On Camera Lights.

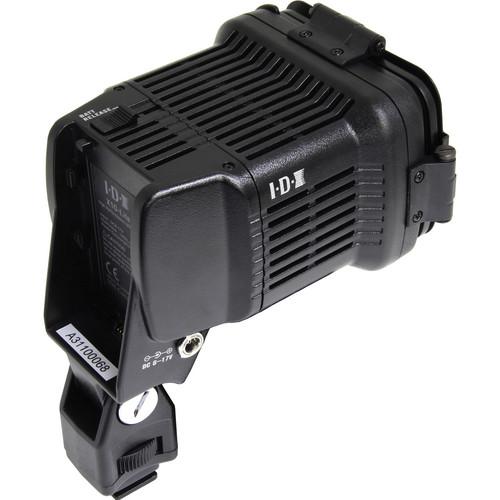

The IDX X10-Lite Hi-Performance LED On-Camera Light mounts to a standard accessory shoe on your camera, and provides a powerful beam that can be dimmed from 100 to 0% without affecting the beam quality. The LEDs in the unit are rated to last up to 50,000 hours, and the unit powers from available IDX SSL-JVC50 type batteries (not included). You can also power the unit from a 6 to 17 volt DC source using the included D-Tap connector.
A sealed, scratch resistant lens protects the LEDs, and they deliver 1450 lux at 1m, with a 90° beam spread. This allows you to light a relatively large area from an on-camera light. For a tighter beam, you can flip up the bottom barndoor, which will adjust the beam spread to 45°, giving you more control, and less spill. The LEDs produce light with a color temperature of 4500K, which is roughly halfway between daylight and tungsten values. The barndoors incorporate a color correction filter that you can fold in front of the light to convert the color temperature from 4500K to 3200K.
|
If you own a IDX System Technology on camera lights and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the IDX System Technology X10-Lite Hi-Performance LED X10-LITE in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the IDX System Technology X10-Lite Hi-Performance LED X10-LITE:
| Lamp Type | 10 x LED | | Color Temperature | 4500K
3200K (with included filter) | | Brightness | 1450 lx @ 1 m | | Beam Angle | Standard: 90°
Spotlight: 45° | | Dimmer Response | 100 to 0% | | Mount Type | Cold Shoe | | Input Voltage | 6.0 to 17.0 VDC | | Power Consumption | 16W Max. | | Power Connector | D-Tap
IDX SSL-JVC50 type | | Dimensions (WxDxH) | 4.25 x 5.07 x 5.90" (108 x 129 x 150 mm) | | Weight | Approx. 1.03 lb (470 g) | | Package Weight | 1.95 lb | | Box Dimensions (LxWxH) | 9.1 x 6.1 x 5.2" | |
The user manual for the IDX System Technology X10-Lite Hi-Performance LED X10-LITE can be downloaded in .pdf
format if it did not come with your new on camera lights, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other IDX System Technology users keep a unique electronic library
for IDX System Technology on camera lightss,
where you can use our link to download the user manual for the IDX System Technology X10-Lite Hi-Performance LED X10-LITE.
The user manual lists all of the functions of the IDX System Technology X10-Lite Hi-Performance LED X10-LITE,
all the basic and advanced features and tells you how to use the on camera lights.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from IDX System Technology service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the IDX System Technology X10-Lite Hi-Performance LED X10-LITE. User manuals are also
available on the IDX System Technology website under Professional Video - Lighting - On Camera Lights.
