User manual for the ikan D12-FK-V 11.6" 3G-SDI Full HD Monitor D12-FK-V

The user manual for the ikan D12-FK-V 11.6" 3G-SDI Full HD Monitor D12-FK-V provides necessary instructions for the proper use of the product Professional Video - Monitors - Production Monitors.

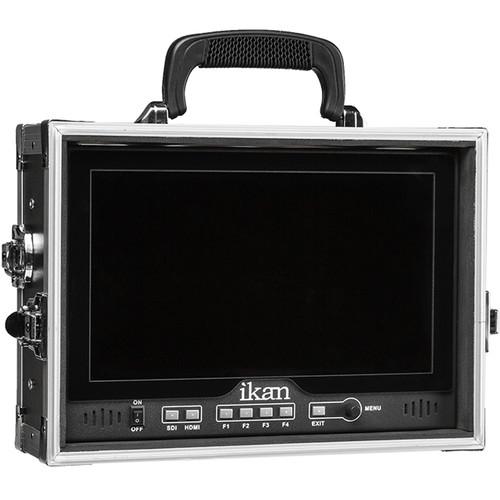

Integrated within a protective hard case, Ikan's D12-FK-V 11.6" 3G-SDI Full HD Monitor with V-Mount Plate and Integrated Hard Case includes an Ikan D12 monitor, which features a native 1920 x 1080 IPS LCD panel and loopthrough SD/HD/3G-SDI, and HDMI inputs and outputs. Differing from the standard D12 monitor the D12-FK-V features a protective hard screen for the front of the monitor, an attached V-mount battery plate, and an attached articulating stand mount. The hard case features a removable front cover, which houses the sunhood, and rear cover making for fast set up and wrap. The monitor displays SD & HD video, autosensing and selecting between NTSC, PAL, and even SECAM color standards, using either SDI or HDMI inputs. The inputs/outputs do not cross convert signals, but they are loopthrough, which allows you to use this monitor in the signal path of either an SDI or HDMI system.



The monitor incorporates a variety of image display tools including; False Color, Peaking, Clip Guides & DSLR Scaling. On-screen Tally indication allows you to use this as a monitor for a studio camera or for monitoring in a multi-camera shoot. The monitor is powered from the included AC adapter via a threaded COAX power connector, or you can power it using the built-in 4-pin mini XLR. It accepts a voltage range from 7 to 12 volts DC, allowing you to use a variety of batteries to power the monitor in the field.
If you own a ikan production monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the ikan D12-FK-V 11.6" 3G-SDI Full HD Monitor D12-FK-V in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the ikan D12-FK-V 11.6" 3G-SDI Full HD Monitor D12-FK-V:
Specifications
LCD 11.6" / 29.5 cm
IPS
Video System PAL / NTSC / SECAM (Auto-Detected)
Resolution 1920 x 1080
Viewing Angle H: 178°
V: 178°
Supported Resolution 3G-SDI
1920 x 1080p 50, 59.94, 60

HD-SDI
Brightness 350 Nit
Contrast Ratio 700:1
Response Time 25 ms
Pixel Pitch 0.00526 x 0.00526" / 0.1335 x 0.1335 mm
Input and Output Connectors Input
SD/HD/3G - SDI: 1 x BNC
HDMI: 1 x Full size

Output
SD/HD/3G - SDI: 1 x BNC
HDMI: 1 x Full size
Headphone: 1 x 3.5mm Mini Jack

Tally
1 x RJ-45
Speaker 2 x 2W
Power Requirements 7 to 24 VDC
Power Connector 1 x mini 4-pin XLR
1 x Threaded COAX
1 x V-mount battery plate
Power Consumption 16W
Dimensions (WxHxD) 11.7 x 9.2 x 0.9" / 29.7 x 23.4 x 2.3 cm
Weight 5 lb / 2.27 kg
Packaging Info
Package Weight 17.45 lb
Box Dimensions (LxWxH) 15.1 x 11.6 x 11.4"
