User manual ikan D5w 5.6" 3G-SDI Field Monitor with Waveform, D5W-DK-C

Operating instructions and pdf manual for use - ikan D5w 5.6" 3G-SDI Field Monitor with Waveform, D5W-DK-C User manual, User manual ikan D5w 5.6" 3G-SDI Field Monitor with Waveform, D5W-DK-C, ikan, D5w, 5.6, 3G-SDI, Field, Monitor, with, Waveform,


User manual for ikan D5w 5.6" 3G-SDI Field Monitor with Waveform, D5W-DK-C

ikan D5w 5.6
  • Manufacturer: ikan
  • Basic description and contents of package
  • Product classification: Professional Video - Monitors - On Camera Monitors
  • Safety instructions
  • Startup and operation of the on camera monitors
  • Tips for setting up your ikan
  • Settings and expert assistance
  • Contact ikan service
  • Troubleshooting
  • Warranty information
ikan D5w 5.6 ikan D5w 5.6 ikan D5w 5.6 ikan D5w 5.6 ikan D5w 5.6
Click to enlarge image

We recommend checking out our discussion threads on the ikan D5w 5.6" 3G-SDI Field Monitor with Waveform, D5W-DK-C, which address similar problems with connecting and setting up On Camera Monitors ikan.



User manual for the ikan D5w 5.6" 3G-SDI Field Monitor with Waveform, D5W-DK-C

The user manual for the ikan D5w 5.6" 3G-SDI Field Monitor with Waveform, D5W-DK-C provides necessary instructions for the proper use of the product Professional Video - Monitors - On Camera Monitors.

The ikan D5w 5.6" Camera Monitor with HD LCD Panel and Waveform features a 5.6" HD IPS LCD screen with a resolution of 1280 x 800 pixels, 300 NIT brightness, and a 400:1 contrast ratio for a crisp image. It comes equipped with an interchangeable Canon 900 type battery plate, one HDMI input, one 3G-SDI in, and one loop-through 3G-SDI output. The monitor is lightweight at just over half a pound and features a rubberized body with four 1/4"-20 mounting holes (one on each side of the monitor) allowing you to mount it in almost any orientation you may need.

The D5w features built-in advanced display functions that spare you from having to carry additional signal display equipment. The built-in Waveform, Vectorscope and RGB Parade displays provide you an objective look at your video signal. You can toggle through 6 display modes, including quad view which displays the live video signal, Waveform, Vectorscope, and RGB Parade with each taking a quarter of the screen. The monitor also features Peaking, False Color, and Clip Guides, each one a valuable tool that the camera operator can use to check focus and exposure while shooting. The monitor scales the video to fit its screen, and includes a 1:1 pixel mode for checking fine details of your image.

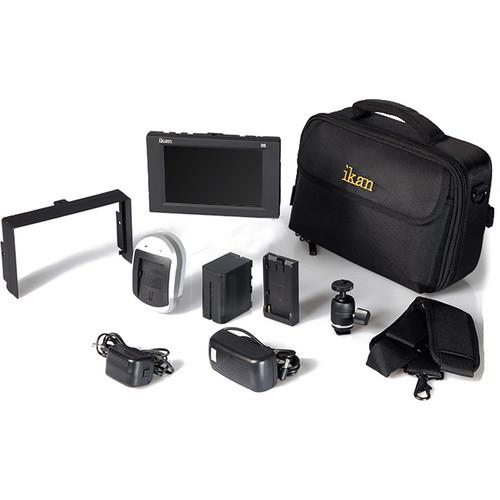

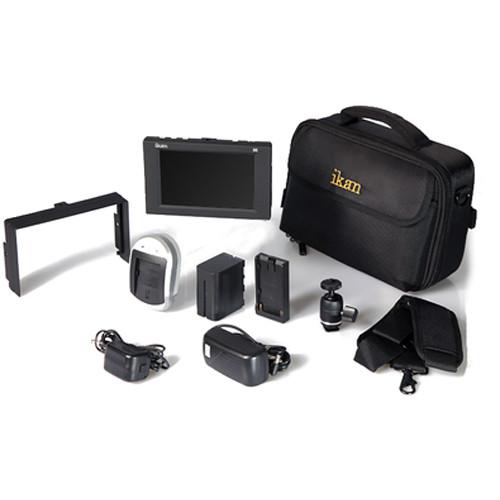

For video inputs, the unit features both an HDMI and a 3G-SDI input. The HDMI input makes it easy to use this monitor when shooting with HDSLR cameras, and the 3G-SDI input allows you to use the monitor with cameras that output 3G-SDI. There is also a loop through 3G-SDI output, which makes it easy to integrate the monitor into an SDI signal path without needing splitters. The built-in headphone jack allows you to monitor audio directly from the D5w. The control buttons are along the edges and back, including a menu scroll wheel and three assignable function keys. The Canon 900 type battery plate is removable and can be swapped out with other available battery plates, if your battery situation changes. This deluxe kit includes a battery, battery charger, sun visor, and soft case to carry it all in.
If you own a ikan on camera monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the ikan D5w 5.6" 3G-SDI Field Monitor with Waveform, D5W-DK-C in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the ikan D5w 5.6" 3G-SDI Field Monitor with Waveform, D5W-DK-C:
Specifications
    Screen Size 5.6" diagonally (14 cm)
    Resolution 1280 x 800
    Brightness 300 NIT
    Contrast Ratio 400:1
    Mounting 4 x 1/4"-20 threaded holes, one on each side of the unit
    Inputs 1x 3G/HD/SD-SDI
    1x HDMI
    Output 1x SD/HD/3G-SDI loop-out
    1x 3.5 mm headphone jack
    Viewing Angle Horizontal: 160°
    Vertical: 160°
    Supported Resolutions 3G-SDI:
    1920 x 1080p @ 50, 59.94, 60 Hz

    HD-SDI:
    1280 x 720p @ 50, 59.94, 60 Hz
    1920 x 1080i @ 50, 59.94, 60 Hz
    1920 x 1080psf @ 23.98, 24, 25, 29.97, 30 Hz
    1920 x 1080p @ 23.97, 24, 25, 29.94, 30 Hz

    SD-SDI:
    720 x 480i @ 60 Hz
    720 x 576i @ 50 Hz

    HDMI:
    720 x 480i/p @ 59.94, 60 Hz
    720 x 576i/@ 50 Hz
    1280 x 720p @ 50, 59.94, 60 Hz
    1920 x 1080i @ 50, 59.94, 60 Hz
    1920 x 1080psf @ 24, 25, 29.97, 30 Hz
    1920 x 1080p @ 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 Hz
    General
    Operating Voltage 6 to 24VDC
    Battery Nikon EN-EL 15 Type
    Dimensions(HxWxD) 4.1 x 6.5 x 0.9" (10.4 x 16.5 x 2.3 cm)
    Weight 0.6 lbs (.27 kg)
    Packaging Info
    Package Weight 3.95 lb
    Box Dimensions (LxWxH) 11.1 x 8.5 x 4.8"
    Item Demo
    Common Software Features
    Advanced Software Features
    The user manual for the ikan D5w 5.6" 3G-SDI Field Monitor with Waveform, D5W-DK-C can be downloaded in .pdf format if it did not come with your new on camera monitors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other ikan users keep a unique electronic library for ikan on camera monitorss, where you can use our link to download the user manual for the ikan D5w 5.6" 3G-SDI Field Monitor with Waveform, D5W-DK-C.

    The user manual lists all of the functions of the ikan D5w 5.6" 3G-SDI Field Monitor with Waveform, D5W-DK-C, all the basic and advanced features and tells you how to use the on camera monitors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from ikan service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the ikan D5w 5.6" 3G-SDI Field Monitor with Waveform, D5W-DK-C. User manuals are also available on the ikan website under Professional Video - Monitors - On Camera Monitors.
