User manual for the Iluminar IL-PoE35 Series Single Port High Power / PoE IL-POE35NA
The user manual for the Iluminar IL-PoE35 Series Single Port High Power / PoE IL-POE35NA provides
necessary instructions for the proper use of the product Surveillance - Surveillance Video - Wired Networking - Power over Ethernet (PoE).

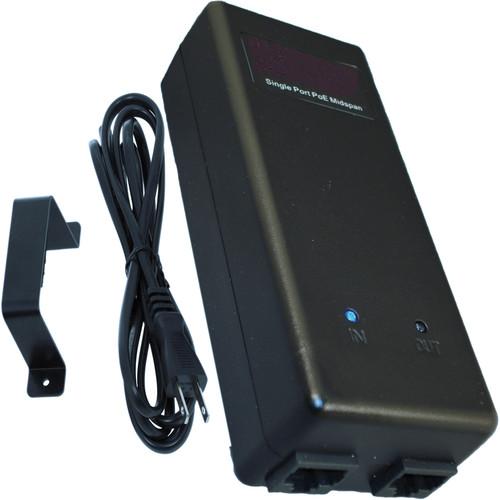

The IL-PoE35 Series Single Port High Power / PoE Plus Midspan Injector from Iluminar supports powering IP end devices such as PoE powered illuminators over an Ethernet cable. It adds up to 35W of continuous power at 48 VDC to unused (non-data) wires in a standard CAT5/5e/6 Ethernet cable. It delivers both data and power over a single Ethernet cable to a PoE-enabled end device that is designed to receive both data and power through its RJ45 connector. The second RJ45 port of the injector passes only data through the Ethernet switch. The maximum supported cable distance from the Ethernet switch to the end IP device is 328' (100m). This midspan injector includes a power cord with a North American type plug.
|
If you own a Iluminar power over ethernet (poe) and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Iluminar IL-PoE35 Series Single Port High Power / PoE IL-POE35NA in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Iluminar IL-PoE35 Series Single Port High Power / PoE IL-POE35NA:
| Power Cord | Removable IEC320 inlet 2-pin C8 cord with North American plug | | Power Supply | Single, internal | | Voltage Range | Range: 90 to 264 VAC auto sensing
Rating: 100 to 240 VAC | | Frequency | Range: 47 to 63 Hz
Rating: 50 to 60 Hz | | In-Rush Current | 60 A maximum @ 240 VAC | | PoE Class | IEEE 802.3af & 802.3at with class detection | | Pin Assignments | Power on Data Pins: 3 & 6 (+), 1 & 2 (-) | | Output Voltage | +56 VDC (+1 V / -2 V) | | Maximum Power Supported | On Port: 35 W (class 4) @ 104°F (40°C) (exceeds PoE standard) | | Load | Minimum: 10 mA
Maximum: 0.35 A | | Regulation | Line/Load: ±5% | | Efficiency | 80% (typical) at maximum load & 120 VAC, 60 Hz, class 4 | | Hold-Up Time | 10 ms | | Throughput | 10 Mb/s Ethernet, 100 Mb/s Fast Ethernet, or 1000 Mb/s Gigabit | | Connector Type | Non-shielded RJ45; meets EIA 568A and 568B | | Operating Temperature | -4 to 104°F (-20 to 40°C) @ 35 W
-4 to 131°F (-20 to 55°C) @ 25 W
-4 to 140°F (-20 to 60°C) @ 20 W | | Relative Humidity | 5 to 90%, non-condensing | | Compatible Devices | Any PoE compliant device | | Wiring Distance | 328' (100 m) between Ethernet switch and PoE-enabled end device | | LED Indicators | Display power status | | Surge Protection | Over voltage current & short circuit protected | | Bracket Type | Wall mounting bracket | | Safety Approvals | FCC, CE, UL/cUL | | Dimensions | 5.0 x 2.0 x 1.4" (12.8 x 5.1 x 3.5 cm) | | Weight | 6.3 oz (178.6 g) | |
The user manual for the Iluminar IL-PoE35 Series Single Port High Power / PoE IL-POE35NA can be downloaded in .pdf
format if it did not come with your new power over ethernet (poe), although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Iluminar users keep a unique electronic library
for Iluminar power over ethernet (poe)s,
where you can use our link to download the user manual for the Iluminar IL-PoE35 Series Single Port High Power / PoE IL-POE35NA.
The user manual lists all of the functions of the Iluminar IL-PoE35 Series Single Port High Power / PoE IL-POE35NA,
all the basic and advanced features and tells you how to use the power over ethernet (poe).
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Iluminar service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Iluminar IL-PoE35 Series Single Port High Power / PoE IL-POE35NA. User manuals are also
available on the Iluminar website under Surveillance - Surveillance Video - Wired Networking - Power over Ethernet (PoE).
