User manual Impact VC-500LR 2 Monolight Kit (220-240VAC) VC-500LR2K220V

Operating instructions and pdf manual for use - Impact VC-500LR 2 Monolight Kit (220-240VAC) VC-500LR2K220V User manual, User manual Impact VC-500LR 2 Monolight Kit (220-240VAC) VC-500LR2K220V, Impact, VC-500LR, 2, Monolight, Kit, 220-240VAC, VC-50


User manual for Impact VC-500LR 2 Monolight Kit (220-240VAC) VC-500LR2K220V

Impact VC-500LR 2 Monolight Kit (220-240VAC) VC-500LR2K220V
  • Manufacturer: Impact
  • Basic description and contents of package
  • Product classification: Lighting & Studio - Strobe Lighting - Monolight Kits
  • Safety instructions
  • Startup and operation of the monolight kits
  • Tips for setting up your Impact
  • Settings and expert assistance
  • Contact Impact service
  • Troubleshooting
  • Warranty information
  • Price: 750 USD
We recommend checking out our discussion threads on the Impact VC-500LR 2 Monolight Kit (220-240VAC) VC-500LR2K220V, which address similar problems with connecting and setting up Monolight Kits Impact.



User manual for the Impact VC-500LR 2 Monolight Kit (220-240VAC) VC-500LR2K220V

The user manual for the Impact VC-500LR 2 Monolight Kit (220-240VAC) VC-500LR2K220V provides necessary instructions for the proper use of the product Lighting & Studio - Strobe Lighting - Monolight Kits.

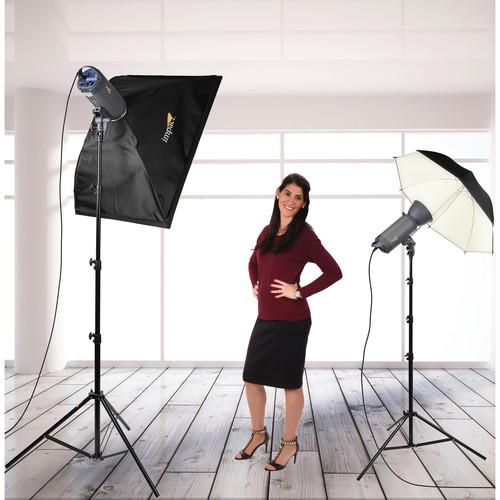

The Impact VC-500LR 2 Monolight Kit (220-240VAC) is built around two VC-500LR 500W/s monolights with features unusual in this price range, such as a 6.0 f/stop power range (full to 1/32) adjustable in 1/10 stop increments, fast recycling time (2.5 seconds @ full power), and fully adjustable modeling light level. A re-designed, large, easily-readable display gives you flash status information. The VC-500LR also offers minimal flash color shift when powering down (~200K). In addition, it has a feature rarely found on a monolight - a red eye reduction bypass photocell sync, which allows you when using both on-camera flash and the monolight to set the light's slave cell to ignore pre-exposure flashes from your on-camera flash. This kit is rounded out with a wireless remote capable of controlling up to 7 lights, umbrellas, reflectors, a softbox, adapter, light stands, mono to PC sync cords, and a wheeled kit case.
If you own a Impact monolight kits and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Impact VC-500LR 2 Monolight Kit (220-240VAC) VC-500LR2K220V in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Impact VC-500LR 2 Monolight Kit (220-240VAC) VC-500LR2K220VDownload user manual for Impact VC-500LR 2 Monolight Kit (220-240VAC) VC-500LR2K220V
(PDF file, 3.32 MB)
Additional parameters of the Impact VC-500LR 2 Monolight Kit (220-240VAC) VC-500LR2K220V:
Maximum Watt/Seconds Each Monolight: 500
Guide Number Each Monolight: 255 in feet (78 in meter) @ISO 100
Recycle Time 2.5 sec @ max power
1 sec @ min power
Flash Duration 1/800 sec @ max power1/1200 sec @ min power
Flash Variability Full to 1/32 power (6 stops) in stepless 1/10 stop increments
User Replaceable Flashtube Yes (LR9901YSP1H)
Changeable Reflector Yes; Bowen-style tabs, spring release
Modeling Light Wattage 250
Voltage Stabilization Yes
Flash Ready Indicator LED, switchable audible beep
Operating Voltage 220-240VAC, 50Hz
Built-in Slave Cell Yes
Circuit Protection 6A fuse
Fan Cooled Yes
Auto Dump Yes
Dimensions Each Monolight: 12.6 x 5 x 5" (32 x 32 x 13 cm) without reflector
Kit in Case: 37 x 10 x 10" (94 x 25.4 x 25.4 cm)
Weight 6.2 lbs (2.8 kg)
Kit Weight 63 lbs (29 kg)
Packaging Info
Package Weight 46.6 lb
Box Dimensions (LxWxH) 33.0 x 13.5 x 13.0"
The user manual for the Impact VC-500LR 2 Monolight Kit (220-240VAC) VC-500LR2K220V can be downloaded in .pdf format if it did not come with your new monolight kits, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Impact users keep a unique electronic library for Impact monolight kitss, where you can use our link to download the user manual for the Impact VC-500LR 2 Monolight Kit (220-240VAC) VC-500LR2K220V.

The user manual lists all of the functions of the Impact VC-500LR 2 Monolight Kit (220-240VAC) VC-500LR2K220V, all the basic and advanced features and tells you how to use the monolight kits. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Impact service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Impact VC-500LR 2 Monolight Kit (220-240VAC) VC-500LR2K220V. User manuals are also available on the Impact website under Lighting & Studio - Strobe Lighting - Monolight Kits.
