User manual for the Impact VC-500WL 3-500Ws Monolight with Transmitter Kit
The user manual for the Impact VC-500WL 3-500Ws Monolight with Transmitter Kit provides
necessary instructions for the proper use of the product Lighting & Studio - Strobe Lighting - Monolight Kits.

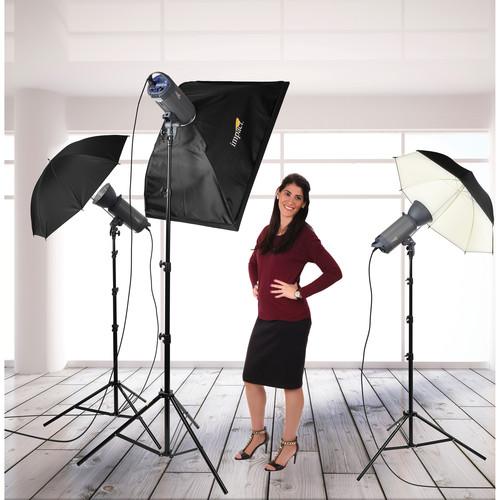

The Impact VC-500WL 3-500Ws Monolight with Transmitter Kit is built around 3 enhanced, redesigned VC-500WL flash heads. Each head comes with a reflector, flashtube, 250W modeling lamp, power cable, sync cord and a 9.4' air-cushioned light stand. The included 16-channel, 4-group radio transmitter triggers the head's built-in receivers from up to 328' away. Three white umbrellas with black backing, a 24 x 36" softbox with silver interior and speedring and a wheeled case are also included.
|
If you own a Impact monolight kits and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Impact VC-500WL 3-500Ws Monolight with Transmitter Kit in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Impact VC-500WL 3-500Ws Monolight with Transmitter Kit:
| Construction | Aluminum casting with textured coating, polymer | | Output | Each monolight: 500 Ws | | Guide Number | 255' (78 m) @ ISO 100 | | Variable Power | Full to 1/32 in 1/10 stop increments, 6 stops | | Recycle Time | 1.5 Sec. @ max. power, 0.2 sec. @ min. power | | Flash Duration | 1/800 sec. @ max. power, 1/1200 sec. @ min power | | Flash Ready Indicator | Visible or audible confirmation | | User Replaceable Flashtube | Yes, (LR9901YSP1H) | | Modeling Light | E26/27, 250 W max. with E26/27
SSC (Soft Start Circuitry)
Settings: Proportional, Independent, Off | | Triggering | 16-Channel built-in 2.4 GHz wireless receiver
Included 16-channel 2.4 GHz wireless transmitter (CR2032 3 V battery)
Sync cable, test button, slave sensor with red eye feature | | Slave Mode | Red-eye reduction, synchronous | | Control Method | Touchpad control back panel | | Trigger Voltage | 5 VDC | | Wireless Range | 328' (100 m) | | Color Temperature | 5,600 K (+/- 100 K) @ 110 - 120 VAC 60 Hz | | Sync Input | 1/4" (6.35 mm)
Length: 11' (3.35 m) | | Power Cable | 16' (4.87 m) | | Fan Cooled | Yes, with adaptive thermal control | | Auto Dump | Yes | | Changeable Reflector | Yes, S-type mount | | User Replaceable Flashtube | Yes | | Modeling Light Wattage | 250 W | | Voltage Stabilization | Yes | | Flash Ready Indicator | LED, switchable audible beep | | Built-in Slave Cell | Yes | | Circuit Protection | 12.5 A fuse | | Auto Dump | Yes | | Voltage | 100 - 130 VAC, 50/60 Hz | | Dimensions | Each monolight: 12.6 x 5.0 x 5.0" (32 x 12.7 x 12.7 cm) with protective cap
Kit in case: 37 x 10 x 10" (94 x 25.4 x 25.4 cm) | | Weight | Each light: 6.2 lb (2.8 kg) | | Kit Weight | 63 lb (29 kg) | | Package Weight | 66.5 lb | | Box Dimensions (LxWxH) | 41.0 x 16.0 x 14.0" | |
The user manual for the Impact VC-500WL 3-500Ws Monolight with Transmitter Kit can be downloaded in .pdf
format if it did not come with your new monolight kits, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Impact users keep a unique electronic library
for Impact monolight kitss,
where you can use our link to download the user manual for the Impact VC-500WL 3-500Ws Monolight with Transmitter Kit.
The user manual lists all of the functions of the Impact VC-500WL 3-500Ws Monolight with Transmitter Kit,
all the basic and advanced features and tells you how to use the monolight kits.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Impact service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Impact VC-500WL 3-500Ws Monolight with Transmitter Kit. User manuals are also
available on the Impact website under Lighting & Studio - Strobe Lighting - Monolight Kits.
