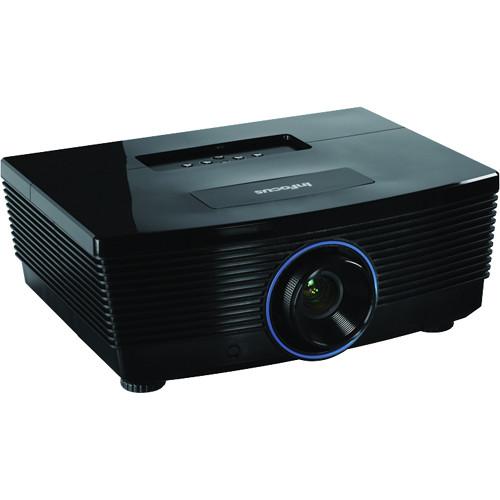

InFocus  IN5316HDa DLP Projector IN5316HDA
  • Manufacturer: InFocus
  • Basic description and contents of package
  • Product classification: A/V Presentation - Projectors - Multimedia Projectors
  • Safety instructions
  • Startup and operation of the multimedia projectors
  • Tips for setting up your InFocus
  • Settings and expert assistance
  • Contact InFocus service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the InFocus IN5316HDa DLP Projector IN5316HDA, which address similar problems with connecting and setting up Multimedia Projectors InFocus.



User manual for the InFocus IN5316HDa DLP Projector IN5316HDA

The user manual for the InFocus IN5316HDa DLP Projector IN5316HDA provides necessary instructions for the proper use of the product A/V Presentation - Projectors - Multimedia Projectors.

The InFocus IN5316HDa DLP Projector is a versatile 1080p projector for professional installations. DLP image quality, brightness, and installation flexibility are all features of the IN5316HDa. A range of connectivity, three lens options, and a small form factor help it fit into large classrooms, conference rooms, houses of worship, and more.
If you own a InFocus multimedia projectors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the InFocus IN5316HDa DLP Projector IN5316HDA in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for InFocus  IN5316HDa DLP Projector IN5316HDADownload user manual for InFocus IN5316HDa DLP Projector IN5316HDA
(PDF file, 7.66 MB)
Additional parameters of the InFocus IN5316HDa DLP Projector IN5316HDA:
Specifications
    Image Display
    Display System 1-Chip 0.65" / 16.51 mm DMD DLP
    Native Resolution Full HD - 1920 x 1080 Progressive
    Supported Resolutions VGA
    SVGA
    XGA
    WXGA
    WXGA+
    SXGA
    WSXGA+
    UXGA
    Full HD 1080p
    WUXGA
    Supported Formats Not Specified By Manufacturer
    Format NTSC 4.43, 60
    PAL B, G, H, I
    SECAM
    HDTV Compatibility 480i
    480p
    576i
    576p
    720p
    1080i
    1080p
    Pixels 2,073,600
    Brightness Normal Mode: 5000 Lumens
    Eco Mode: 4200 Lumens
    Projection Angle Not Specified By Manufacturer
    Uniformity Not Specified By Manufacturer
    Offset 10%
    Aspect Ratio Native: 16:9
    Contrast Ratio 2000:1
    Dynamic Contrast Ratio Not Specified By Manufacturer
    DLP Link 3D Yes
    Supported 3D Formats Not Specified By Manufacturer
    Color Range Not Specified By Manufacturer
    Scan Horizontal: 31 - 91.4 kHz or 15 kHz
    Vertical: 47 - 120 kHz or 24 kHz
    Lens
    Focus Manual
    Lens Not Specified By Manufacturer
    Lens Shift Horizontal: +5%
    Vertical: 0 -40%
    Zoom Manual: 1.25x
    Throw Distance 4.9 - 23.0' (1.5 - 7.0 m)
    Throw Ratio 1.54 - 1.93:1
    Projection Size 35.1 - 205" / 89.15 - 520.70 cm (Max Diagonal: 205" / 520.70 cm)
    Features
    Keystone Correction Manual: Yes, Vertical: ± 40°
    Picture-in-Picture Not Specified By Manufacturer
    Ceiling Mountable Yes
    Rear Screen Projection Yes
    Projection Tilt Option Not Specified By Manufacturer
    Built-in Speaker Yes, 6 W (Stereo)
    Internal Memory Not Specified By Manufacturer
    Closed Captioning Yes
    Picture Modes Not Specified By Manufacturer
    Input/Output Connectors
    Inputs/Outputs 2x 15-pin VGA Video (Input)
    1x DVI-D Video (Input)
    1x DisplayPort Video (Input)
    1x BNC Component Video (Input)
    1x RCA Component Video (Input)
    1x RCA Composite Video (Input)
    1x HDMI Audio/Video (Input)
    2x RCA Stereo (L/R) Audio (Input)
    3x 1/8" (3.5 mm) Mini Audio (Input)
    1x RS-232C Control (Input)
    1x Ethernet Control (Input)
    1x USB Type-B Female (Input)
    1x 15-pin VGA Video (Output)
    1x 1/8" (3.5 mm) Mini Audio (Output)
    1x 12 V Trigger Control (Output)
    1x 1/8" (3.5 mm) Mini Control (Output)
    1x USB Type-A Female (Output)
    1x S-Video Video (Input)
    1x VESA 3D Sync Video (Input)
    Wireless LAN None

    Optional wireless LAN adapter sold separately.

    Sync Compatibility Not Specified By Manufacturer
    General
    Lamp (Bulb) Not Specified By Manufacturer
    Replacement Lamp SP-LAMP-90
    Color Temperature Not Specified By Manufacturer
    Watts 370 W
    Normal Mode: 330 W
    Eco Mode: 280 W
    Life Normal Mode: 1500 Hours
    Eco Mode: 3500 Hours
    Fan Noise Normal Mode: 34 dB
    Eco Mode: 31 dB
    Maximum Pixel Clock Not Specified By Manufacturer
    Remote Control Yes
    Security Cable Lock Slot
    System Requirements Not Specified By Manufacturer
    Languages Arabic
    Czech
    Danish
    Dutch
    English
    Finnish
    French
    German
    Greek
    Hebrew
    Hungarian
    Indonesian
    Italian
    Japanese
    Korean
    Norwegian
    Persian
    Polish
    Portuguese
    Russian
    Simplified Chinese
    Spanish
    Swedish
    Thai
    Traditional Chinese
    Turkish
    Vietnamese
    Power Requirements 100-240 VAC +/- 10%
    Battery Not Specified By Manufacturer
    Input Current Not Specified By Manufacturer
    DC Output Not Specified By Manufacturer
    Heat Dissipation Not Specified By Manufacturer
    Power Consumption Bright Mode: 480 W
    Normal Mode: 430 W
    Eco Mode: 370 W
    Standby Mode: <.5 W
    Altitude Not Specified By Manufacturer
    Temperature Operating
    41 to 95°F (5 to 35°C)
    Dimensions (WxHxD) 16.9 x 13.3 x 6.9" / 42.9 x 33.8 x 17.5 cm
    Weight 19.0 lb / 8.62 kg
    Packaging Info
    Package Weight 28.45 lb
    Box Dimensions (LxWxH) 20.9 x 17.4 x 12.7"
