User manual for InFocus IN5544 Widescreen 3LCD Projector IN5544
- Manufacturer: InFocus
- Basic description and contents of package
- Product classification: A/V Presentation - Projectors - Multimedia Projectors
- Safety instructions
- Startup and operation of the multimedia projectors
- Tips for setting up your InFocus
- Settings and expert assistance
- Contact InFocus service
- Troubleshooting
- Warranty information
|
We recommend checking out our discussion threads on the InFocus IN5544 Widescreen 3LCD Projector IN5544,
which address similar problems with connecting and setting up Multimedia Projectors InFocus.
|
User manual for the InFocus IN5544 Widescreen 3LCD Projector IN5544
The user manual for the InFocus IN5544 Widescreen 3LCD Projector IN5544 provides
necessary instructions for the proper use of the product A/V Presentation - Projectors - Multimedia Projectors.

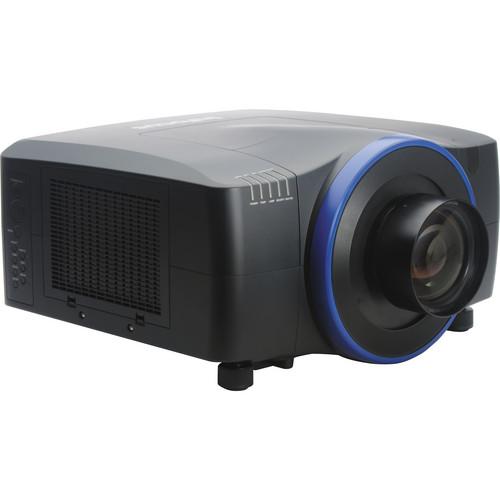

The IN5544 WXGA Widescreen 3LCD Projector from InFocus offers 6500 lumens, full HD 1080p performance and a contrast ratio of up to 2500:1. This full-featured projector also offers a full set of lenses. No lens is included with the projector, so you only pay for the lens you desire.
|
If you own a InFocus multimedia projectors and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the InFocus IN5544 Widescreen 3LCD Projector IN5544 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the InFocus IN5544 Widescreen 3LCD Projector IN5544:
| Display System | 3-Chip 1.22" / 30.99 mm Polysilicon TFT LCD | | Native Resolution | WXGA - 1366 x 800 | | Supported Resolutions | Not Specified By Manufacturer | | Supported Formats | Not Specified By Manufacturer | | Format | NTSC 4.43
PAL M, N
SECAM | | HDTV Compatibility | 720p
1080i
1080p | | Pixels | 3,278,400 | | Brightness | High Brightness Mode: 6500 Lumens
Eco Mode: 5200 Lumens | | Projection Angle | 90.0° | | Uniformity | Not Specified By Manufacturer | | Offset | Not Specified By Manufacturer | | Aspect Ratio | Native: 17:10
Supported: 4:3
Supported: 5:4
Supported: 16:9
Supported: 16:10 | | Contrast Ratio | 2500:1 | | Dynamic Contrast Ratio | Not Specified By Manufacturer | | DLP Link 3D | None | | Color Range | 1.07 Billion | | Scan | Horizontal: 31.5 - 106 kHz
Vertical: 55 - 120 Hz | | Focus | Not Specified By Manufacturer | | Keystone Correction | Yes, Vertical: ± 15°
Yes, Horizontal: ± 5° | | Picture-in-Picture | None | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Projection Tilt Option | Yes | | Built-in Speaker | None | | Internal Memory | None | | Inputs/Outputs | 2x 15-pin VGA Video (Input)
1x HDMI Audio/Video (Input)
1x DVI-D Video (Input)
5x BNC Video (Input)
1x RCA Composite Audio/Video (Input)
1x S-Video Video (Input)
1x RCA Component Audio/Video (Input)
1x 15-pin VGA Video (Output)
1x RS-232C Control (Input)
1x RS-232C Control (Output)
1x Ethernet LAN | | Wireless LAN | Not Specified By Manufacturer | | Sync Compatibility | Not Specified By Manufacturer | | Lamp (Bulb) | Not Specified By Manufacturer | | Watts | 350 W
Eco Mode: 280 W | | Life | Eco Mode: 3000 Hours
Normal Mode: 2000 Hours | | Fan Noise | Eco Mode: 34 dB
Normal Mode: 42 dB | | Maximum Pixel Clock | Not Specified By Manufacturer | | Remote Control | Yes | | Security | Cable Lock Slot
Padlock
Password Protection
Security Bar | | System Requirements | Not Specified By Manufacturer | | Languages | Dutch
English
Finnish
French
German
Italian
Korean
Norwegian
Polish
Portuguese
Russian
Simplified Chinese
Spanish
Swedish
Traditional Chinese
Turkish | | Power Requirements | 100-240 VAC, 50/60 Hz | | Input Current | Not Specified By Manufacturer | | DC Output | Not Specified By Manufacturer | | Heat Dissipation | Not Specified By Manufacturer | | Power Consumption | Normal Mode: 540 W
Eco Mode: 440 W
Power Saving Mode: 15 W | | Altitude | 0 - 6000' (0 - 1828 m) | | Temperature | 41 to 95°F (5 to 35°C)
Humidity: 10 - 85% | | Dimensions (WxHxD) | 18.7 x 18.5 x 10.7" / 475.0 x 469.9 x 271.8 mm No lens | | Weight | 29.1 lb / 13.20 kg No lens | |
The user manual for the InFocus IN5544 Widescreen 3LCD Projector IN5544 can be downloaded in .pdf
format if it did not come with your new multimedia projectors, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other InFocus users keep a unique electronic library
for InFocus multimedia projectorss,
where you can use our link to download the user manual for the InFocus IN5544 Widescreen 3LCD Projector IN5544.
The user manual lists all of the functions of the InFocus IN5544 Widescreen 3LCD Projector IN5544,
all the basic and advanced features and tells you how to use the multimedia projectors.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from InFocus service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the InFocus IN5544 Widescreen 3LCD Projector IN5544. User manuals are also
available on the InFocus website under A/V Presentation - Projectors - Multimedia Projectors.
