Designed for SAN and DAS environments, the EonStor DS 3012RT 12-Bay RAID Storage System from Infortrend is a high IOPS solution that is well suited for database and VDI applications, while bandwidth enhances media editing and surveying jobs. It delivers powerful performance, wide scalability, and enterprise data services. It also has flexibility to integrate with hybrid host interfaces and modular hardware.

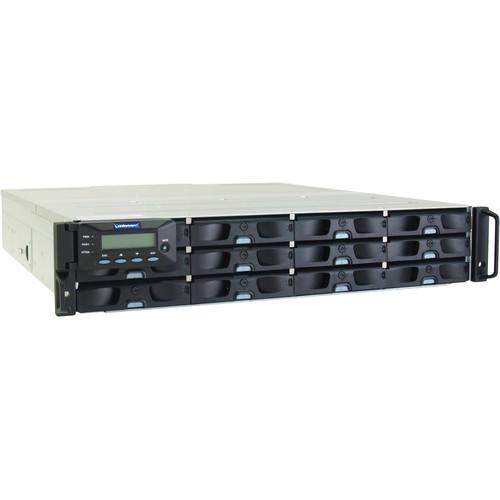

The EonStor DS 3012RT features a 2U, 12-bay large form factor, dual redundant storage controllers, and 4 x 4GB of cache memory per controller, for a total of 32GB. Systems are configured with 8 x 1 Gb/s iSCSI ports for out-of-the-box connectivity to various clients with a combination of speed and stability, but can be transformed using hybrid host interfaces. Users can mix and match different standards, with options including 16 Gb/s Fibre Channel, 8 Gb/s Fibre Channel, 10 Gb/s iSCSI, 1 Gb/s iSCSI, 12 Gb/s SAS, and 6 Gb/s SAS. Hybrid host interfaces help support storage multitasking, allowing the bandwidth of the Fibre Channel with the high speed connectivity of the iSCSI or SAS. Drives are hot-swappable, as are the redundant power supplies.
The EonStor DS 3012RT systems are scalable with compatible JBOD expansion enclosures, helping to provide added capacity as the need for more space grows. JBODs connect via a 6 Gb/s SAS are are offered in various form factors, including high density 4U 60-bay units. There is also compatibility for self-encrypting drives.
Performance reaches up to 1,300,000 IOPS with 5,500 MB/s throughput. This helps users who work with IOPS-intensive applications such as databases and VDI applications. This bandwidth helps enhance media editing and surveying jobs, which can also help reduce system bottlenecks.
The EonStor DS 3012RT operates using two redundant 530W power supplies that are compatible with 100 VAC @ 10A to 240 VAC @ 5A with auto-switching PFC at frequencies of 47-63 Hz. This RAID is compatible with systems running Windows, Mac, RedHat Enterprise Linux, SUSE Linux Enterprise, Sun Solaris, VMWare, Citrix, IBM AIX, and HP-UX. Included is a power cord, a 3-year limited hardware warranty, and 8x5 phone, web, and email support.
If you own a Infortrend nas enclosures and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Infortrend EonStor DS 3012RT 12-Bay RAID Storage DS3012RT2000F in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Infortrend EonStor DS 3012RT 12-Bay RAID Storage DS3012RT2000F:
Online expansion by: - Adding new drives - Copying and replacing drives with drives of larger capacity
RAID migration
Configurable stripe size and write policy per system
Intelligent drive handling - In degraded mode: skips irreparable blocks to continue rebuild - In normal operation: data-block verification and repair
Power & Cooling
Power Supplies: 2 x redundant 530 W AC Voltage: 100 VAC @ 10 A to 240 VAC @ 5 A with PFC (auto-switching) Frequency: 47-63 Hz
Power Consumption: 332
Heat dissipation: 1,148 BTU/hour
Environmental
Operating Temperature with BBU or CBM: 32 to 95°F / 0 to 35°C Operating Temperature without BBU or CBM: 32 to 104°F / 0 to 40°C Non-Operating Temperature: -40 to 140°F / -40 to 60°C
Operating Altitude: Sea Level to 12,000' / 3,657 m Non-Operating Altitude: Sea Level to 40,000' / 12,192 m
Relative Humidity: 5 to 95% non-condensing, operating, and non-operating
Green Design
80 PLUS power supplies delivering more than 80% energy efficiency
Intelligent multi-level drive spin-down
RAID Configurations
RAID level 0, 1 (0+1), 3, 5, 6, 10, 30, 50, 60 Up to 32 logical drives and 64 partitions per logical volume Up to 2,048 LUNs
Global, dedicated or enclosure hot-spare Online expansion by: Adding new drives Copying and replacing drives with drives of larger capacity RAID migration Configurable stripe size and write policy per system Intelligent drive handling - In degraded mode: skips irreparable blocks to continue rebuild - In normal operation: data-block verification and repair
Redundant, hot-swappable hardware modules Multi-pathing support (EonPath), device mapper support Cache backup technology: helps protect cached data during power outages by flushing data into flash memory Port trunking / link aggregation (IEEE 802.3ad), fail-over, jumbo frame
Management
Web-based SANWatch management software
RS232 serial port for local access to firmware-embedded utility
Automated cache flush and caching mode operation per enclosure status
Telnet and SSH system monitoring via Ethernet
Platform-independent firmware management GUI
LCD keypad panel for monitoring and access to all configuration options
Module status LED indicators: component presence detection & thermal sensors via I2C bus
Notification
Email, Fax, LAN broadcast, SNMP traps, SMS
OS Support
Microsoft Windows Server 2008 / 2008 R2 / 2012 / 2012 R2 (including Hyper-V) Red Hat Enterprise Linux SUSE Linux Enterprise Sun Solaris Mac OS X HP-UX IBM AIX VMware Citrix XenServer
17.52 x 3.50 x 20.83" / 445.00 x 88.00 x 529.00 mm (without chassis ears and protrusions)
Weight
39.90 lb / 18.10kg (without HDDs)
