User manual for the INSTEON 75790 Indoor Wireless IP Camera with 3.6mm Lens 75790WH
The user manual for the INSTEON 75790 Indoor Wireless IP Camera with 3.6mm Lens 75790WH provides
necessary instructions for the proper use of the product Surveillance - Surveillance Video - Wireless Cameras.

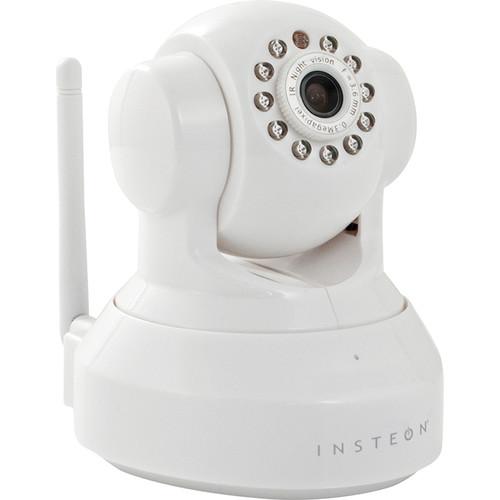

Quick to set up and control remotely, the white 75790 Indoor Wireless IP Camera from INSTEON is an easy way to start monitoring a location. It uses a combination of a 3.6mm lens with a High Definition Color CMOS sensor to capture a wide area at resolutions up to VGA 640 x 480 at 15 fps. It uses MJPEG compression to lessen strain on bandwidth and features both Wi-Fi and wired Ethernet connectivity. The wireless connection also supports remote access from a mobile device such as a phone or smartwatch by using the specific app. And, it has two-way audio with a built-in speaker and microphone, as well as a standard 1/8" input and 1/8" output.
Other features include a 300° pan and 120° tilt function for monitoring all over the location and IR night vision via 11 IR LEDs with a 26' range. It also has a motion sensor which can be programmed to send alerts to an email address for constant watch.
|
If you own a INSTEON wireless cameras and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the INSTEON 75790 Indoor Wireless IP Camera with 3.6mm Lens 75790WH in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the INSTEON 75790 Indoor Wireless IP Camera with 3.6mm Lens 75790WH:
| Image Sensor | High Definition Color CMOS | | Resolution | 640 x 480 (300,000 pixels) | | Lens | Glass | | Focal Length | 3.6mm | | Minimum Illumination | 0.5 lux | | Compression | MJPEG | | Video Resolution | VGA: 640 x 480
QVGA: 320 x 240 | | Frame Rate | VGA: 15 fps
QVGA: 30 fps | | Image Adjustments | Brightness, contrast | | Pan/Tilt | 300° pan / 120° tilt | | Audio | Built-in microphone
Built-in speaker
1/8" / 3.5mm audio input
1/8" / 3.5mm audio output | | IR LED / Night Vision Range | 11 x IR LEDs with night vision up to 26' / 8 m | | Connection | 10/100 Mbps RJ45 Ethernet
IEEE802.11b/g/n | | Wireless Data Rate | IEEE802.11b: 11 Mbps
IEEE802.11g: 54 Mbps
IEEE802.11n: 108 Mbps | | Wireless Security | WEP, WPA, WPA2 | | Network Protocols | HTTP, FTP, TCP/IP, UDP, SMTP, DHCP, PPPoE, DDNS, UPnP, GPRS | | Power Supply | 5 VDC, 2 A | | Power Consumption | 5.5 W | | System Requirements | Windows 2000, XP, Vista, 7
2.0 GHz CPU or above
256 MB RAM or above
64 MB display memory of above
Internet Explorer 6, 7, 8; Firefox 2, 3; Chrome; Safari | | Operating Conditions | Temperature: 32 to 131°F / 0 to 55°C
Humidity: 20 to 85% non-condensing | | Storage Conditions | Temperature: 14 to 140°F / -10 to 60°C
Humidity: 0 to 90% non-condensing | | Certifications | CE FCC | | Dimensions | 4.3 x 3.9 x 4.3" / 110 x 100 x 108 mm | | Weight | 14.7 oz / 418 g | | Package Weight | 1.5 lb | | Box Dimensions (LxWxH) | 8.189 x 8.11 x 4.803" | |
