User manual INSTEON Dimmer Switch 2432-292

Operating instructions and pdf manual for use - INSTEON Dimmer Switch 2432-292 User manual, User manual INSTEON Dimmer Switch 2432-292, INSTEON, Dimmer, Switch, 2432-292, Video


User manual for INSTEON Dimmer Switch 2432-292

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.

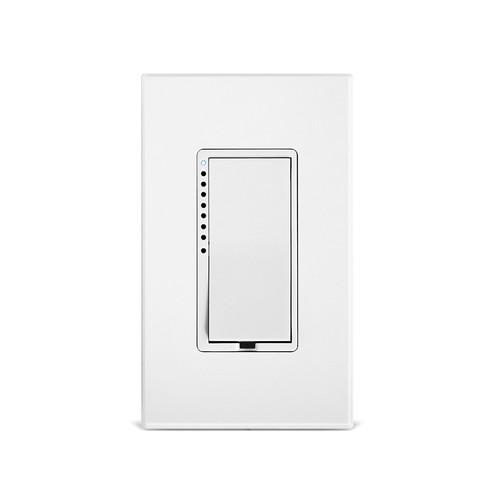

INSTEON  Dimmer Switch 2432-292
  • Manufacturer: INSTEON
  • Basic description and contents of package
  • Product classification: Surveillance - Home Automation - Dimmers & Switches
  • Safety instructions
  • Startup and operation of the dimmers & switches
  • Tips for setting up your INSTEON
  • Settings and expert assistance
  • Contact INSTEON service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the INSTEON Dimmer Switch 2432-292, which address similar problems with connecting and setting up Dimmers & Switches INSTEON.



User manual for the INSTEON Dimmer Switch 2432-292

The user manual for the INSTEON Dimmer Switch 2432-292 provides necessary instructions for the proper use of the product Surveillance - Home Automation - Dimmers & Switches.

The INSTEON Dimmer Switch is designed to replace your existing wall switch and add wireless dimming capability. When paired with the INSTEON control devices such as the Hub, which is sold separately, you can download the free INSTEON control app for controlling the Dimmer Switch from devices likes smartphones and tablets. The app can be found in the Google Play, Apple, Amazon, and Windows app stores. Using the INSTEON user interface, you can control light output by selecting a specific brightness percentage. A paddle rocker is also located on the Dimmer Switch to directly control brightness and dimming levels. In addition to basic on and off control, you can even set lighting schedules and scenes.
If you own a INSTEON dimmers & switches and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the INSTEON Dimmer Switch 2432-292 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the INSTEON Dimmer Switch 2432-292:
Specifications
    Dimmer
    RF Yes
    Radio Frequency 915 MHz
    Frequency Range 150' (45.7 m)
    Functionality INSTEON Device Category: 0x01 lighting control
    INSTEON Device Subcategory: 0x00
    INSTEON ID: 1
    INSTEON Links: 417
    INSTEON Messages Repeated: Yes
    INSTEON Minimum Receive Level: 10 mV
    INSTEON Minimum Transmit Level: 3.2 Vpp into at Ohms
    INSTEON Powerline Device: Yes
    INSTEON Powerline Frequency: 131.65 kHz
    Maximum Scene Memberships: 400
    Multi-Link Support: Yes
    Multi-Unlink Support: Yes
    Operation Audio Alert: Beeper, can be disabled through software
    Load Sensing: No
    Local Control: Yes
    Setup Memory: Non-volatile EEPROM
    Status LED: Red/Green LED
    Commands Scene Commands Supported as Controller: On, Off, Fast-On, Fast-Off, Begin Brighten, Begin Dim, End Brighten, End Dim
    Scene Commands Supported as Responder: On, Off, Fast-On, Fast-Off, Begin Brighten, Begin Dim, End Brighten, End Dim, Beep
    Mechanical Software Configurable: Yes
    Beep on Button Press: Yes, software configurable
    Beeper: Yes, software configurable
    Dimming Technology: TRIAC Dimmer
    Enclosure Material: UV stabilized plastic
    Mounting: Mounts in single or multiple-ganged junction boxes. Derating of 200W occurs with each immediately adjacent Dimmer Switch installed.
    Set Button: Yes
    Electrical Load Types: Wired-in incandescant lighting devices
    Maximum Load: 600 W
    Minimum Load: None
    Surge Resistance: Surges over 1000 V
    General
    Operating Environment Indoors
    Operating Temperature Range 32 - 104°F (0 - 40°C)
    Operating Humidity Range 0 - 90% relative humidity
    Storage Temperature Range -4 - 158°F (-20 - 70°C)
    Power Consumption <0.75 W
    Power Requirements 100 - 277 VAC ± 10%, 50/60 Hz, single phase
    Dimensions (HxWxD) 4.1 x 1.8 x 1.4" (10.4 x 4.6 x 3.6 cm)
    Weight 3.6 oz (102 g)
    Packaging Info
    Package Weight 0.65 lb
    Box Dimensions (LxWxH) 7.48 x 7.244 x 2.835"
    The user manual for the INSTEON Dimmer Switch 2432-292 can be downloaded in .pdf format if it did not come with your new dimmers & switches, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other INSTEON users keep a unique electronic library for INSTEON dimmers & switchess, where you can use our link to download the user manual for the INSTEON Dimmer Switch 2432-292.

    The user manual lists all of the functions of the INSTEON Dimmer Switch 2432-292, all the basic and advanced features and tells you how to use the dimmers & switches. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from INSTEON service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the INSTEON Dimmer Switch 2432-292. User manuals are also available on the INSTEON website under Surveillance - Home Automation - Dimmers & Switches.
