INSTEON  Dual Band On/Off Module 2635-292
  • Manufacturer: INSTEON
  • Basic description and contents of package
  • Product classification: Surveillance - Home Automation - Power Outlets
  • Safety instructions
  • Startup and operation of the power outlets
  • Tips for setting up your INSTEON
  • Settings and expert assistance
  • Contact INSTEON service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the INSTEON Dual Band On/Off Module 2635-292, which address similar problems with connecting and setting up Power Outlets INSTEON.



User manual for the INSTEON Dual Band On/Off Module 2635-292

The user manual for the INSTEON Dual Band On/Off Module 2635-292 provides necessary instructions for the proper use of the product Surveillance - Home Automation - Power Outlets.

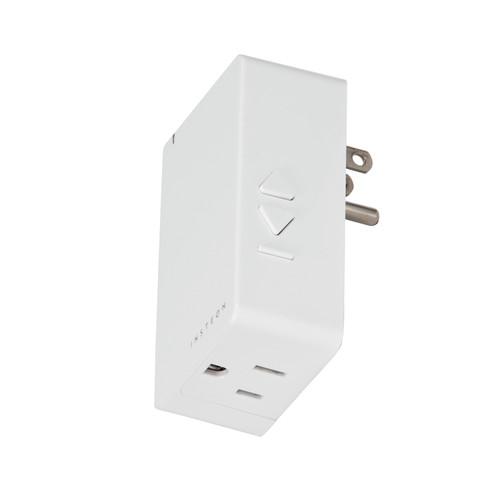

The Insteon Dual Band On/Off Module allows you to remotely control and schedule non-dimming devices like lamps (including most compact fluorescent and LED lamps), desk fans, space heaters, and even lava lamps.

The on/off module is plugged into a wall outlet and the non-dimming device is plugged into it, enabling the module to act as a remote-control switch for anything connected. And, when used with the Insteon Hub (available separately), you can remotely control the module from your smartphone or tablet, and even schedule it for sunrise, sunset, or any time in between.

The Insteon Hub (available separately) is a central controller—a device that connects you to your home from any smartphone or tablet anywhere in the world via the Insteon app. You can control Insteon light bulbs, wall switches, outlets, and thermostats at home or remotely, and receive instant email or text message alerts from motion, door and window, water leak, and smoke sensors while you're away.
If you own a INSTEON power outlets and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the INSTEON Dual Band On/Off Module 2635-292 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the INSTEON Dual Band On/Off Module 2635-292:
Specifications
    Operational
    Alerts Audio alerts via beeper, can be disabled through software
    Modes of Operation Insteon only
    Controls Load control
    LED Status Indicator Red/Green
    Memory Non-volatile EEPROM for storing setup details
    Buttons Set button
    INSTEON
    Link Insteon Links: 417
    Link Support: Multi-link/Multi unilink
    Repeat Messages
    Receive / Transmit Minimum Receive Level: 10 mV
    Minimum Transmit Level: 3.2 Vpp into 5 Ω
    Powerline Frequency Band 131.65 kHz
    Control RF controllable
    Maximum Controlled Scenes: 1
    Maximum Scene Memberships: 400
    RF Carrier Frequency 915 MHz
    RF Range 150' (50 m)
    Commands Recognized Scene Commands

    As Controller: On/Fast-On/Begin Brighten/End Brighten
    Off/Fast-Off/Begin Dim/End Dim/End Dim

    As Responder: On/Fast-On/Beep
    Off/Fast-Off
    Configuration Software based
    Electrical
    Power Outlets 1 x NEMA 5-15 type; controlled, grounded
    Load Types

    General Appliances: 15 A maximum
    Resistive: 15 A maximum
    Incandescent: 1,800 W maximum
    Motors: 1 HP maximum

    Minimum Load: None
    Maximum Load: 1,800 W
    Power Consumption <0.75 W
    Supply Voltage 120 VAC ± 10%, 50/60 Hz, single phase
    Surge Protection Resistance for surges over 1,000 V
    Mechanical
    Beeper Software configurable
    Beep on Button Press: Software configurable
    Technology Relay: On/Off only
    Enclosure Material UV stabilized plastic
    Mounting Grounded electrical outlet, NEMA 5-15
    Operating Environment Indoor
    Operating Temperature Range 32 to 104°F (0 to 40°C)
    Operating Humidity Range 0 to 90% relative humidity
    Storage Temperature Range -4 to 158°F (-20 to 70°C)
    Industry Canada (Communications) 5202A-26362
    FCC ID SBP26352
    Dimensions (W x H x D) 3.24 x 2.08 x 2.02" (8.25 x 5.30 x 5.15 cm) including protrusions
    Weight 5.2 oz (147.4 g)
    Packaging Info
    Package Weight 0.6 lb
    Box Dimensions (LxWxH) 7.402 x 7.323 x 2.677"
    The user manual for the INSTEON Dual Band On/Off Module 2635-292 can be downloaded in .pdf format if it did not come with your new power outlets, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other INSTEON users keep a unique electronic library for INSTEON power outletss, where you can use our link to download the user manual for the INSTEON Dual Band On/Off Module 2635-292.

    The user manual lists all of the functions of the INSTEON Dual Band On/Off Module 2635-292, all the basic and advanced features and tells you how to use the power outlets. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from INSTEON service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the INSTEON Dual Band On/Off Module 2635-292. User manuals are also available on the INSTEON website under Surveillance - Home Automation - Power Outlets.
