User manual Intel 120GB 530 Series mSATA PCIe Internal SSD SSDMCEAW120A401

Operating instructions and pdf manual for use - Intel 120GB 530 Series mSATA PCIe Internal SSD SSDMCEAW120A401 User manual, User manual Intel 120GB 530 Series mSATA PCIe Internal SSD SSDMCEAW120A401, Intel, 120GB, 530, Series, mSATA, PCIe, Internal


User manual for Intel 120GB 530 Series mSATA PCIe Internal SSD SSDMCEAW120A401

Intel 120GB 530 Series mSATA PCIe Internal SSD SSDMCEAW120A401
  • Manufacturer: Intel
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Drives & Storage - Internal Drives
  • Safety instructions
  • Startup and operation of the internal drives
  • Tips for setting up your Intel
  • Settings and expert assistance
  • Contact Intel service
  • Troubleshooting
  • Warranty information
  • Price: 95 USD

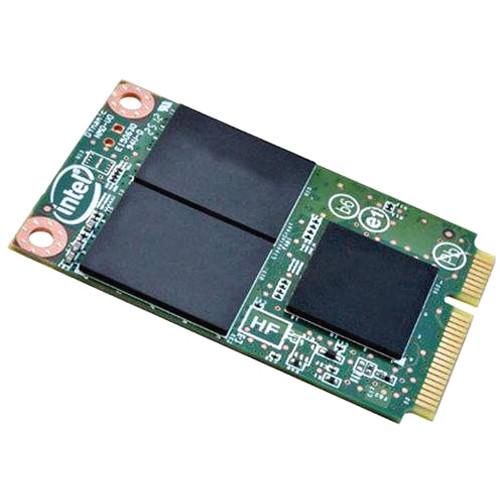

Intel 120GB 530 Series mSATA PCIe Internal SSD SSDMCEAW120A401 Intel 120GB 530 Series mSATA PCIe Internal SSD SSDMCEAW120A401 Intel 120GB 530 Series mSATA PCIe Internal SSD SSDMCEAW120A401 Intel 120GB 530 Series mSATA PCIe Internal SSD SSDMCEAW120A401
Click to enlarge image

We recommend checking out our discussion threads on the Intel 120GB 530 Series mSATA PCIe Internal SSD SSDMCEAW120A401, which address similar problems with connecting and setting up Internal Drives Intel.



User manual for the Intel 120GB 530 Series mSATA PCIe Internal SSD SSDMCEAW120A401

The user manual for the Intel 120GB 530 Series mSATA PCIe Internal SSD SSDMCEAW120A401 provides necessary instructions for the proper use of the product Computers & Solutions - Drives & Storage - Internal Drives.

The 120GB 530 Series mSATA PCIe Internal SSD from Intel allows you to store and quickly access up to 120GB of your files, be it movies, photos, music, documents, and much more. With solid-state drive technology and a SATA III 6 Gb/s interface, you benefit from load and access times for your files and programs that are faster than a conventional hard disk drive. In terms of speed, the drive offers sequential read times of 540 MB/s and sequential write times of 480 MB/s, as well as random reads up to 24,000 IOPS and random writes up to 80,000 IOPS (Input/Output Operations per Second). In addition to speed, the drive also offers security, optimization, and data-safety features. Since SSDs contain no mechanical parts, they are more durable against physical damage, including data loss and are not subject to the wear and tear that standard HDDs receive from read/write heads.
If you own a Intel internal drives and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Intel 120GB 530 Series mSATA PCIe Internal SSD SSDMCEAW120A401 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Intel 120GB 530 Series mSATA PCIe Internal SSD SSDMCEAW120A401:
Specifications
Capacity 120 GB
Form Factor mSATA
Interface SATA III 6 Gb/s
Sequential Read Up to 540 MB/s
Sequential Write Up to 480 MB/s
Random Read Up to 24,000 IOPS (4 KB data blocks across 8 GB drive span)
Random Write Up to 80,000 IOPS (4 KB data blocks across 8 GB drive span)
Read Latency 80 µs
Write Latency 85 µs
Hardware Encryption AES 256-bit
Lithography 20 nm
Mean Time Between Failures (MTBF) 1.2 million hours
Uncorrectable Bit Error Rate (UBER) < 1 sector per 1016 bits read
Power Consumption (Active) 140 mW
Power Consumption (Idle) 55 mW
Power Consumption (Sleep) 200 µW
Vibration (Operating) Maximum: 2.17 GRMS at 5 to 700 Hz
Vibration (Non-Operating) Maximum: 3.13 GRMS at 5 to 700 Hz
Shock (Operating and Non-Operating) Maximum: 1,000 G / 0.5 ms
Temperature (Operating) 32 to 158°F / 0 to 70°C
Temperature (Non-Operating) -67 to 203°F / -55 to 95°C
Weight < 0.4 oz / 10 g
The user manual for the Intel 120GB 530 Series mSATA PCIe Internal SSD SSDMCEAW120A401 can be downloaded in .pdf format if it did not come with your new internal drives, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Intel users keep a unique electronic library for Intel internal drivess, where you can use our link to download the user manual for the Intel 120GB 530 Series mSATA PCIe Internal SSD SSDMCEAW120A401.

The user manual lists all of the functions of the Intel 120GB 530 Series mSATA PCIe Internal SSD SSDMCEAW120A401, all the basic and advanced features and tells you how to use the internal drives. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Intel service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Intel 120GB 530 Series mSATA PCIe Internal SSD SSDMCEAW120A401. User manuals are also available on the Intel website under Computers & Solutions - Drives & Storage - Internal Drives.
