User manual Intel Core i7-6700 3.4 GHz Quad-Core Processor BX80662I76700

Operating instructions and pdf manual for use - Intel Core i7-6700 3.4 GHz Quad-Core Processor BX80662I76700 User manual, User manual Intel Core i7-6700 3.4 GHz Quad-Core Processor BX80662I76700, Intel, Core, i7-6700, 3.4, GHz, Quad-Core, Processor


User manual for Intel Core i7-6700 3.4 GHz Quad-Core Processor BX80662I76700

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.

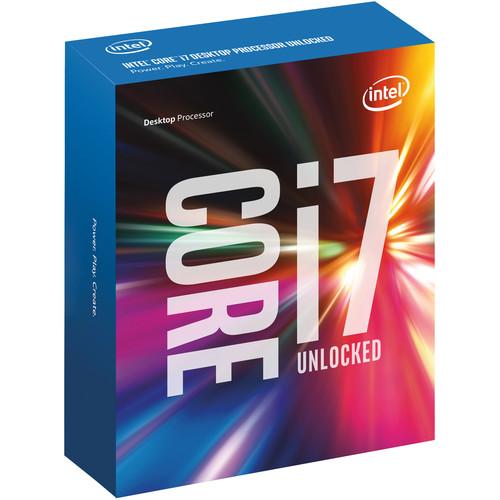

Intel Core i7-6700 3.4 GHz Quad-Core Processor BX80662I76700
  • Manufacturer: Intel
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Computer Components - CPU Processors
  • Safety instructions
  • Startup and operation of the cpu processors
  • Tips for setting up your Intel
  • Settings and expert assistance
  • Contact Intel service
  • Troubleshooting
  • Warranty information
  • Price: 350 USD
Intel Core i7-6700 3.4 GHz Quad-Core Processor BX80662I76700 Intel Core i7-6700 3.4 GHz Quad-Core Processor BX80662I76700 Intel Core i7-6700 3.4 GHz Quad-Core Processor BX80662I76700 Intel Core i7-6700 3.4 GHz Quad-Core Processor BX80662I76700
Click to enlarge image

We recommend checking out our discussion threads on the Intel Core i7-6700 3.4 GHz Quad-Core Processor BX80662I76700, which address similar problems with connecting and setting up CPU Processors Intel.



User manual for the Intel Core i7-6700 3.4 GHz Quad-Core Processor BX80662I76700

The user manual for the Intel Core i7-6700 3.4 GHz Quad-Core Processor BX80662I76700 provides necessary instructions for the proper use of the product Computers & Solutions - Computer Components - CPU Processors.

The Core i7-6700 3.4 GHz Quad-Core Processor from Intel is the sixth generation of the Core i7 product line that is now built using Skylake architecture. This processor features a base frequency of 3.4 GHz and, as with many Skylake technologies, it comes with features such as Intel Turbo Boost 2.0, Hyper-Threading, and vPro. With Intel Turbo Boost 2.0 technology, the maximum clock rate this processor can achieve is 4.0 GHz. Additionally, this processor also features four cores with eight threads in a FCLGA1151 socket and has 8MB of Intel Smart Cache memory. Having four cores allows the processor to run multiple programs simultaneously without slowing down the system, while the eight threads allow applications to complete tasks sooner by working in parallel. This processor also supports up to 64GB of DDR4-2133/1866 MHz and DDR3L 1600/1333 MHz RAM, has integrated Intel HD Graphics 530, and has SSE 4.1/4.2 & AVX 2.0 Extensions, as well as AES New Instructions.

This Intel Core i7-6700 3.4 GHz Quad-Core processor is well suited for users who are interested in general-use tasks, such as Internet browsing, checking E-mail, document creation and editing, and multimedia playback, as well as more intensive tasks that are able to benefit from overclocking. This processor is also unlocked, meaning that it can be overclocked past its maximum turbo frequency. However, overclocking past the maximum turbo frequency is not recommended. Not only will it cause the processor to run much hotter, it will also void your warranty.
If you own a Intel cpu processors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Intel Core i7-6700 3.4 GHz Quad-Core Processor BX80662I76700 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Intel Core i7-6700 3.4 GHz Quad-Core Processor BX80662I76700:
Specifications
Essentials
Processor Number i7-6700
Intel Smart Cache 8 MB
# of QPI Links 0
Instruction Set 64-bit
Instruction Set Extensions SSE4.1/4.2 AVX 2.0
Embedded Options Available No
Lithography 14 nm
Scalability 1S Only
Thermal Solution Specification PCG 2015C (65 W)
Conflict Free Yes
Performance
# of Cores 4
# of Threads 8
Processor Base Frequency 3.4 GHz
Max Turbo Frequency 4.0 GHz
TDP 65 W
Memory Specifications
Max Memory Size 64 GB
Memory Types DDR4-1966/2133, DDR3L 1333/1600 @ 1.35 V
Max # of Memory Channels 2
Max Memory Bandwidth 34.1 GB/s
ECC Memory Supported No
Graphics Specifications
Processor Graphics Intel HD Graphics 530
Graphics Base Frequency 350 MHz
Graphics Max Dynamic Frequency 1.15 GHz
Graphics Video Max Memory N/A
Graphics Output eDP/DP/HDMI/VGA/DVI
Execution Units N/A
4K Support Yes, at 60 Hz
Max Resolution (HDMI 1.4) 4096 x 2160 @ 24 Hz
Max Resolution (DP) 4096 x 2160 @ 60 Hz
Max Resolution (eDP - Integrated Flat Panel) 4096 x 2304 @ 60 Hz
Max Resolution (VGA) N/A
DirectX Support 11.2
OpenGL Support 4.3
Intel Quick Sync Video Yes
Intel InTru 3D Technology Yes
Intel Insider Yes
Intel Wireless Display Yes
Intel Clear Video HD Technology Yes
Intel Clear Video Technology Yes
Number of Displays Supported 3
Device ID 1912
Expansion Options
PCI Express Revision 3.0
PCI Express Configurations Up to 1x16 2x8 1x8+2x4
Max # of PCI Express Lanes 16
Package Specifications
Max CPU Configuration 1
Package Size 37.5 x 37.5 mm
Graphics and IMC Lithography 14 nm
Sockets Supported FCLGA1151
Low Halogen Options Available See MSDS
Advanced Technologies
Intel Turbo Boost Technology 2.0
Intel vPro Technology No
Intel Hyper-Threading Technology Yes
Intel Virtualization Technology (VT-x) Yes
Intel Virtualization Technology for Directed I/O Yes
Intel VT-x with Extended Page Tables (EPT) Yes
Intel TSX-NI Yes
Intel 64 Yes
Intel My WiFi Technology Yes
Idle States Yes
Enhanced Intel SpeedStep Technology Yes
Intel Fast Memory Access Yes
Intel Virtualization Technology for Itanium (VT-i) No
Intel Stable Image Platform Program (SIPP) No
Intel Small Business Advantage No
Intel Data Protection Technology
AES New Instructions Yes
Secure Key Yes
Intel SGX (Software Guard Extensions) 1
Intel Platform Protection Technology
OS Guard Yes
Trusted Execution Technology No
Execute Disable Bit Yes
Anti-Theft Technology Yes
Packaging Info
Package Weight 0.65 lb
Box Dimensions (LxWxH) 4.6 x 4.4 x 3.2"
The user manual for the Intel Core i7-6700 3.4 GHz Quad-Core Processor BX80662I76700 can be downloaded in .pdf format if it did not come with your new cpu processors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Intel users keep a unique electronic library for Intel cpu processorss, where you can use our link to download the user manual for the Intel Core i7-6700 3.4 GHz Quad-Core Processor BX80662I76700.

The user manual lists all of the functions of the Intel Core i7-6700 3.4 GHz Quad-Core Processor BX80662I76700, all the basic and advanced features and tells you how to use the cpu processors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Intel service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Intel Core i7-6700 3.4 GHz Quad-Core Processor BX80662I76700. User manuals are also available on the Intel website under Computers & Solutions - Computer Components - CPU Processors.
