User manual Intel DC S3700 Series 800GB 2.5" SATA 6 SSDSC2BA800G301

Operating instructions and pdf manual for use - Intel DC S3700 Series 800GB 2.5" SATA 6 SSDSC2BA800G301 User manual, User manual Intel DC S3700 Series 800GB 2.5" SATA 6 SSDSC2BA800G301, Intel, DC, S3700, Series, 800GB, 2.5, SATA, 6, SSDSC2BA800G301


User manual for Intel DC S3700 Series 800GB 2.5" SATA 6 SSDSC2BA800G301

Intel DC S3700 Series 800GB 2.5
  • Manufacturer: Intel
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Drives & Storage - Internal Drives
  • Safety instructions
  • Startup and operation of the internal drives
  • Tips for setting up your Intel
  • Settings and expert assistance
  • Contact Intel service
  • Troubleshooting
  • Warranty information

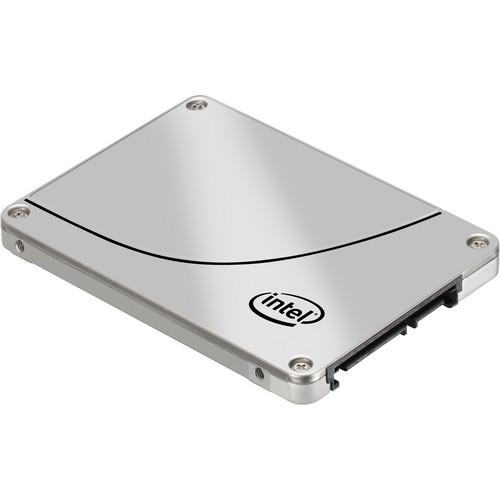

Intel DC S3700 Series 800GB 2.5 Intel DC S3700 Series 800GB 2.5 Intel DC S3700 Series 800GB 2.5
Click to enlarge image

We recommend checking out our discussion threads on the Intel DC S3700 Series 800GB 2.5" SATA 6 SSDSC2BA800G301, which address similar problems with connecting and setting up Internal Drives Intel.



User manual for the Intel DC S3700 Series 800GB 2.5" SATA 6 SSDSC2BA800G301

The user manual for the Intel DC S3700 Series 800GB 2.5" SATA 6 SSDSC2BA800G301 provides necessary instructions for the proper use of the product Computers & Solutions - Drives & Storage - Internal Drives.

The DC S3700 Series 800GB 2.5" SATA 6 Gb/s MLC Solid State Drive from Intel features a SATA 6 Gb/s interface with 800GB storage capacity. With regard to processing strength, this drive offers sequential read speeds of 500 MB/s and sequential write speeds of 460 MB/s. It is capable of random read speeds of 75000 IOPS and random write speeds of 36000 IOPS. The drive comes with Enhanced Power Loss Data Protection technology which prepares the solid state drive for unexpected system power loss. It also features High Endurance Technology (HET) that combines Intel NAND Flash Memory silicon enhancements and solid state drive system management techniques to help extend the endurance of the drive.
If you own a Intel internal drives and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Intel DC S3700 Series 800GB 2.5" SATA 6 SSDSC2BA800G301 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Intel DC S3700 Series 800GB 2.5Download user manual for Intel DC S3700 Series 800GB 2.5" SATA 6 SSDSC2BA800G301
(PDF file, 0.59 MB)
Additional parameters of the Intel DC S3700 Series 800GB 2.5" SATA 6 SSDSC2BA800G301:
Specifications
    Performance
    Interface SATA 6 Gb/s
    Capacity 800 GB
    Form Factor 2.5"
    Lithography 25 nm
    Components Intel NAND Flash Memory Multi-Level Cell (MLC) technology
    Essentials
    Sequential Read 500 MB/s
    Sequential Write 460 MB/s
    Random Read 75000 IOPS (100% Span)
    Random Write 36000 IOPS (100% Span)
    Latency Read: 50 µs
    Write: 65 µs
    Power Active: 6 W
    Idle: 650 mW
    Vibration Operating: 2.17 GRMS (5 to 700 Hz)
    Non-Operating: 3.13 GRMS (5 to 800 Hz)
    Shock (Operating and Non-Operating) 1,000 G at 0.5 ms
    Operating Temperature 32 to 158°F (0 to 70°C)
    Endurance Rating (Lifetime Writes) 10 drive writes/day for 5 years
    Mean Time Between Failures (MTBF) 2 million hours
    Uncorrectable Bit Error Rate 1 sector/1017-bits read
    Technology
    Advanced Technologies Enhanced Power Loss Data Protection
    Hardware Encryption: AES 256-bit
    High Endurance Technology (HET)
    Temperature Monitoring and Logging
    General
    Weight 2.6 ± 0.07 oz (73.6 ± 2 g)
    Packaging Info
    Package Weight 0.25 lb
    Box Dimensions (LxWxH) 6.0 x 4.3 x 0.9"
    The user manual for the Intel DC S3700 Series 800GB 2.5" SATA 6 SSDSC2BA800G301 can be downloaded in .pdf format if it did not come with your new internal drives, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Intel users keep a unique electronic library for Intel internal drivess, where you can use our link to download the user manual for the Intel DC S3700 Series 800GB 2.5" SATA 6 SSDSC2BA800G301.

    The user manual lists all of the functions of the Intel DC S3700 Series 800GB 2.5" SATA 6 SSDSC2BA800G301, all the basic and advanced features and tells you how to use the internal drives. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Intel service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Intel DC S3700 Series 800GB 2.5" SATA 6 SSDSC2BA800G301. User manuals are also available on the Intel website under Computers & Solutions - Drives & Storage - Internal Drives.
