User manual for the Intova CONNEX Action Camera CONNEX

The user manual for the Intova CONNEX Action Camera CONNEX provides necessary instructions for the proper use of the product Camcorders - Sports & Action Cameras.

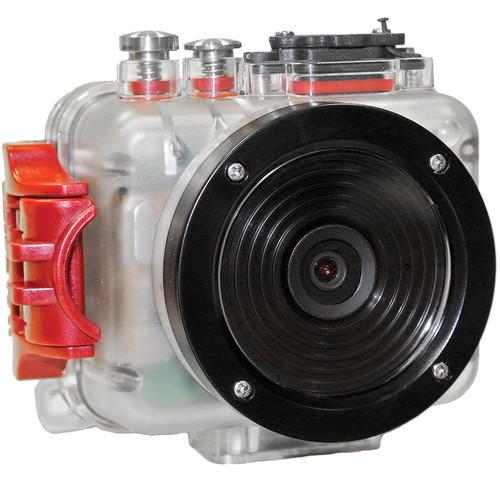

Geared especially for underwater photo and video shooting, the CONNEX Action Camera from Intova features an integrated housing that is waterproof to 200' and can be tethered to an underwater control cable (available separately) for operation, powering, and monitoring at the surface. Among the video settings are Full HD 1080p at 30 fps, 720p at up to 60 fps, plus it can take still photos at up to 12-megapixels when using interpolation (up to 5-megapixel without interpolation). A 1.5" built-in LCD screen allows you to compose shoots, review footage and delete outtakes once it has been recorded, and navigate the menu.

Video and photo both get recorded to a separately available microSDHC card, and the camera is compatible with sizes up to 32GB. The backdoor of the housing opens for access to the card as well as the micro-USB port used for charging the battery and file transfer. Camera settings, record start/stop, and the shutter release can all be controlled while the housing is sealed. For situations where the camera isn't directly accessible, a waterproof RF remote with built-in strap is included.
If you own a Intova sports & action cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Intova CONNEX Action Camera CONNEX in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Intova CONNEX Action Camera CONNEX:
Specifications
    Camera
    Sensor 1x 5.0 Megapixel 1/2.5"  CMOS Sensor
    Optics
    Focal Length 3.35 mm
    Maximum Aperture f/ 2.4
    Angle of View 140°
    Zoom Digital: 4x
    Recording
    System NTSC/PAL
    Recording Media microSD/HC Up To 32 GB

    Minimum Class 6; Class 10 or higher required for HD video

    Recording Time microSD/SDHC 4 GB
    1920 x 1080 30p: Super Fine: 42 minutes; Fine: 50 minutes; Normal: 63 minutes
    1280 x 720 60p: Super Fine: 50; Fine: 56; Normal: 84
    1280 x 720 30p: Super Fine: 63; Fine: 84; Normal: 127
    848 x 480 60p: Super Fine: 63; Fine: 84; Normal: 127
    Video Format High Definition
    MP4
    1920 x 1080p / 30 fps / 25 fps
    High Definition
    MP4
    1280 x 720p / 60 fps / 50 fps
    High Definition
    H.264
    1280 x 720p / 30 fps / 25 fps
    Standard Definition
    MP4
    848 x 480p / 60 fps / 30 fps
    Standard Definition
    MP4
    640 x 480p / 30 fps / 25 fps
    Aspect Ratio 16:9
    4:3
    Still Image Resolution JPEG: 12 Megapixel, 4000 x 3000 (4:3)
    JPEG: 8 Megapixel, 3200 x 2400 (4:3)
    JPEG: 5 Megapixel, 2592 x 1944 (4:3)
    JPEG: 3 Megapixel, 2048 x 1536 (4:3)

    Resolution higher than 5 MP rely on interpolation

    Display
    Display Type LCD
    Resolution 480 x 240
    Aspect Ratio 2:1
    Features
    Waterproof Depth Rating 200.0' / 60.0 m (Camera)
    White Balance Modes Underwater
    Built-in Mic Yes
    Input/Output Connectors
    Outputs 1x Composite Video (out) Requires HD Underwater Video Cable (available separately)
    1x Composite Video (out) Requires SD Underwater Video Cable (available separately)
    1x HDMI C (Mini)
    1x USB Mini-B
    General
    Battery Rechargeable Battery Pack, 3.7 VDC, 1450 mAh,
    Providing up to 3 Hours per Charge
    Charging Method USB
    Charging Time 6 hours
    Power Adapter 12 VDC

    Separately available 12 VDC power source required when using optional Underwater Video Cable. For charging/powering with camera at the surface, any USB power source may be used.

    Power Consumption Operating:1.6 W
    Dimensions (WxHxD) 23.3 x 2.8 x 2.4" / 591.8 x 71.1 x 61.0 mm
    Weight 6 oz / 170 g
    Packaging Info
    Package Weight 1.05 lb
    Box Dimensions (LxWxH) 7.1 x 5.0 x 3.4"
    The user manual for the Intova CONNEX Action Camera CONNEX can be downloaded in .pdf format if it did not come with your new sports & action cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Intova users keep a unique electronic library for Intova sports & action camerass, where you can use our link to download the user manual for the Intova CONNEX Action Camera CONNEX.

    The user manual lists all of the functions of the Intova CONNEX Action Camera CONNEX, all the basic and advanced features and tells you how to use the sports & action cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Intova service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Intova CONNEX Action Camera CONNEX. User manuals are also available on the Intova website under Camcorders - Sports & Action Cameras.
