User manual Intova Sport HD EDGE Waterproof Action Full HD Camera SP HDE

Operating instructions and pdf manual for use - Intova Sport HD EDGE Waterproof Action Full HD Camera SP HDE User manual, User manual Intova Sport HD EDGE Waterproof Action Full HD Camera SP HDE, Intova, Sport, HD, EDGE, Waterproof, Action, Full, H


User manual for Intova Sport HD EDGE Waterproof Action Full HD Camera SP HDE

Overall rating 3.5
Overall Rating: 3.5

70% of respondents would recommend this to a friend.
Intova Sport HD EDGE Waterproof Action Full HD Camera SP HDE
  • Manufacturer: Intova
  • Basic description and contents of package
  • Product classification: Camcorders - Sports & Action Cameras
  • Safety instructions
  • Startup and operation of the sports & action cameras
  • Tips for setting up your Intova
  • Settings and expert assistance
  • Contact Intova service
  • Troubleshooting
  • Warranty information
  • Price: 199 USD
We recommend checking out our discussion threads on the Intova Sport HD EDGE Waterproof Action Full HD Camera SP HDE, which address similar problems with connecting and setting up Sports & Action Cameras Intova.



User manual for the Intova Sport HD EDGE Waterproof Action Full HD Camera SP HDE

The user manual for the Intova Sport HD EDGE Waterproof Action Full HD Camera SP HDE provides necessary instructions for the proper use of the product Camcorders - Sports & Action Cameras.

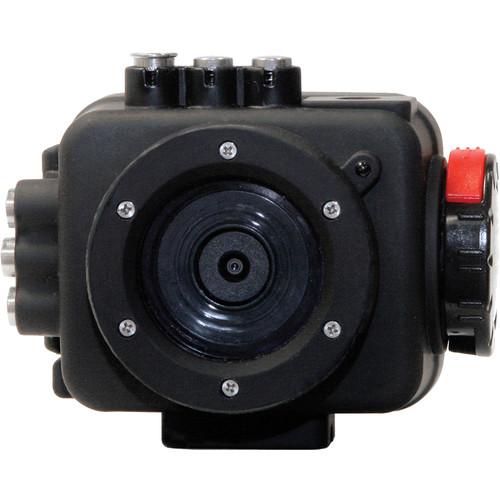

The Sport HD EDGE Waterproof Action Full HD Camera from Intova features a "unibody" design that seals the camera electronics directly inside an underwater housing which is rated down to 200'. Featuring a 1/2.3" CMOS sensor, the Sport HD EDGE can capture Full HD video at up to 1080p and 30 frames per second and shoot up to 14MP JPEG still photos. It also features a slow motion mode that captures SD 480p video at 120 frames per second. To make web-friendly copies of your video right away, the Dual Stream Mode allows a low-res copy to be recorded alongside the high quality "master". Built-in Wi-Fi allows the camera to be controlled from a mobile device, and footage can even be off-loaded wirelessly for immediate sharing.

In photo and video modes that take advantage of the whole sensor, the Sport HD EDGE's ultra wide angle 3.5mm lens provides a 160° field-of-view to help ensure none of the action will be cut out of the frame. The aperture is fixed at f/2.8 to help provide the sensor with as much light as it can get to work with for low-light situations. The lens is fixed with no zoom, but to get a closer shot without cropping in post, you can enable either 10x or 60x digital zoom depending on your preference.

A 1/4"-20 socket means you can mount the Sport HD EDGE on just about any tripod, monopod, suction cup, or other standard camera support accessory. The camera records internally to microSD/SDHC memory cards, and supports sizes up to 32GB.
If you own a Intova sports & action cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Intova Sport HD EDGE Waterproof Action Full HD Camera SP HDE in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Intova Sport HD EDGE Waterproof Action Full HD Camera SP HDEDownload user manual for Intova Sport HD EDGE Waterproof Action Full HD Camera SP HDE
(PDF file, 1.4 MB)
Additional parameters of the Intova Sport HD EDGE Waterproof Action Full HD Camera SP HDE:
Camera
Sensor 1x 11 Megapixel 1/2.3"  CMOS Sensor
Optics
Focal Length 3.5 mm
Maximum Aperture f/ 2.8
Angle of View 160°

At specific camera settings only

Zoom Digital: 10x
Digital: 60x
Recording
System NTSC
Recording Media microSD/HC Up To 32 GB

Requires Class 6 or Class 10

Video Format High Definition
H.264
1920 x 1080p / 30 fps
1280 x 960p / 48 fps
1280 x 960p / 30 fps
High Definition
H.264
1280 x 720p / 60 fps
1280 x 720p / 30 fps
720 x 480p / 60 fps
Aspect Ratio 16:9
4:3
Slow Motion Mode 120 fps recorded @ 720 x 480p
Still Image Resolution JPEG: 14 Megapixel, 4288 x 3216 (4:3)
JPEG: 11 Megapixel, 3840 x 2880 (4:3)
JPEG: 8 Megapixel, 3264 x 2448 (4:3)
JPEG: 5 Megapixel, 2592 x 1944 (4:3)

14 MP achieved via interpolation; 11 MP is the maximum non-interpolated resolution

Audio Format Not Specified By Manufacturer
Display
Display Type LCD
Screen Size 1.5"
Pixel Count 115,200
Resolution 480 x 240
Exposure Control
Interval Recording 1 sec
2 sec
5 sec
10 sec
30 sec
60 sec
Features
Waterproof Depth Rating 200.0' / 60.0 m (Camera)
White Balance Modes Manual
Built-in Mic Yes
Wi-Fi Yes
Accessory Shoe None
Tripod Mount 1/4" - 20
Input/Output Connectors
Outputs 1x USB Micro-B
1x HDMI D (Micro)
Microphone Input Yes

Via USB; adapter available separately

General
System Requirements Windows
  • XP (SP2)
    Vista
    7
    8
  • Pentium 4 3.2GHz Processor or greater
  • 1 GB RAM
  • USB 2.0 Interface
  • 1024 x 768 Pixel Resolution

Mac
  • OS X 10.4.11
  • Core 2 Duo Processor or greater
  • 1 GB RAM
  • 1024 x 768 Pixel Resolution

Minimum to operate codec; specific video applications may have stricter requirements

Battery Rechargeable Lithium-Ion Battery Pack, 3.7 VDC, 1150 mAh,
Providing up to 1.5 Hours per Charge

Up to 2 hours with LCD screen OFF

Charging Method USB
Charging Time 6 hours
Power Adapter 5 VDC
Power Consumption Operating:1.9 W
Dimensions (WxHxD) 2.8 x 3.3 x 2.4" / 7.1 x 8.4 x 6.1 cm
Weight 7.09 oz / 201 g
Packaging Info
Package Weight 1.5 lb
Box Dimensions (LxWxH) 7.5 x 5.0 x 5.0"
The user manual for the Intova Sport HD EDGE Waterproof Action Full HD Camera SP HDE can be downloaded in .pdf format if it did not come with your new sports & action cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Intova users keep a unique electronic library for Intova sports & action camerass, where you can use our link to download the user manual for the Intova Sport HD EDGE Waterproof Action Full HD Camera SP HDE.

The user manual lists all of the functions of the Intova Sport HD EDGE Waterproof Action Full HD Camera SP HDE, all the basic and advanced features and tells you how to use the sports & action cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Intova service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Intova Sport HD EDGE Waterproof Action Full HD Camera SP HDE. User manuals are also available on the Intova website under Camcorders - Sports & Action Cameras.
