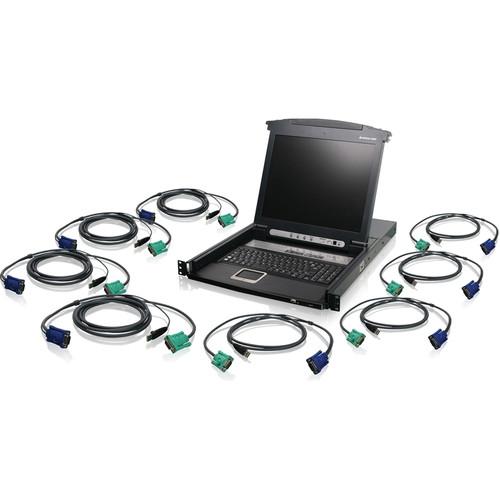

The Iogear 8-Port LCD Combo KVM Switch with USB KVM Cables integrates a keyboard, a sliding / retractable 17" (43.18 cm) TFT LCD Active Matrix monitor, a touchpad and an 8-port KVM switch in a universal 1U rack mount space. In addition, it comes with a USB cable and 8 PS/2 KVM cables, and is compatible with Windows, Mac, Sun Solaris and Linux platforms. The 8-port KVM (keyboard, video, and mouse) switch can be connected to 8 VGA, USB or PS/2 ports. Moreover, up to 8 additional compatible KVM switches can be cascaded together, allowing you to control up to 128 computers from a single KVM console.
Equipped with an additional USB / PS/2 console port on the rear panel, the LCD Combo Console allows you to manage the LCD KVM switch from an external console (monitor, keyboard, and mouse), and also supports an external USB mouse. The front panel pushbutton LEDs, intuitive On Screen Display (OSD) and hotkeys enable you to quickly access a given computer. The OSD comes with 2-level password protection for enhanced security.
The 17" LCD Combo Console's depth can be easily adjusted, allowing it to fit racks of different sizes. With a resolution of 1280x1024 pixels, the monitor displays clear and crisp images. With DDC emulation, the video settings of each computer are automatically adjusted for optimal output to the monitor. Featuring an auto-sensing function, Custom ASIC helps recognize the position of each station on the installation. The console fully supports the DDC2B protocol.
If you own a IOGEAR lcd consoles and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the IOGEAR 8-Port LCD Combo KVM Switch with USB KVM GCL1808KITU in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the IOGEAR 8-Port LCD Combo KVM Switch with USB KVM GCL1808KITU:
Specifications
Computer Connections
Direct: 8 Daisy Chain or Cascading: 128
Port Selection
OSD, Hotkeys, Pushbuttons
Connectors
Console: 1 x SPHD-18 Male Power: 1 x 3-Prong AC Socket
Console Connectors
Monitor: 1 x HDB-15 Female Keyboard: PS/2 or USBMouse: S/2 or USBExtra Mouse: 1 x USB Type A FemaleFlash ROM Upgrade: 1 x RJ-11 Female
CPU Connectors
Keyboard, Mouse, and Monitor: 8 x SPHD-15 Female
Switches
Reset: 1 x Semi-recessed Pushbutton Power: 1 x Rocker Switch F/W Upgrade: 1 x Switch LCD Adjustment: 4 x Pushbutton LCD Power: 1 x LED Pushbutton (Orange) Port Selection: 4 x Pushbutton
LEDs
On Line: 8 (Orange) Port ID: 4 x 7 Segment LED Display (Yellow) Power On: Dark Green
Emulation
Keyboard: PS/2, USB Mouse: PS/2, USB
Video Resolution
1280 x 1024 @ 75Hz; DDC2B
Scan Interval
1-255 Seconds
Power Input Rating
Per AC Power Inlet, 50/60Hz: 100-240VAC. 50/60Hz, 1A
Power Consumption
120V, 28W
Environment
Operation Temperature: 32 to 104°F (0 to 40°C) Storage Temperature: 68 to 140°F (-20 to 60°C) Humidity: 0-80% RH; Non-condensing
Housing
Case: Metal and Plastic
Requirements
VGA, SVGA, or MultiSync video graphics card with an HDB-15 port PS/2 mouse and keyboard ports (6-pin mini DIN) or 1 USB port
Dimensions (WxHxD)
19 x 1.75 x 25" ( 48.26 x 4.44 x 63.5 cm)
Weight
Unit Pack Wt: 51.63 lb (23.4 kg) Unit Wt w/accessories: 36.67 lb (16.63 kg) Unit Wt: 27.78 lb (12.6 kg)
