User manual for the iOptron iEQ30 Pro EQ GoTo Mount with 1.5" Tripod 3000E-HC
The user manual for the iOptron iEQ30 Pro EQ GoTo Mount with 1.5" Tripod 3000E-HC provides
necessary instructions for the proper use of the product Optics - Telescopes - Mounts.

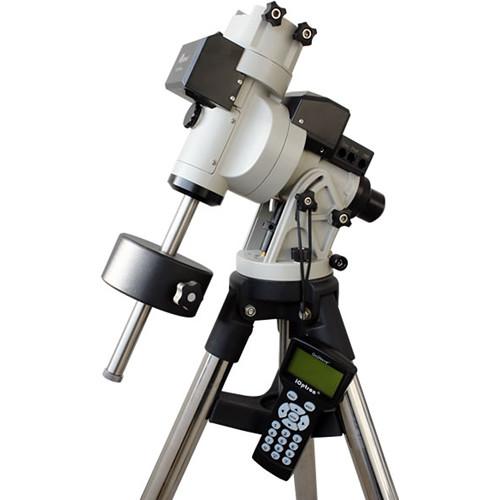

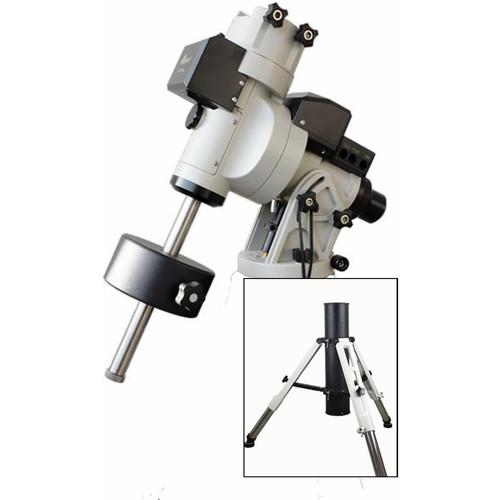

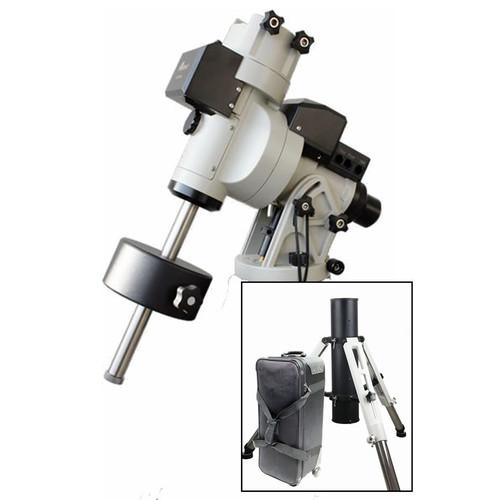

The iEQ30 Pro EQ GoTo Mount from iOptron features a motorized equatorial mount, the Go2Nova 8407+ computer hand controller, a 1.5" stainless steel adjustable tripod, and a Polar axis scope for faster alignment and set-up. The mount has a Vixen style dovetail saddle for mounting compatible telescope OTAs and accessories of up to 30 pounds. Its built-in 32-channel GPS receiver sends your location and time to the Go2Nova hand controller for a more accurate and faster set up and alignment.
If you own a iOptron mounts and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the iOptron iEQ30 Pro EQ GoTo Mount with 1.5" Tripod 3000E-HC in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the iOptron iEQ30 Pro EQ GoTo Mount with 1.5" Tripod 3000E-HC:
Specifications
Mount Type
German equatorial mount
Load Capacity
30 lb / 13.5 kg
Gear
Right ascension: 180 teeth Declination: 144 teeth
Resolution
0.14 arc seconds (256 PPS)
Adjustment Range
Latitude: 0 to 65° Azimuth: ±6°
GPS
32-channel, internal
Motor
1.8° stepper motor, 128 microdivision Motor control: open loop
Transmission
48MXL synchronous belt
Tracking Rates
Sidereal, solar, lunar, King, user Meridian treatment: 1. Stop: 0 to 15° pass 2. Auto flip
Mount: 15 lb (6.8 kg) Tripod: 10.6 lb (4.8 kg) Counterweight: 9.9 lb (4.5 kg)
The user manual for the iOptron iEQ30 Pro EQ GoTo Mount with 1.5" Tripod 3000E-HC can be downloaded in .pdf
format if it did not come with your new mounts, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other iOptron users keep a unique electronic library
for iOptron mountss,
where you can use our link to download the user manual for the iOptron iEQ30 Pro EQ GoTo Mount with 1.5" Tripod 3000E-HC.
The user manual lists all of the functions of the iOptron iEQ30 Pro EQ GoTo Mount with 1.5" Tripod 3000E-HC,
all the basic and advanced features and tells you how to use the mounts.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from iOptron service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the iOptron iEQ30 Pro EQ GoTo Mount with 1.5" Tripod 3000E-HC. User manuals are also
available on the iOptron website under Optics - Telescopes - Mounts.
