User manual for the IQinVision IQ865NE-V6 IQeye Sentinel Megapixel IQ865NE-V6
The user manual for the IQinVision IQ865NE-V6 IQeye Sentinel Megapixel IQ865NE-V6 provides
necessary instructions for the proper use of the product Surveillance - Surveillance Video - Wired IP Cameras.

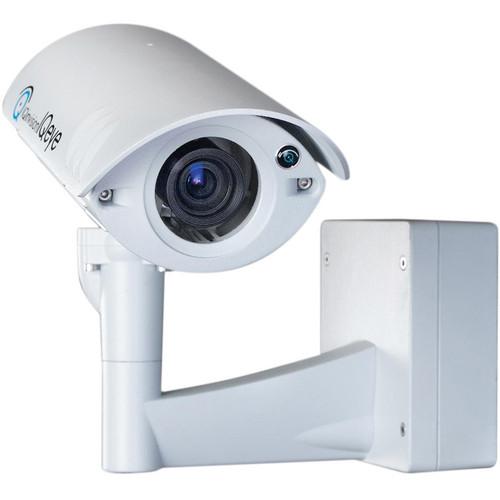

The IQ865NE-V6 IQeye Sentinel Megapixel Outdoor IP Camera with V6 Lens from IQinVision is an ideal choice for 24/7 surveillance under extreme weather conditions. The camera’s aluminum casing is IP66 and NEMA 4 rated, which indicates that the camera is protected against corrosion, windblown dust and rain, splashing water, hose-directed water, and damage from frost. Additionally, the Sentinel camera has a built-in heater that ensures smooth operation of the camera even under freezing temperatures up to -22°F (-30°C).
With its 1/2.5" CMOS sensor, this security camera captures clear images at a resolution of up to 5 MP.In addition, the camera's 12 to 40mm telephoto lens with a 28° wide and 9° tele FOV ensures coverage of wide surveillance areas.
|
If you own a IQinVision wired ip cameras and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the IQinVision IQ865NE-V6 IQeye Sentinel Megapixel IQ865NE-V6 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the IQinVision IQ865NE-V6 IQeye Sentinel Megapixel IQ865NE-V6:
| Sensor | 1/2.5" CMOS | | H.264 Profile | Main | | Compression | H.264 & MJPEG
H.264 profile: Main | | JPEG Compression Quality Settings | User configurable | | Shutter Speed | Auto / Programmable / Fixed | | Image Settings | Saturation, Contrast, Brightness, Sharpness, Lightgrabber II | | Exposure | User configurable | | White Balance | Auto/Programmable | | Backlight Compensation | Auto | | IR Range | 800 to 940 nm | | Maximum Resolution | 5 MP - 2592 x 1944 | | Frame Rate | 10 fps | | Minimum Illumination | Color: 0.3 lux
B&W: lesser than 0.05 lux | | Lens | 1/2" 12 to 40 mm telephoto lens | | Maximum HFOV | Telephoto: 9° and wide: 28° | | Aperture | F1.8 | | Iris Operation | Manual | | Lens Mount | CS | | Day/Night | Yes | | Virtual Camera | User configurable windows | | Image Crop | User configurable windows | | Motion Detection | User configurable windows | | Access Control | Access hours: User configurable | | Recording | User configurable time lapse & event based recording | | Rotate | 180°, horizontal & vertical | | Digital Flip | 180°, horizontal & vertical | | Focus Assist | Remote back focus with One-Touch-Focus | | Embedded Analytics | Yes | | Supported Apps | IQaccess, IQrecorder, IQevent | | System Integration | ONVIF, PSIA, IQfinder, IQmanager, IQsentry, DTS (Direct-to-Storage) | | Supported Protocols | TCP/IP, HTTP, HTTPS, DHCP, UDP, RTP, RTSP, DNS, ARP, ICMP, NTP, UPnP, ZeroConf, APIPA, CIFS,SNMP, UDP multicast, FTP, SMTP, Telnet | | Password Protection | Secure Multi-level | | Input Power | Power over Ethernet 802.3af Class 3, 24 VAC, 12 to 24 VDC | | Power Consumption | <8 W including heater | | AC | 50/60 Hz selectable | | Network Interface | RJ45 10Base-T/100Base-TX | | I/O Support | 1 input, 1 output | | Ingress Protection Rating | IP66 & NEMA 4 | | Approvals | FCC, CE, UL, cUL | | Temperature Range | -22 to 122˚F (-30 to 50˚C) | | Dimensions | Front (L x W): 9.58 x 4.64" (243.3 x 118 mm)
Side (L x W): 9.58 x 8.35" (243.3 x 212 mm)
Back (L x W): 9.58 x 4.64" (243.3 x 118 mm) | | Weight | 100.14 oz (2839 g) | | Package Weight | 7.75 lb | | Box Dimensions (LxWxH) | 12.6 x 10.7 x 8.2" | |
The user manual for the IQinVision IQ865NE-V6 IQeye Sentinel Megapixel IQ865NE-V6 can be downloaded in .pdf
format if it did not come with your new wired ip cameras, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other IQinVision users keep a unique electronic library
for IQinVision wired ip camerass,
where you can use our link to download the user manual for the IQinVision IQ865NE-V6 IQeye Sentinel Megapixel IQ865NE-V6.
The user manual lists all of the functions of the IQinVision IQ865NE-V6 IQeye Sentinel Megapixel IQ865NE-V6,
all the basic and advanced features and tells you how to use the wired ip cameras.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from IQinVision service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the IQinVision IQ865NE-V6 IQeye Sentinel Megapixel IQ865NE-V6. User manuals are also
available on the IQinVision website under Surveillance - Surveillance Video - Wired IP Cameras.
