User manual for the IQinVision IQeye Alliance-mini II Series IQD53WV-B7 IQD53WV-B7

The user manual for the IQinVision IQeye Alliance-mini II Series IQD53WV-B7 IQD53WV-B7 provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Wired IP Cameras.

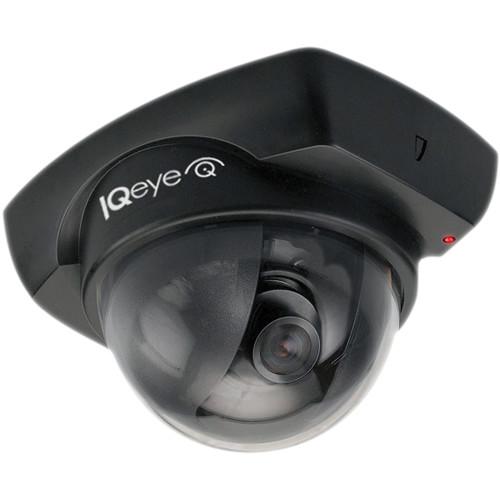

The IQeye Alliance-mini II Series IQD53WV-B7 3MP H.264 Vandal-Resistant PoE IP Dome Camera with 3 to 6mm Varifocal Lens from IQinVision uses H.264 compression to provide high-quality megapixel images while utilizing low network bandwidth. In addition to the processing power needed to run VMS applications at the edge, it features WDR, on-camera storage (micro SDHC card slot), and true day/night capability. Both ONVIF and PSIA compliant, the camera has been designed for indoor applications and works seamlessly with nearly all leading NVR/VMS providers.
If you own a IQinVision wired ip cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the IQinVision IQeye Alliance-mini II Series IQD53WV-B7 IQD53WV-B7 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the IQinVision IQeye Alliance-mini II Series IQD53WV-B7 IQD53WV-B7:
Camera
Sensor 1/3" CMOS
Resolution 3 MP, 2048 x 1536
Frame Rate 20 fps maximum
Video Compression H.264 (Main profile) and MJPEG
JPEG Compression Quality Settings User configurable
Day/Night Yes
Sensitivity Color: 0.2 lux
B&W: <0.05 lux
IR Range Sensor: 800 to 940 nm
Dynamic Range 100 dB (WDR sensor)
Shutter Speed 1/20,000 sec (auto / programmable / fixed)
Lens Format: 1/3" M12
Focal Length: 3 to 6mm
Aperture: f/2.0
Angle of View: 88° (W), 49° (T)
Event Management
Motion Detection Multi-zone (user configurable windows)
Recording Time Lapse and Event Based: User configurable
Analytics Yes
Imaging
White Balance Auto / programmable
Exposure User configurable
Backlight Compensation Auto / off
Image Settings Saturation, contrast, brightness, sharpness, Lightgrabber II
Image Orientation 180°, horizontal, vertical
Corridor Format Option: Yes (up to HD 1080p)
Audio
Audio Support Two-way, G.711 PCM 8 kHz
I/O Built-in microphone, mic/line in, line out
Network
Interface RJ45, 10Base-T / 100Base-TX
Supported Protocols TCP/IP, HTTP, HTTPS, DHCP, UDP, RTP, RTSP, DNS, ARP, ICMP, NTP, UPnP, ZeroConf, APIPA, UDP multicast, SNMP, SMTP, Telnet, CIFS
Password Protection Secure multi-level
Power
Input Power Power over Ethernet 802.3af class 2
Consumption <4 W, typical
AC Power 50 / 60 Hz selectable
General
Local Storage Micro SD class 10 UHS (card not included)
Compatible Card Sizes: 8, 16, 32, 64, and 128 GB

64 and 128 GB cards require firmware v4.0/050 or higher. Kingston memory cards will not function properly.

Utilities IQfinder, IQmanager, IQevent, Direct-to-Storage (DTS)
System Integration exacqVision Edge (SW license, network time server required), Agent Vi (SW license required)
Approvals FCC, CE, UL, cUL, RoHS 2
Vandal Resistant IK7
IP Rating IP40
Temperature Range 32 to 104°F (0 to 40°C)
Dimensions (W x H x D) 3.5 x 2.8 x 4.5" (9.0 x 7.1 x 11.5 cm)
Weight 10.5 oz (298 g)
The user manual for the IQinVision IQeye Alliance-mini II Series IQD53WV-B7 IQD53WV-B7 can be downloaded in .pdf format if it did not come with your new wired ip cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other IQinVision users keep a unique electronic library for IQinVision wired ip camerass, where you can use our link to download the user manual for the IQinVision IQeye Alliance-mini II Series IQD53WV-B7 IQD53WV-B7.

The user manual lists all of the functions of the IQinVision IQeye Alliance-mini II Series IQD53WV-B7 IQD53WV-B7, all the basic and advanced features and tells you how to use the wired ip cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from IQinVision service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the IQinVision IQeye Alliance-mini II Series IQD53WV-B7 IQD53WV-B7. User manuals are also available on the IQinVision website under Surveillance - Surveillance Video - Wired IP Cameras.
