User manual JBL Control 25T-WH Monitor for use with 70/100V CONTROL 25T-WH

Operating instructions and pdf manual for use - JBL Control 25T-WH Monitor for use with 70/100V CONTROL 25T-WH User manual, User manual JBL Control 25T-WH Monitor for use with 70/100V CONTROL 25T-WH, JBL, Control, 25T-WH, Monitor, use, with, 70/100


User manual for JBL Control 25T-WH Monitor for use with 70/100V CONTROL 25T-WH

JBL Control 25T-WH Monitor for use with 70/100V CONTROL 25T-WH
  • Manufacturer: JBL
  • Basic description and contents of package
  • Product classification: Pro Audio - Installation Sound - Install Speakers
  • Safety instructions
  • Startup and operation of the install speakers
  • Tips for setting up your JBL
  • Settings and expert assistance
  • Contact JBL service
  • Troubleshooting
  • Warranty information
  • Price: 304 USD
We recommend checking out our discussion threads on the JBL Control 25T-WH Monitor for use with 70/100V CONTROL 25T-WH, which address similar problems with connecting and setting up Install Speakers JBL.



User manual for the JBL Control 25T-WH Monitor for use with 70/100V CONTROL 25T-WH

The user manual for the JBL Control 25T-WH Monitor for use with 70/100V CONTROL 25T-WH provides necessary instructions for the proper use of the product Pro Audio - Installation Sound - Install Speakers.

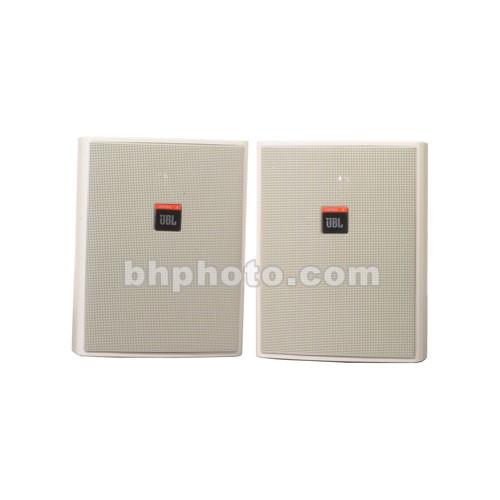

The JBL Control 25T is a versatile indoor/outdoor installation speaker with a 5.25" woofer, suitable for use in theme parks, health clubs, bars and restaurants, in either 70.7V or 100V distributed-line sound systems. The speaker is supplied with the easily mounted and theft-deterrent InvisiBall mounting, which adds the benefit of vertical rotation up to 37° and off-axis and horizontal rotation of up to 44°. All adjustments are made from behind the logo badge without having to remove the grill
If you own a JBL install speakers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the JBL Control 25T-WH Monitor for use with 70/100V CONTROL 25T-WH in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the JBL Control 25T-WH Monitor for use with 70/100V CONTROL 25T-WH:
Active or Passive Passive
Frequency Response 80Hz - 15kHz
Power Capacity 150W
Maximum Sound Pressure Level (SPL) Not applicable
Nominal Sensitivity 70.7V Input/100V Input (dB-SPL@1m) Tap #1 94dB/97dB Tap #2 97dB/100dB Tap #3 100dB/102dB Tap #4 102dB/(do not use)
Transformer Taps 70V taps: 3.7W, 7.5W, 15W, 30W 100V taps: 7.5V, 15W, 30W
Impedance 8 ohms
Crossover 3.0kHz
Shielded Not applicable
Low Frequency Driver 5.25" (35mm) Polypropylene coated paper w/WeatherEdge
High Frequency Driver 0.75" (19mm) Titanium coated polycarbonate
Enclosure Material HIPS (High Impact Polystyrene)
Input Connections Spring terminals, accepts banana plug
Environmental Conforms to Mil Spec 810 for humidity, salt spray, temperature & UV. IEC 529 IP-X4 splash proof rating.
Dimensions 9.3 x 7.4 x 5.8" (236 x 188 x 149mm)
Weight 5 lbs (2.3kg) each
Specialties InvisiBall Assembly
All-Weather Enclosure
Packaging Info
Package Weight 16.85 lb
Box Dimensions (LxWxH) 13.4 x 10.8 x 8.4"
The user manual for the JBL Control 25T-WH Monitor for use with 70/100V CONTROL 25T-WH can be downloaded in .pdf format if it did not come with your new install speakers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other JBL users keep a unique electronic library for JBL install speakerss, where you can use our link to download the user manual for the JBL Control 25T-WH Monitor for use with 70/100V CONTROL 25T-WH.

The user manual lists all of the functions of the JBL Control 25T-WH Monitor for use with 70/100V CONTROL 25T-WH, all the basic and advanced features and tells you how to use the install speakers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from JBL service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the JBL Control 25T-WH Monitor for use with 70/100V CONTROL 25T-WH. User manuals are also available on the JBL website under Pro Audio - Installation Sound - Install Speakers.
