User manual for the JBL Control 60PS/T Pendant Subwoofer with Crossover C60PS/T-WH

The user manual for the JBL Control 60PS/T Pendant Subwoofer with Crossover C60PS/T-WH provides necessary instructions for the proper use of the product Pro Audio - Installation Sound - Install Speakers.

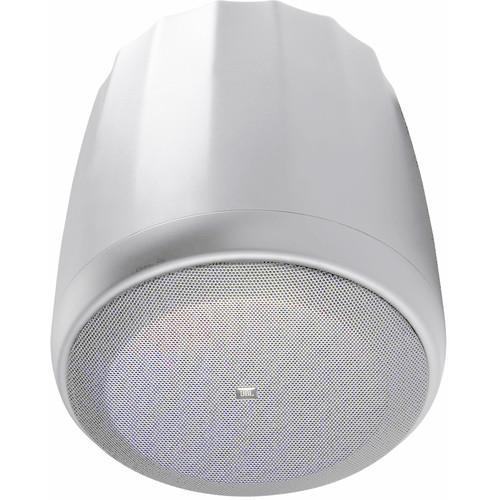

The white Control 60PS/T Pendant Subwoofer with Crossover from JBL is a pair of subwoofers featuring low distortion 150W power handling, and an 8" low frequency driver with a butyl rubber surround for well-damped, tight sound quality and long-term reliability, with a polypropylene-coated cone for humidity protection. The high-temperature 2" voice coil and low-mass fiberglass coil former ensure good bass transient response and stability under high power, high duty-cycle working conditions. The Control 60PS/T provides bass extension and high impact for high-fidelity sound systems in a wide variety of applications.

The Control 60PS/T may be driven by itself, or with other subwoofers, on an amplifier channel, sending it either a signal that has been actively low-passed earlier in the signal chain via DSP or a full-range signal, utilizing the built-in passive 125 Hz low-pass filter. The included passive crossover also provides high-passed satellite outputs for use with either two or four satellite loudspeakers (not for one or three satellite speakers), resulting in a full-range, wide-bandwidth, passively-crossed, mono subwoofer-satellite system. Using the built-in passive crossover is best suited for satellite speakers with sensitivities in the 82 dB to 86 dB (2.83V @ 1m) range, resulting in a well-balanced overall frequency response.

A 100W multi-tap, wide-bandwidth, low-saturation transformer allows the speaker to be used on either a 70V/100V distributed speaker system, or as a direct low-impedance 8 ohms speaker. If satellite speakers are used on the 70V/100V settings, the satellite speakers should be low-impedance (8 - 16 ohms each). A loop out connector is provided on the subwoofer for looping the full-range input signal to other loudspeakers or to other subwoofer/satellite systems. Rubber boot covers for each locking connector protect the terminals when using the speaker outdoors.
If you own a JBL install speakers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the JBL Control 60PS/T Pendant Subwoofer with Crossover C60PS/T-WH in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the JBL Control 60PS/T Pendant Subwoofer with Crossover C60PS/T-WH:
Specifications
Frequency Range 42 - 350 Hz @ -10 dB
Frequency Response 55 - 125 Hz @ ±3 dB
Nominal Sensitivity 88 dB, 2.83 V / 1 m
Maximum SPL Average: 107 dB @ 3.3' (1 m)
Peak: 113 dB
Rated Impedance 8 ohms
Transformer Taps 110 W, 55 W, 30 W (and 15 W @ 70 V)
Transformer Insertion Loss 0.98 dB @ 15 W
0.99 dB @ 30 W
0.94 dB @ 55 W
1.10 dB @ 110 W
Connectors 2 x 2-pin Euroblock terminal, input
2 x 2-pin Euroblock terminal, input loop-out output
2 x 2-pin Euroblock terminal, satellite hookup
Transducer 8" (200 mm) driver
2" (50 mm) voice coil
Suspension 15' (4.5 m) long, 0.2 cm (2 mm) high-tensile galvanized steel wire rope
Suspension Support 99 lb (45 kg), SWL rating
Power Capacity Continuous Program Power: 300 W, 100 hours
Continuous Pink Noise: 150 W, 100 hours
Material Enclosure: High impact polystyrene
Driver: Polypropylene-coated paper cone with butyl rubber surround
Voice-coil: High-temperature copper, vented fiberglass resin voice coil former
Grille Zinc-plated steel grille with powder-coat finish, foam backing
Grille and grille backing are removable for painting
Environmental Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV
IP44 capability per IEC 529 - splash-proof rating
Compliance IEC60849/EN60849
Speaker: UL1480 (UEAY)
Transformer: UL1876
Suspension System: UL1598 & UL2239, TUV, CSA Class 3426-01 & Class 3426-81
Cable Fasteners: UL1598 & UL2239, TUV, CSA Class 3426-01 & Class 3426-81
Dimensions To top of cabinet: 13.1 x 13.5" (333 x 344 mm)
To top of suspension bracket: 13.1 x 14.5" (333 x 369 mm)
Weight 16.8 lb (7.6 kg)
Packaging Info
Package Weight 37.2 lb
Box Dimensions (LxWxH) 29.0 x 16.0 x 16.0"
The user manual for the JBL Control 60PS/T Pendant Subwoofer with Crossover C60PS/T-WH can be downloaded in .pdf format if it did not come with your new install speakers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other JBL users keep a unique electronic library for JBL install speakerss, where you can use our link to download the user manual for the JBL Control 60PS/T Pendant Subwoofer with Crossover C60PS/T-WH.

The user manual lists all of the functions of the JBL Control 60PS/T Pendant Subwoofer with Crossover C60PS/T-WH, all the basic and advanced features and tells you how to use the install speakers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from JBL service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the JBL Control 60PS/T Pendant Subwoofer with Crossover C60PS/T-WH. User manuals are also available on the JBL website under Pro Audio - Installation Sound - Install Speakers.



Discussion Question and answer discussion forum concerning user instructions and resolving problems with the JBL Control 60PS/T Pendant Subwoofer with Crossover C60PS/T-WH - no comments have been made yet - be the first to add a comment
