User manual JBL LSR308 8" Two-Way Powered Studio Monitor LSR308

Operating instructions and pdf manual for use - JBL LSR308 8" Two-Way Powered Studio Monitor LSR308 User manual, User manual JBL LSR308 8" Two-Way Powered Studio Monitor LSR308, JBL, LSR308, 8, Two-Way, Powered, Studio, Monitor, LSR308,


User manual for JBL LSR308 8" Two-Way Powered Studio Monitor LSR308

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.
JBL LSR308 8
  • Manufacturer: JBL
  • Basic description and contents of package
  • Product classification: Pro Audio - Recording - Studio Monitors
  • Safety instructions
  • Startup and operation of the studio monitors
  • Tips for setting up your JBL
  • Settings and expert assistance
  • Contact JBL service
  • Troubleshooting
  • Warranty information
  • Price: 200 USD
We recommend checking out our discussion threads on the JBL LSR308 8" Two-Way Powered Studio Monitor LSR308, which address similar problems with connecting and setting up Studio Monitors JBL.



User manual for the JBL LSR308 8" Two-Way Powered Studio Monitor LSR308

The user manual for the JBL LSR308 8" Two-Way Powered Studio Monitor LSR308 provides necessary instructions for the proper use of the product Pro Audio - Recording - Studio Monitors.

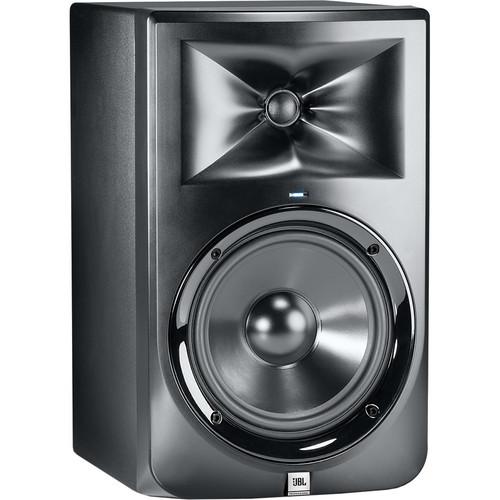

The JBL LSR308 8" Two-Way Powered Studio Monitor is a bi-amplified reference monitor with a magnetically-shielded 8" low frequency transducer and 1" soft-dome high frequency transducer. The monitor features JBL's Image Control Waveguide technology for accurate audio reproduction. It also features JBL's Slip Stream port design for improved bass response. The LSR308 is equipped with an LF trim switch and an HF trim switch, as well as dual 56W Class D amplifiers for both drivers. To ensure flexible connectivity, JBL included a balanced XLR input and a balanced 1/4" TRS input, both of which feature dented level control. Other features include JBL's LSR (Linear Spatial Reference) speaker design for accurate audio reproduction and a selectable input sensitivity switch that ensures compatibility with a range of signal sources.
If you own a JBL studio monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the JBL LSR308 8" Two-Way Powered Studio Monitor LSR308 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for JBL LSR308 8Download user manual for JBL LSR308 8" Two-Way Powered Studio Monitor LSR308
(PDF file, 5.3 MB)
Additional parameters of the JBL LSR308 8" Two-Way Powered Studio Monitor LSR308:
Frequency Range 37 Hz - 24 kHz
Max Peak SPL 112 dB SPL C-Weighted
Max Peak Input +23 dBu
LF Driver Size 8" (203 mm)
HF Driver Size 1" (25 mm)
LF Driver Power Amp 56 W Class D
HF Driver Power Amp 56 W Class D
LF Trim Control +2 dB
0 dB
-2 dB
HF Trim Control +2 dB
0 dB
-2 dB
Selectable Input Sensitivity -10 dB
+4 dB
Balanced Inputs 1 x 3-pin XLR
1 x 1/4" (6.35 mm) TRS
AC Input Voltage AC 100 - 240 V ± 10% (50/60 Hz)
Dimensions (WxHxD) 10.0 x 16.5 x 12.1" (254 x 419 x 308 mm)
Weight 18.9 lb (8.6 kg)
Packaging Info
Package Weight 23.2 lb
Box Dimensions (LxWxH) 19.0 x 14.5 x 12.5"
The user manual for the JBL LSR308 8" Two-Way Powered Studio Monitor LSR308 can be downloaded in .pdf format if it did not come with your new studio monitors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other JBL users keep a unique electronic library for JBL studio monitorss, where you can use our link to download the user manual for the JBL LSR308 8" Two-Way Powered Studio Monitor LSR308.

The user manual lists all of the functions of the JBL LSR308 8" Two-Way Powered Studio Monitor LSR308, all the basic and advanced features and tells you how to use the studio monitors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from JBL service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the JBL LSR308 8" Two-Way Powered Studio Monitor LSR308. User manuals are also available on the JBL website under Pro Audio - Recording - Studio Monitors.
