User manual for the JBL Professional Recording Kit with LSR305 Monitors, Audio

The user manual for the JBL Professional Recording Kit with LSR305 Monitors, Audio provides necessary instructions for the proper use of the product Pro Audio - Recording - Studio Monitors.

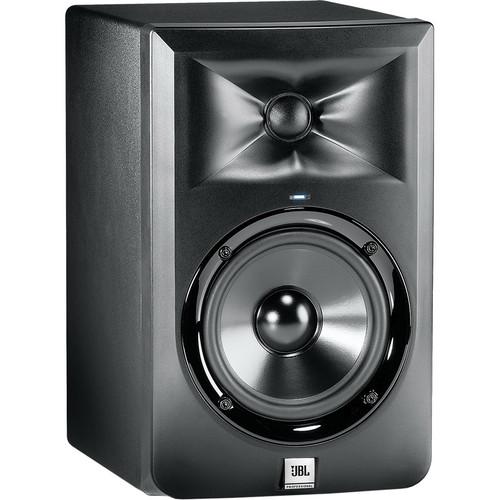

This B&H Kit combines a pair of JBL LSR305 5" Two-Way Powered Studio Monitors with an audio interface, microphone, headphones, one XLR cable, two 1/4" cables, and a desktop microphone stand to form the primary components of a recording setup for project studios, musicians, podcasts, and multimedia producers. The JBL LSR305 is a two-way bi-amplified reference monitor with a magnetically-shielded 5" low-frequency transducer and 1" soft-dome high-frequency transducer. The monitor features JBL's Image Control Waveguide technology for accurate audio reproduction and JBL's Slip Stream port design for improved bass response. The LSR305 is equipped with an LF trim switch and an HF trim switch, as well as dual 41W Class D amplifiers for both drivers.

The audio interface is a 2-input, 2-output portable USB recording interface featuring two preamps, housed in an anodized-aluminum unibody chassis that is solid enough to take on the road. The preamps offer transparent, low-noise, and low-distortion performance with sufficient available headroom for using moving-coil, condenser, or ribbon microphones. A large monitor dial provides control over the output level being sent to monitor speakers, while a high-quality amplifier provides a clean yet loud signal to headphones.

The cardioid condenser microphone is designed for vocal and general instrument capturing in project and professional studio environments. The capsule features a low-mass, side-address diaphragm with a cardioid polar pattern for rejecting ambiance and noise at the off-axis sections of the microphone capsule. A linear frequency response of 20 Hz to 20 kHz enables the flexibility to accurately reproduce signals from a wide variety of sources. The monitor headphones are designed for use in critical studio mixing and tracking as well as for DJ monitoring applications. They feature 45mm Neodymium drivers with copper-clad aluminum voice coils that provide an extended frequency response from 15 Hz to 28 kHz.

The 6' XLR M to XLR F studio-quality microphone cable is for connecting a mic to mixers, preamps, audio interfaces and recorders, or to be used in any other application where XLR connectivity is required. The cable is engineered to be both quiet and durable, and is well-suited for critical recording and broadcast situations. The two 6' 1/4" TRS male to 1/4" TRS male interconnect cables feature Rean connectors with nickel-plated contacts on both ends, 24-gauge oxygen-free copper conductors, and spiral shielding to protect against EMI and RFI noise. The telescoping tabletop microphone stand meets the needs of any desktop audio applications that require the use of a microphone. It provides a solid, weighted round base with five non-slip rubber feet for additional stability.
If you own a JBL studio monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the JBL Professional Recording Kit with LSR305 Monitors, Audio in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the JBL Professional Recording Kit with LSR305 Monitors, Audio:
Specifications
  • 2 x JBL LSR305 5" Two-Way Powered Studio Monitor
    Frequency Range 43 Hz - 24 kHz
    Max Peak SPL 108 dB SPL C-Weighted
    Max Peak Input +23 dBu
    LF Driver Size 5" (127 mm)
    HF Driver Size 1" (25 mm)
    LF Driver Power Amp 41 W Class D
    HF Driver Power Amp 41 W Class D
    LF Trim Control +2 dB
    0 dB
    -2 dB
    HF Trim Control +2 dB
    0 dB
    -2 dB
    Selectable Input Sensitivity -10 dB
    +4 dB
    Balanced Inputs 1 x 3-pin XLR
    1 x 1/4" (6.35 mm) TRS
    AC Input Voltage AC 100 - 240 V ± 10% (50/60 Hz)
    Dimensions (WxHxD) 9.37 x 11.75 x 9.88" (238 x 298 x 251 mm)
    Weight 10.12 lb (4.6 kg)
    Packaging Info
    Box Dimensions (LxWxH) 14.6 x 12.4 x 10.2"
  • Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 6' (1.8 m), Black
    Cable Type 3-Pin XLR balanced microphone cable
    Length 6' (1.8 m)
    Shielding 95% Dual-Spiral Shielding
    Gauge 24 AWG
    Contacts Silver
    Connector 1 XLR Male
    Connector 2 XLR Female
    Packaging Info
    Box Dimensions (LxWxH) 3.5 x 0.9 x 0.2"
  • Focusrite Scarlett 2i2 - Portable USB Audio Interface
    Type USB 2.0
    Converter 24-bit, internal clock
    Sample Rates 44.1, 48, 88.2 and 96 kHz
    Inputs 2 x XLR/TRS combo Microphone/Line/Instrument
    Maximum Input Level Microphone: -3 dBu
    Instrument: -3 dBu
    Line: +20 dBu
    Gain Range Microphone: +10 dB to +55 dB
    Instrument: +10 dB to +55 dB
    Line: +10 dB to +35 dB
    Outputs 2 x 1/4" TRS phone
    1 x 1/4" TRS phone Headphone
    Output Impedance <10 ohms
    Output Level Nominal: 0 dBFS = 10 dBu, balanced
    15 mW into 150 ohms
    30 mW into 50 ohms
    Dynamic Range Microphone/Line: 105 dB, A-weighted
    Line Output: 117 dB, A-weighted
    THD + N Microphone/Line: 0.002%, -1 dBFS, 22 Hz to 22 kHz BPF
    Instrument: 0.005%, -8 dBu input, 22 Hz to 22 kHz BPF
    Line Output: 0.001%, -1 dBFS, 22 Hz to 22 kHz BPF, unweighted
    Frequency Response Inputs: 20 Hz to 20 kHz, +/-0.1 dB
    Outputs: 20 Hz to 20 kHz, +/-0.2 dB
    Noise Microphone EIN: <-120 dB, measured @ 55 dB of gain with 150 ohm termination (20 Hz to 22 kHz BPF)
    Instrument: -87 dBu (22 Hz to 22 kHz BPF)
    Line: -90 dBu (22 Hz to 22 kHz BPF)
    Signal to Noise Ratio Line: >100 dB
    Crosstalk Input to Input: better than 90 dB
    Output to Output: better than 90 dB
    Input to Output: better than 85 dB
    Power Requirements USB bus
    System Requirements Mac:
    OS X 10.6.5 (32- and 64-bit) and above
    PC:
    Windows 7 (32- and 64-bit), Windows 8, and Windows 10
    Dimensions (WxDxH) 7 x 4 x 1.75" (175 x 100 x 45 mm)
    Weight 1.3 lb (580 g)
    Packaging Info
    Box Dimensions (LxWxH) 9.8 x 6.8 x 4.0"
  • Audio-Technica AT2020 - Cardioid Condenser Microphone
    Transducer Condenser
    Polar Pattern Cardioid
    Frequency Range 20 Hz to 20 kHz
    Signal to Noise Ratio 74 dB
    Equivalent Noise Level 20 dB
    Maximum SPL 144 dB SPL 1%
    Impedance 100 ohms
    Sensitivity 14.1 mV/PA, re: 1 V/Pa
    Power Requirements 48 V
    Output Connectors 3-Pin XLR
    Operating Current Consumption 2.0 µA
    Dynamic Range 124 dB
    General
    Length 6.38" (162.0 mm)
    Diameter 2.05" (52.0 mm)
    Weight 12.17 oz (345 g)
    Packaging Info
    Box Dimensions (LxWxH) 9.7 x 9.6 x 2.8"
  • Audio-Technica ATH-M50x Monitor Headphones (Black)
    Driver 1.7" (45 mm)
    Magnet Neodymium
    Voice Coil CCAW (copper-clad aluminum wire)
    Frequency Response 15 Hz to 28 kHz
    Maximum Input Power 1600 mW @ 1 kHz
    Sensitivity 99 dB
    Impedance 38 Ω
    Weight 10 oz (285 g) without cable
    Packaging Info
    Box Dimensions (LxWxH) 11.5 x 10.2 x 4.1"
  • Auray TT-6220 Telescoping Tabletop Microphone Stand (Black)
    Height 8.3 to 13.5" (210 to 343 mm)
    Base Width: 6.2" (157 mm)
    Threaded Mount 5/8"-27
    Weight 2.5 lb (1.1 kg)
    Packaging Info
    Box Dimensions (LxWxH) 6.5 x 6.5 x 2.0"
  • 2 x Pearstone PM-TRS 1/4" TRS Male to 1/4" TRS Male Interconnect Cable (6')
    Cable Type 1/4" TRS interconnect cable
    Length 6' (1.8 m)
    Shielding Spiral, twin conductive PVC
    Gauge 24 AWG oxygen-free copper
    Contacts Nickel plated
    Connector 1 1/4" TRS Male
    Connector 2 1/4" TRS Male
    Packaging Info
    Box Dimensions (LxWxH) 9.0 x 5.0 x 1.0"
The user manual for the JBL Professional Recording Kit with LSR305 Monitors, Audio can be downloaded in .pdf format if it did not come with your new studio monitors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other JBL users keep a unique electronic library for JBL studio monitorss, where you can use our link to download the user manual for the JBL Professional Recording Kit with LSR305 Monitors, Audio.

The user manual lists all of the functions of the JBL Professional Recording Kit with LSR305 Monitors, Audio, all the basic and advanced features and tells you how to use the studio monitors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from JBL service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the JBL Professional Recording Kit with LSR305 Monitors, Audio. User manuals are also available on the JBL website under Pro Audio - Recording - Studio Monitors.
