User manual JBL Professional Series Control 12C/T 3" CONTROL 12C/T

Operating instructions and pdf manual for use - JBL Professional Series Control 12C/T 3" CONTROL 12C/T User manual, User manual JBL Professional Series Control 12C/T 3" CONTROL 12C/T, JBL, Professional, Series, Control, 12C/T, 3, CONTROL, 12C/T,


User manual for JBL Professional Series Control 12C/T 3" CONTROL 12C/T

JBL Professional Series Control 12C/T 3
  • Manufacturer: JBL
  • Basic description and contents of package
  • Product classification: Pro Audio - Installation Sound - Install Speakers
  • Safety instructions
  • Startup and operation of the install speakers
  • Tips for setting up your JBL
  • Settings and expert assistance
  • Contact JBL service
  • Troubleshooting
  • Warranty information
  • Price: 134 USD

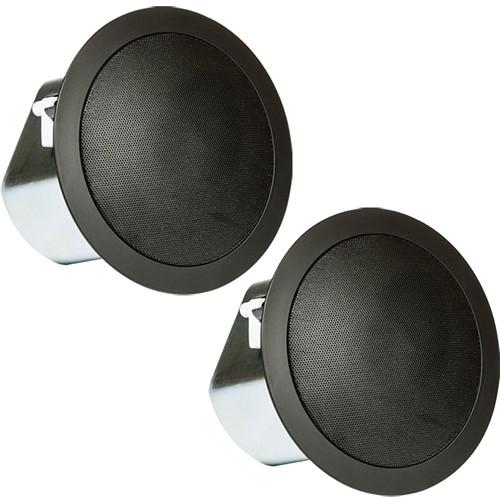

JBL Professional Series Control 12C/T 3 JBL Professional Series Control 12C/T 3
Click to enlarge image

We recommend checking out our discussion threads on the JBL Professional Series Control 12C/T 3" CONTROL 12C/T, which address similar problems with connecting and setting up Install Speakers JBL.



User manual for the JBL Professional Series Control 12C/T 3" CONTROL 12C/T

The user manual for the JBL Professional Series Control 12C/T 3" CONTROL 12C/T provides necessary instructions for the proper use of the product Pro Audio - Installation Sound - Install Speakers.

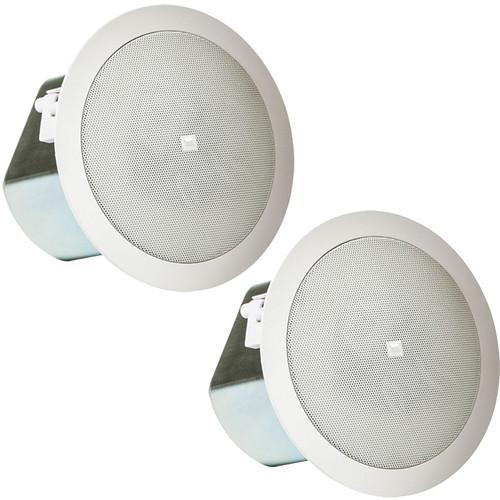

The pair of white Professional Series Control 12C/T 3" Compact Ceiling Loudspeakers from JBL is designed to provide an enhanced sound quality for a wide variety of low to medium volume applications such as music cafes, business music systems, retail stores, music/paging systems, airports, reception/waiting rooms, lounges, courtrooms, convention centers, hotels, educational facilities, and more
If you own a JBL install speakers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the JBL Professional Series Control 12C/T 3" CONTROL 12C/T in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the JBL Professional Series Control 12C/T 3" CONTROL 12C/T:
Specifications
    Frequency Range -10 dB: 68 Hz to 17 kHz

    Half-space (flush mounted in ceiling)

    Frequency Response ±3 dB: 95 Hz to 15 kHz

    Half-space (flush mounted in ceiling)

    Power Capacity At low-Z: 40W continuous program power
    20W continuous pink noise (CPN)

    CPNR is IEC-shaped with a 6 dB crest factor for 100 hours continuously. Continuous Program Power is the system's ability to handle normal speech and music program material (3 dB above CPNR).

    Sensitivity Nominal: 84 dB

    Half-space (in ceiling) average 1 kHz to 16 kHz

    Coverage Angle Nominal: 130° conical coverage

    Half-space (in ceiling) average 1 kHz to 16 kHz

    Directivity Factor Q: 9.8
    Index DI: 7.4 dB

    Half-space (in ceiling) average 1 kHz to 16 kHz

    Sound Pressure Rated Maximum Level: 97 dB @ 3.3' (1 m) average, 103 dB peak
    Nominal Impedance 8 Ω (in direct/bypass 8 Ω setting)
    Transformer Taps 15 W, 7.5 W, 3.8 W @ 70V and 100V (& 1.9 W @ 70 V only)
    Full Range Drivers 3" (76 mm) with polypropylene cone, butyl rubber surround, Kapton voice coil former, high-temperature voice coil, aluminum coupling ring for low distortion, and HF extension
    Input Connector Removable locking 4-pin connector with screw-down terminals
    Maximum Wire Size: 12 AWG (2.5 mm2)
    Wiring Connector: Pin 1 = + In; Pin 2 = - In; Pin 3 = + Loop Thru; Pin 4 = - Loop Thru
    Strain Relief Strain relief for 2 cables or 2 flex conduits via coupled clamping mechanism
    Material ABS baffle with UL94-V0 and UL94-5VB flame class fire rating
    Zinc-plated steel backcan
    Safety Agency Approvals UL1480, UL2043, NFPA90, & NFPA70; S7232/UL Listed, Suitable for use in air handling spaces, Signaling Speaker; Transformer UL registered per UL1876; ROHS, C-tick N108, CE compliant; Baffle meets UL94-V0 and UL94-5VB flammability rating; In accordance with IEC60849/EN60849 systems
    Ceiling Cutout Size Circular cutout with 6.7" (170.0 mm) diameter (cardboard cutout template included)
    Ceiling Thickness Range: Up to 1.4" (35.0 mm) with stock dog-ears; MTC-TCD thick-ceiling dog-ears available for up to 55 mm (2.2 in) ceiling thicknesses (sold separately)
    Attachment Safety Seismic: One point, top surface
    Dimensions (Ø x D) From Back of Baffle: 7.7 x 5.4" (196.0 x 138.0 mm)
    Weight One Speaker: 3.5 lb (1.6 kg)
    Packaging Info
    Package Weight 14.69 lb
    The user manual for the JBL Professional Series Control 12C/T 3" CONTROL 12C/T can be downloaded in .pdf format if it did not come with your new install speakers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other JBL users keep a unique electronic library for JBL install speakerss, where you can use our link to download the user manual for the JBL Professional Series Control 12C/T 3" CONTROL 12C/T.

    The user manual lists all of the functions of the JBL Professional Series Control 12C/T 3" CONTROL 12C/T, all the basic and advanced features and tells you how to use the install speakers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from JBL service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the JBL Professional Series Control 12C/T 3" CONTROL 12C/T. User manuals are also available on the JBL website under Pro Audio - Installation Sound - Install Speakers.
