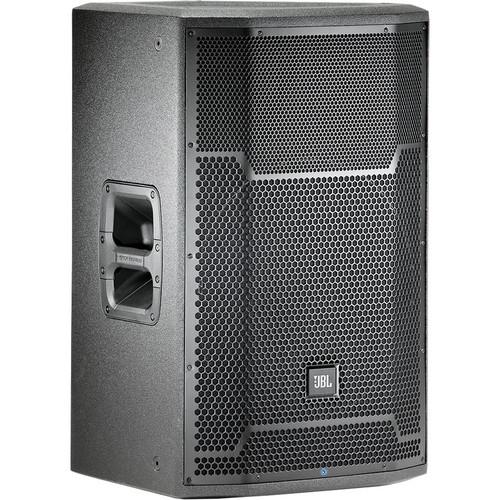

The 15" JBL PRX715 1500W Two-Way Multipurpose Self-Powered Speaker is designed to be a stage monitor or front of house PA for live sound reinforcement applications, such as concerts, schools, and houses of worship, among others. The speaker is built from poplar plywood with an obsidian DuraFlex finish using tongue and groove joinery for stronger bracing and less box vibration. It utilizes a 15" low-distortion, low-frequency woofer, a wave-guided 1.5" diameter neodymium compression driver, and a class-D amplifier to achieve a maximum SPL of 136 dB and a frequency response of 42.9 to 19,500 Hz.

For easy transport and setup, the speaker includes an injection molded handle, 16-guage steel dent-resistant cloth-backed grills, integrated M10 suspension points for hanging, and dual integrated 36mm pole mount sockets for use with a speaker poles.

The back panel of the speaker features two combination 3-pin XLR and 1/4" balanced inputs for microphone and line with a selector switch as well as a pair of unbalanced RCA inputs. Two gain control knobs allow you to adjust the input signal on channels 1 and 2, and a 3-pin XLR male thru connection with thru selector switch enables passing audio to another powered speaker. The device includes an EQ boost button for widening the speaker's frequency response and a button for turning on and off the power/standby LED on the front of the device.

The speaker's crossover, dynamic limiting, component optimization, and selectable EQ boost is handled by a dbx type IV circuit. The unit can be used by itself or connected with other speakers and subwoofers to build larger systems for increased crowd coverage and low frequency response.
If you own a JBL pa speakers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the JBL PRX715 1500W Two-Way Multipurpose Self-Powered PRX715 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for JBL PRX715 1500W Two-Way Multipurpose Self-Powered PRX715Download user manual for JBL PRX715 1500W Two-Way Multipurpose Self-Powered PRX715
(PDF file, 2.05 MB)
Additional parameters of the JBL PRX715 1500W Two-Way Multipurpose Self-Powered PRX715:
Specifications
    Type Active
    Design Bass reflex
    Frequency Response -10 dB main: 42.9 to 19,500 Hz
    -10 dB monitor: 43.6 to 19,300 Hz

    ±3 dB main: 58.1 to 17,200 Hz
    ±3 dB monitor: 60.7 to 16,700 Hz
    Coverage Pattern 90° x 50° nominal
    Directivity Index: 10.2 dB
    Factor: 10.4
    Amplifier Class D
    Power Capacity 1500 W (2 x 750)
    Maximum Sound Pressure Level (SPL) Normal: 136 dB
    Boost: 136 dB
    Crossover 1,700 Hz (DSP Active)
    Input Impedance 20,000 Ω (balanced)
    10,000 Ω (unbalanced)
    Low Frequency Driver 1 x 15" DifferentialDrive low-distortion, low-frequency woofer with ferrite magnet
    High Frequency Driver 1 x 1.5" neodymium compression driver with annular polymer diaphragm and waveguide
    DSP Dynamic control: dbx type IV limiter circuit
    Signal Indicator Limit: yellow LED indicates peak output and active DSP limiting
    Signal: green LED indicates signal presence
    Power/standby: blue LED indicates powered
    Power/standby: red LED indicates power saving mode
    Enclosure Material Asymmetrical, 18 mm and 25 mm top and bottom poplar plywood with DuraFlex finish
    Input Connections 2 x combo balanced 3-pin XLR female and 1/4" inputs
    2 x unbalanced RCA inputs
    Output Connections 1 x balanced 3-pin XLR male output
    Suspension Support 12 x M10 suspension points
    Transport and Storage 1 x injection molded handle
    Mounting Dual 36 mm pole sockets
    Dimensions 28.13 x 17.52 x 14.12" (714.40 x 445.10 x 358.70 mm)
    Weight 47.5 lb (21.6 kg)
    Packaging Info
    Package Weight 59.0 lb
    Box Dimensions (LxWxH) 30.5 x 22.5 x 19.5"
    The user manual for the JBL PRX715 1500W Two-Way Multipurpose Self-Powered PRX715 can be downloaded in .pdf format if it did not come with your new pa speakers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other JBL users keep a unique electronic library for JBL pa speakerss, where you can use our link to download the user manual for the JBL PRX715 1500W Two-Way Multipurpose Self-Powered PRX715.

    The user manual lists all of the functions of the JBL PRX715 1500W Two-Way Multipurpose Self-Powered PRX715, all the basic and advanced features and tells you how to use the pa speakers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from JBL service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the JBL PRX715 1500W Two-Way Multipurpose Self-Powered PRX715. User manuals are also available on the JBL website under Pro Audio - Live Sound - PA Speakers.
