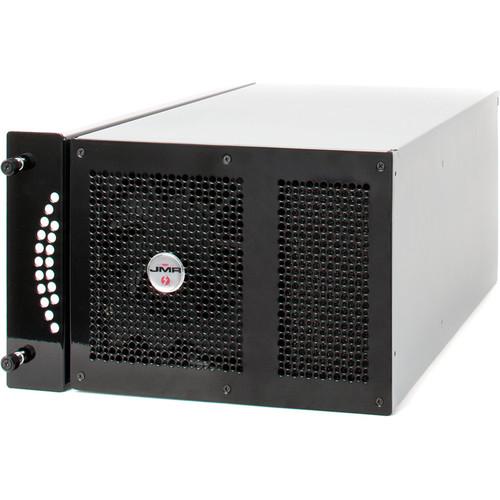

The 4 RU rackmount Lightning XQ Four-Slot PCIe to Thunderbolt 2 Expansion Chassis from JMR Electronics is equipped with four Thunderbolt 2 ports and four PCIe slots. While this enclosure uses four Thunderbolt 2 ports to connect to your host system, each of which provides bi-directional transfer speeds of up to 20 Gb/s, it also features four full-height and full-length PCIe slots, each of which operates mechanically at x16 and electrically at x4. The advantage of this enclosure having PCIe slots is that it will allow PCIe cards to be utilized with systems that do not have any available PCIe slots, such as the 2013 Mac Pro. Common applications of PCIe expansion cards include SAS/SATA and Fibre channel host bus adapters and RAID controllers, video capture cards, audio interface cards, 10GbE network cards, RED Rocket-X cards, and more.
The four PCIe slots are also powered using two independent Thunderbolt 2 bridge circuits. One Thunderbolt 2 bridge drives two slots, while the other powers the other two. When connecting to a Mac Pro, two of the three available Thunderbolt bus connections are used. This design allows all of the available 20 Gb/s bandwidth available from each of the Thunderbolt 2 ports to be used to help enhance operating bandwidth for demanding applications.
The JMR Lightning XQ Four-Slot PCIe to Thunderbolt 2 Expansion Chassis is powered using an internal 460W power supply. It utilizes a 4 RU rackmount form factor, turning it into a sled device that docks in a provided bracket that installs into rack equipment, using only the front vertical rail, and then slides into the docking bracket. Included with this chassis is a power cord.
If you own a JMR Electronics expansion chassis and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the JMR Electronics Lightning XQ Four-Slot PCIe to LTNG-XQ-RM-B in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the JMR Electronics Lightning XQ Four-Slot PCIe to LTNG-XQ-RM-B:
Specifications
Ports
4 x Thunderbolt 2 Ports (20 Gb/s)
PCIe Expansion Slots
4 x PCIe Expansion Slots (x16 mechanical / x4 electrical, full-height and full-length)
Cooling
Internal Forced Air Cooling
Power
460 W Internal Power Supply
Form Factor
4 RU Rackmount Form Factor
Dimensions
7.00 x 11.00 x 16.00" / 17.78 x 27.94 x 40.64 cm
Weight
22.0 lb / 10.0 kg (not including installed PCIe peripheral cards)
The user manual for the JMR Electronics Lightning XQ Four-Slot PCIe to LTNG-XQ-RM-B can be downloaded in .pdf
format if it did not come with your new expansion chassis, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other JMR Electronics users keep a unique electronic library
for JMR Electronics expansion chassiss,
where you can use our link to download the user manual for the JMR Electronics Lightning XQ Four-Slot PCIe to LTNG-XQ-RM-B.
The user manual lists all of the functions of the JMR Electronics Lightning XQ Four-Slot PCIe to LTNG-XQ-RM-B,
all the basic and advanced features and tells you how to use the expansion chassis.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from JMR Electronics service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the JMR Electronics Lightning XQ Four-Slot PCIe to LTNG-XQ-RM-B. User manuals are also
available on the JMR Electronics website under Computers & Solutions - Computer Components - Expansion Chassis.
