User manual for the JMR Electronics Lightning XS Single-Slot PCIe to LTNG-XS-B
The user manual for the JMR Electronics Lightning XS Single-Slot PCIe to LTNG-XS-B provides
necessary instructions for the proper use of the product Computers & Solutions - Computer Components - Expansion Chassis.

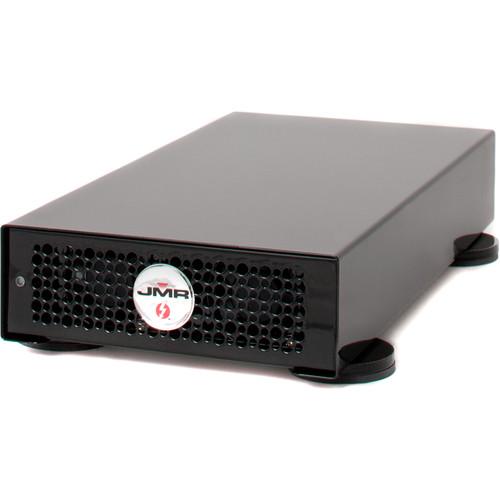

The Lightning XS Single-Slot PCIe to Thunderbolt 2 Expansion Chassis from JMR Electronics is equipped with two full-height, half-length PCIe slots that operate mechanically at x8 and electrically at x4. Each PCIe slot will only support bus powered PCIe cards. The advantage of this chassis having PCIe slots is that it will allow PCIe cards to be utilized with systems that do not have any available PCIe slots, such as the 2013 Mac Pro. Common applications of PCIe expansion cards include SAS/SATA and Fibre channel host bus adapters and RAID controllers, video capture cards, audio interface cards, 10GbE network cards, and more.
For connecting to your system, this chassis uses two Thunderbolt 2 ports. Both Thunderbolt 2 ports operate with bi-directional transfer speeds of up to 20 Gb/s, with one port being used to connect this expansion chassis to your system and the other being used to daisy chain compatible peripherals. Included with this Single-Slot PCIe to Thunderbolt 2 Expansion Chassis is a 72W power supply and protection is provided by a limited 1-year warranty.
Please bear in mind that this chassis will not support full-height, full-length cards or cards that require additional power.
If you own a JMR Electronics expansion chassis and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the JMR Electronics Lightning XS Single-Slot PCIe to LTNG-XS-B in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the JMR Electronics Lightning XS Single-Slot PCIe to LTNG-XS-B:
Specifications
Ports
2 x Thunderbolt 2 (20 Gb/s)
PCIe Expansion Slots
1 x PCIe Expansion Slot (x8 mechanical / x4 electrical, full-height and and half-length)
Cooling
Internal Forced Air Cooling
Power Requirements
72 W Internal Power Supply
Dimensions
2.3 x 5.5 x 11.0" / 5.7 x 14.0 x 27.9 cm
Weight
3.0 lb / 1.4 kg (not including external power supply)
