User manual for the Joemeek twinQ2 - Dual Studio Channel TWINQ2

The user manual for the Joemeek twinQ2 - Dual Studio Channel TWINQ2 provides necessary instructions for the proper use of the product Pro Audio - Recording - Channel Strips.

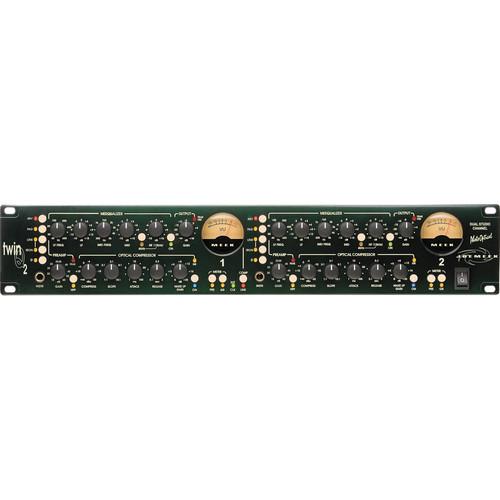

The Joemeek twinQ2 is a dual-mono preamp and channel strip that's equipped with a comprehensive set of useful features. An updated version of the original twinQ, it improves on its predecessor by providing increased headroom and level, and more flexible routing of line-level signals.

Joemeek designed the preamp section for low noise and sonic purity. For each channel you get an XLR mic input, a 1/4" balanced line input, and a front-panel 1/4" high-impedance instrument input. The mic inputs are routed through high-quality Cinemag transformers, which provide pleasing sonic coloration. By activating the IRON switch, you can route line-level sources through the transformers. A Preamp Gain control is provided for adjusting the amount of amplification. A switchable high-pass filter helps eliminate rumble, pops, and handling noise.

A 3-band "Meequalizer" EQ is available on each channel, offering sweepable low and mid bands, and a high band with a selectable center frequency of 6 or 12 kHz. Each channel is also equipped with a full-featured optical compressor that includes Compress (threshold), Slope (ratio), Attack, Release, and Makeup Gain controls. Activating the Comp Link button couples the two channel's Compress, Attack, and Release controls, which helps prevent image shifts when inputting stereo signals. Large and accurate VU meters can be set to display output level, preamp level, or gain reduction.

The twinQ2 offers a range of output options: Each channel has XLR and 1/4" analog outputs, as well as AES/EBU, S/PDIF, and optical digital outputs. A Wordclock input on a BNC connector allows synchronization with an external clock source.
If you own a Joemeek channel strips and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Joemeek twinQ2 - Dual Studio Channel TWINQ2 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Joemeek twinQ2 - Dual Studio Channel TWINQ2:
Specifications
    Preamp
    Number of Channels 2
    Inputs 2 x XLR Microphone (transformer balanced)
    2 x 1/4" TRS Line(balanced) 2 x 1/4" TS Instrument (balanced)
    Input Impedances Mic: 1.2kΩ
    Line: 10kΩ
    Instrument: 2.2MΩ
    Preamp Overall Gain -2 to 60 dB
    Equivalent Input Noise -128.5 dBu (unweighted)
    Distortion 0.001% (below Compressor threshold)
    Frequency Response 10 Hz to 70 kHz (-3 dB)
    Maximum Input Before Clipping Mic: +24 dBu; Line: +45 dBu
    Headroom Before Clipping +29 dBu
    Common Mode Rejection 70 dB
    Pad 20 dB attenuation
    High-Pass Filter 12 dB per octave cut below 80 Hz
    Phantom Power 48 V (switchable per channel)
    Analog Outputs 2 x XLR (balanced)
    2 x 1/4" TRS (balanced) Nominal Output Levels +4 dBu/-10 dBv
    Nominal Output Levels +4 dBu/-10 dBv
    Output Impedance Output Impedance: 75Ω
    Output Level Switch 12 dB attenuation
    Noise Floor -85 dBu (typical, with -40 dB mic gain)
    VU Meter Analog movement
    Compressor
    Threshold Range -6 dBu to +22 dBu (variable)
    Ratio 1:1 to 10:1 (variable)
    Attack Time 1 to 100 ms (adaptive)
    Release Time 0.1 to 3 sec (adaptive)
    Equalizer
    Q 0.9 (1.6 octaves)
    Range (Boost/Cut) ±15 dB on all bands (bell response)
    Frequency Bands Low Frequency: 40 to 650 Hz (variable)
    Mid Frequency: 300 Hz to 5 kHz (variable)
    High Frequency: 6/12 kHz (switchable)
    Digital Interface
    Sampling 24-bit
    Resolution 24-bit delta sigma using Wolfson WM8738 ADC
    Sampling Rate 44.1, 48, 88.2, or 96 kHz (selectable)
    Output Formats AES3 compliant (balanced), S/PDIF electrical
    Oversampling 2.4 x sample frequency
    Noise Floor Typically 92 dB A-weighted (referenced to 0 dBFS = +18 dBu). For a +4 dBu signal, the SNR is 78 dB
    Distortion 0.01% @ 0 dBu at 96 kHz sample rate
    0.02% @ 0 dBu at 48 kHz sample rate
    0.02% @ -1 dBFS at all sample rates
    External Wordclock Input 1 x BNC; 75Ω, 1.25 V - TTL level, 44.1 kHz to 96 kHz (auto synchronizing)
    Crosstalk Typically -67 dB (20 Hz - 20 kHz)
    Power
    Power Supply 115V/230V AC mains, 50/60 Hz
    Power Consumption 30 W
    Physical
    Dimensions (WxDxH) 19 x 8.7 x 3.5" (482 x 220 x 88)
    Weight 6.6 lb (3 kg)
    Packaging Info
    Package Weight 13.65 lb
    Box Dimensions (LxWxH) 24.0 x 10.8 x 5.0"
    The user manual for the Joemeek twinQ2 - Dual Studio Channel TWINQ2 can be downloaded in .pdf format if it did not come with your new channel strips, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Joemeek users keep a unique electronic library for Joemeek channel stripss, where you can use our link to download the user manual for the Joemeek twinQ2 - Dual Studio Channel TWINQ2.

    The user manual lists all of the functions of the Joemeek twinQ2 - Dual Studio Channel TWINQ2, all the basic and advanced features and tells you how to use the channel strips. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Joemeek service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Joemeek twinQ2 - Dual Studio Channel TWINQ2. User manuals are also available on the Joemeek website under Pro Audio - Recording - Channel Strips.
