User manual for the JVC GY-HM200 4KCAM Compact Handheld Camcorder GY-HM200

The user manual for the JVC GY-HM200 4KCAM Compact Handheld Camcorder GY-HM200 provides necessary instructions for the proper use of the product Professional Video - Professional Camcorders - Camcorders.

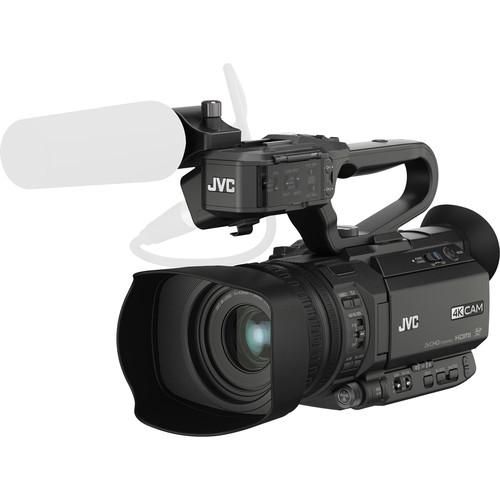

The JVC GY-HM200 4KCAM Compact Handheld Camcorder provides 4K Ultra HD recording and professional features in a versatile, handheld form-factor. It features a 1/2.33" backside-illuminated sensor that supports Ultra HD (3840x2160) resolution video at 24/30p, and 8-bit 4:2:2 Full HD 1080p video from 24p to 60p. The camcorder is equipped with a 12x zoom lens that provides a 35mm equivalent focal range of 29.5 to 354mm, with a 24x dynamic zoom mode available when recording HD video. Designed to fit into professional workflows, the camcorder comes complete with dual XLR audio inputs, 3G-SDI and HDMI outputs, and JVC's dual codec Advanced Streaming Technology.

When equipped with an optional Wi-Fi or 4G LTE modem, the GY-HM200 allows you to deliver a live video stream in the field directly from the camcorder. Through its dual codec support, the camcorder can stream live HD video to hardware decoders, Ustream, Wowza streaming engines, and ProHD Broadcaster servers powered by Zixi, while simultaneously recording video internally to SDHC/SDXC media cards. A variety of streaming protocols, including RTMP, allows delivery to popular streaming websites and content delivery networks (CDN). Zixi's Advanced Streaming Technology (AST) provides content-aware error correction and bandwidth shaping, while JVC's Streamconfidence delivers real-time feedback of LTE and streaming status in the viewfinder.

For composing and monitoring video, the camcorder features a 3.5" LCD and a 0.24" viewfinder, both with a smart focus assist function. Additional features found on the camcorder include built-in ND filters, built-in stereo microphone, wired remote control support, and nine assignable function buttons. A top handle unit, which includes the XLR audio box, comes included, along with a 7.4 VDC 4900mAh battery and AC adapter.

Note: External microphone not included.
If you own a JVC camcorders and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the JVC GY-HM200 4KCAM Compact Handheld Camcorder GY-HM200 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for JVC GY-HM200 4KCAM Compact Handheld Camcorder GY-HM200Download user manual for JVC GY-HM200 4KCAM Compact Handheld Camcorder GY-HM200
(PDF file, 12.52 MB)
Additional parameters of the JVC GY-HM200 4KCAM Compact Handheld Camcorder GY-HM200:
Specifications
    Camera
    Image Sensor 1/2.33" CMOS sensor
    Total Resolution: 12.4 Megapixel
    Shutter Speed 1/4 to 1/10000
    Gain 0, 3, 6, 9, 12, 15, 18, 21, 24 dB, Lolux (30,36 dB), AGC
    Synchronization Internal sync
    ND Filters Clear, 1/4, 1/16
    Lens
    Type Fixed zoom lens
    Focal Length 4.67 to 56.04 mm
    35mm Equivalent Focal Length 29.5 to 354 mm
    Maximum Aperture f/1.2 to 3.5
    Zoom 12x Optical
    24x Dynamic zoom in HD
    Filter Diameter 62 mm
    Stabilization Optical image stabilizer
    Recording
    Video Codecs MPEG-4 AVC/H.264 (4K/HD)
    AVCHD (HD/SD)
    File Formats .MOV (H.264)
    .MTS (AVCHD)
    Bit Depth 8-bit
    Resolutions & Frame Rates 4K (H.264)
    NTSC setting: 3840x2160 / 29.97p, 23.98p
    PAL setting: 3840x2160 / 25p

    HD (H.264)
    NTSC setting:
    XHQ 422 mode: 1920x1080 / 59.94p, 29.97p, 23.98p (50 Mbps)
    XHQ mode: 1920x1080 / 59.94p, 29.97p, 23.98p (50 Mbps); 1920x1080 / 59.94i, 29.97p, 23.98p (35Mbps); 1280x720 / 59.94p (35 Mbps)

    PAL setting:
    XHQ mode: 1920x1080 / 50p (50 Mbps)
    XHQ mode: 1920x1080 / 50p, 50i, 25p (50 Mbps); 1920x1080 / 50i, 25p (35 Mbps); 1280x720 / 50p (35 Mbps)

    AVCHD
    NTSC setting:
    Progressive mode (Max. 28 Mbps): 1920x1080 / 59.94p
    HQ mode (24 Mbps): 1920x1080 / 59.94i
    SP mode (17 Mbps): 1920x1080 / 59.94i
    LP mode (9 Mbps): 1440x1080 / 59.94i
    EP mode (5 Mbps):1440x1080 / 59.94i

    PAL setting:
    Progressive mode (Max. 28 Mbps): 1920x1080 / 50p
    HQ mode (24 Mbps): 1920x1080 / 50i
    SP mode (17 Mbps): 1920x1080 / 50i
    LP mode (9 Mbps): 1440x1080 / 50i
    EP mode (5 Mbps): 1440x1080 / 50i

    SD (AVCHD)
    NTSC setting: 720 x 480/59.94i

    SD (H.264)
    NTSC setting: 720 x 480/59.94i

    Proxy (H.264)
    NTSC setting:
    HQ mode (3 Mbps): 960x540 / 29.97p, 23.98p
    LP mode (1.2 Mbps): 480x270 / 29.97p, 23.98p

    PAL setting:
    HQ mode (3 Mbps): 960x540 / 25p
    LP mode(1.2 Mbps): 480x270 / 25p
    Audio Recording LPCM 2ch, 48 kHz / 16-bit (4k/HD/SD MOV), AC3 2ch (AVCHD), μlow 2ch (Proxy)
    Media Card Slots 2 x SDHC/SDXC

    Minimum speed requirements: 4K UHD: UHS-1 U3
    HD: 50Mbps Class10
    MOV HD: Class 6
    AVCHD: Class 4
    Video Streaming
    Wireless Connectivity Via optional Wi-Fi and 4G LTE modems
    Protocol RTMP, MPEG2-TS/UDP, MPEG2-TS/TCP, RTSP/RTP, ZIXI
    Bitrate 0.2 to 8.0 Mbps
    Resolution 1920x1080, 1280x720, 720x480, 480x270
    Interface
    Video Outputs 1 x 3G/HD/SD-SDI
    1 x HDMI (Ultra HD output via HDMI only)
    1 x AV output (3.5 mm stereo mini jack)
    Audio Inputs 2 x XLR 3-pin (MIC, +48V / LINE)
    1 x 3.5 mm stereo mini jack
    Audio Output 1 x AV output (3.5 mm stereo mini jack)
    Headphone 1 x 3.5 mm stereo mini jack
    Remote 1 x 2.5 mm mini jack
    USB 1 x HOST (Network connection)
    1 x DEVICE (Mass Storage)

    Supported devices: Verizon, AT&T 4G LTE modems, Wi-Fi, and LAN adapters
    Network Functions Live Video Streaming, FTP, Remote Control
    LCD Panel
    Size 3.5" LCD
    Resolution 921,000 pixels
    Viewfinder
    Size 0.24"
    Resolution 1,560,000 pixels
    General
    Power 12 VDC (AC Adapter)
    7.4 VDC (Battery)
    Battery SSL-JVC50
    Power Consumption Approx. 8.3 W (with Viewfinder and LCD monitor on)
    Operating Temperature 32 to 104°F (0 to 40°C)
    Operating Humidity 30 to 80%
    Storage Temperature 14 to 122°F (-20 to 50°C)
    Storage Humidity Under 85%
    Dimensions (WxHxD) 5.31 x 7.48 x 10.35" (13.5 x 19.0 x 26.3 cm)
    Weight Approx. 3.4 lb (1.55 kg) (including battery)
    Packaging Info
    Package Weight 6.35 lb
    Box Dimensions (LxWxH) 13.6 x 10.9 x 10.1"
