User manual for the JVC GY-HM600 ProHD Camera GY-HM600U
The user manual for the JVC GY-HM600 ProHD Camera GY-HM600U provides
necessary instructions for the proper use of the product Professional Video - Professional Camcorders - Camcorders.

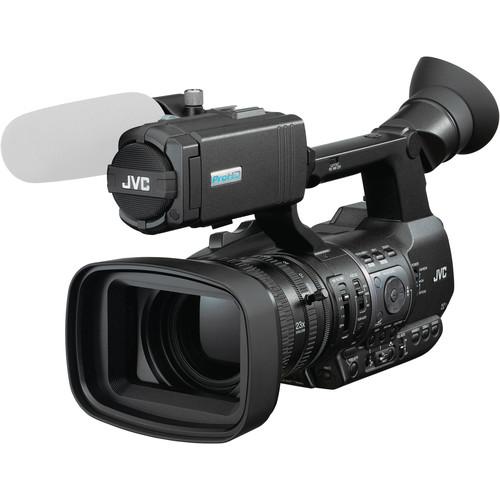

The JVC GY-HM600 ProHD Camera features superb low-light performance and a lightweight and user-friendly design, altogether allowing exceptional fast-paced capture of news, sports and indie productions.
Three 1/3" 12-bit CMOS sensors are each capable of a max resolution of 1920 x 1080. A 23x Fujinon autofocus zoom lens shoots long and wide angles and is operable by manual functions. The camera offers F11 sensitivity and is equipped with a built-in 3-position ND filter. Connections include HD-SDI and HDMI. Comprehensive recording options consist of MPEG-2, AVCHD, and SD. Two SDXC/SDHC slots are available for dual-backup, continuous recording.
A viewfinder, LCD display and built-in microphone provide additional flexibility in on-the-go shooting with this next-generation handheld high-performance camera.
Note: Since this camera's initial release, JVC has released a free 2.0 firmware upgrade, which offers numerous new features. You can download the upgrade here: JVC 2.0 Firmware Upgrade
If you own a JVC camcorders and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the JVC GY-HM600 ProHD Camera GY-HM600U in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the JVC GY-HM600 ProHD Camera GY-HM600U:
Specifications
Sensor
1/3" 2.2M pixels progressive scan 3CMOS
Synchronizing System
Internal
Stabilizer
Optical image stabilizer
Lens
Fujinon F1.6-3.0, 23x, f=4.1 - 94.3 mm (35 mm conversion: 29 to 667 mm)
Filter Diameter
72 mm
Shutter Speed
1/4 to 1/10000
Gain
-6, -3, 0, 3, 6, 9, 12, 15, 18 dB, Lolux, ALC
ND Filter
1/4, 1/16, 1/64
LCD Display
3.5" (8.9 cm) 920K pixels, 16:9
Viewfinder
0.45" (1.1 cm) 1.22M pixels, 16:9
Recording Media
2x SDHC/SDXC memory card class 6/10
Video Recording
Video codec: MPEG2 Long GOP (HD), AVCHD, H.264 (SD) File format: MOV (HD/SD: H.264), MP4 (XDCAM EX), MTS (AVCHD)
Recording Mode
MPEG-2 Long GOP: NTSC setting -- HQ mode: 1920 x 1080/59.94i, 29.97p, 23.98p, 1440 x 1080/59.94i, 1280 x 720/59.94p, 29.97p, 23.98p SP mode: 1440 x 1080/59.94i PAL setting -- HQ mode: 1920 x 1080/50i, 25p, 1440 x 1080/50i SP mode: 1440 x 1080/50i
AVCHD NTSC setting -- HQ mode: 1920 x 1080/59.94i, SP mode: 1920 x 1080/59.94i PAL setting -- HQ mode: 1920 x 1080/50i, SP mode: 1920 x1080/50i
SD (H.264) NTSC setting: 720 x 480/59.94i
Audio Recording
LPCM 2ch, 48 kHz/16-bit (MPEG-2 Long GOP/H.264), AC3 (AVCHD)
Video Output
(1) AV output (3.5 mm mini jack) (1) SDI output (1) HDMI output
