User manual for the JVC GY-HM890CHU ProHD Compact Shoulder Mount Camera GY-HM890CHU
The user manual for the JVC GY-HM890CHU ProHD Compact Shoulder Mount Camera GY-HM890CHU provides
necessary instructions for the proper use of the product Professional Video - Professional Camcorders - Camcorders.

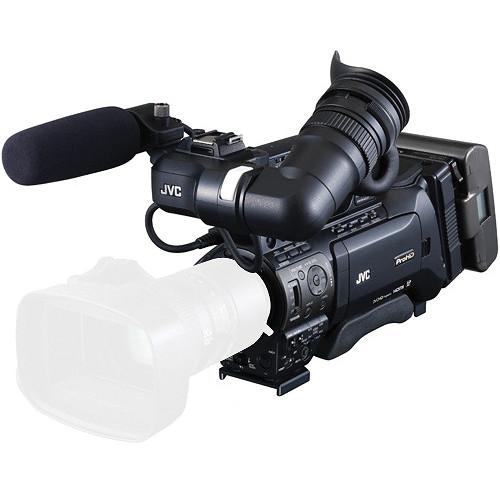

The JVC GY-HM890CHU ProHD Compact Shoulder Mount Camera is a 1/3" video camera with an interchangeable lens system. This is only the camera body, and does not include the lens. This versatile camera uses three 1/3" CMOS sensors with 12-bit processing to deliver Full HD 1920x1080 video at up to 60p. The GY-HM890CHU offers a full complement of broadcast features, including HD-SDI input with 4:2:2 sampling, a 3G-SDI output, HDMI output, timecode, genlock, and variable frame rates.
The camera provides dual SDHC/SDXC memory card slots which allow for a wide range of recording options. In addition to recording high quality footage, you can also simultaneously record in two different formats, for lower resolution proxy or web-ready files, or use the two media card slots for relay recording. With built-in network protocols, all you need to do is attach available USB network adapters to begin streaming live from your shooting location, while simultaneously recording to SDHC/SDXC memory cards. Optional studio components add another layer of professional functionality, making the GY-HM890U suitable for both field and studio work. A compact shotgun microphone comes included.
|
If you own a JVC camcorders and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the JVC GY-HM890CHU ProHD Compact Shoulder Mount Camera GY-HM890CHU in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the JVC GY-HM890CHU ProHD Compact Shoulder Mount Camera GY-HM890CHU:
| Image Sensor | 3 x 1/3" 2.2MP CMOS sensors
Effective resolution: 2.07MP | | Synchronization System | Internal / external | | Stabilizer | Optical image stabilizer | | Sensitivity | f/11 (60 Hz) / f/12 (50 Hz), 2000 lx (typical; Extended mode) | | Minimum Illumination | 0.15 lx (typical; 1920 x 1080 mode, f/1.6, Lolux mode with 1/30 or 1/ shutter) | | Shutter Speed | 1/4 to 1/10000 | | Gain | -6, -3, 0, 3, 6, 9, 12, 15, 18 dB, Lolux, ALC | | ND Filters | Clear, 1/4, 1/16, 1/64 | | Lens Mount System | Canon 1/3" bayonet | | LCD Display | 4.3", 1.15MP | | Viewfinder | 0.45", 1.22MP | | Recording Media | 2 x SDHC/SDXC memory card, Class 4/6/10 (Class 4 for AVCHD and H.264 SD/Web only) | | Video Codecs | MPEG-2 Long GOP (HD)
AVCHD progressive
H.264 | | File Formats | MOV (HD/SD/Web)
MP4 (XDCAM EX)
MTS (AVCHD progressive)
MXF | | Recording Modes | NTSC Setting
MPEG-2 Long GOP
HQ Mode:
1920 x 1080 /59.94i/29.97p/23.98p
1440 x 1080 /59.94i
1280 x 720 /59.94p/29.97p/23.98p
SP Mode:
1440 x 1080 /59.94i
1280 x 720 /59.94p
AVCHD
Progressive mode (28 Mbps): 1920 x 1080 /59.94p
HQ mode (24 Mbps): 1920 x 1080 /59.94i
SP mode (17 Mbps): 1920 x 1080 /59.94i
LP mode (9 Mbps): 1440 x 1080 /59.94i
EP mode (5 Mbps): 1440 x 1080 /59.94i
H.264 (HD)
XHQ mode (50 Mbps): 1920 x 1080 /59.94p/59.94i/29.97p/23.98p
UHQ mode (35 Mbps): 1920 x 1080 /59.94i/29.97p/23.98p
H.264 (SD)
720 x 480 /59.94
H.264 (Web)
HQ mode (3 Mbps): 960 x 540 /29.97p/23.98p
LP mode (1.2 Mbps): 480 x 270 /29.97p/23.98p
PAL Setting
MPEG-2 Long GOP
HQ Mode:
1920 x 1080 /50i/25p/2p
1440 x 1080 /50i
1280 x 720 /50p
SP Mode:
1440 x 1080 /50i
1280 x 720 /50p
AVCHD
Progressive mode (28 Mbps): 1920 x 1080 /50p
HQ mode (24 Mbps): 1920 x 1080 /50i
SP mode (17 Mbps): 1920 x 1080 /50i
LP mode (9 Mbps): 1440 x 1080 /50i
EP mode (5 Mbps): 1440 x 1080 /50i
H.264 (HD)
XHQ mode (50 Mbps): 1920 x 1080 /50p/50i/25p
UHQ mode (35 Mbps): 1920 x 1080 /50i/25p
H.264 (Web)
HQ mode (3 Mbps): 960 x 540 /25p
LP mode (1.2 Mbps): 480 x 270 /25p | | Audio Recording | MPEG-2 Long GOP/H.264: LPCM 2ch/4ch, 48 kHz, 16-bit
AVCHD: AC3 2ch
Web: μ-law 2ch/4ch | | Inputs | 1 x HD/SD-SDI (BNC)
2 x XLR 3-pin (MIC, +48V, LINE)
1 x 3.5mm mini jack
1 x Genlock (BNC)
1 x Time code (BNC)
1 x XLR 4-pin DC power input | | Outputs | 1 x Composite (BNC)
1 x 3G-SDI (BNC)
1 x HDMI
2 x RCA
2 x 3.5mm headphone jack
1 x Time code (BNC)
1 x XLR 4-pin DC power input | | USB | 1 x Network connection host / mass storage device connection | | Remote | 1 x 6-pin DIN
1 x 2.5mm mini jack | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Operating Humidity | 35 to 80% | | Storage Temperature | 14 to 122°F (-20 to 50°C) | | Storage Humidity | Under 85% | | Power | 12 VDC (10.5 to 17V) | | Power Consumption | Approx. 28 W | | Dimension L x W x H | 20.5 x 9.1 x 9.5" (521.0 x 231.0 x 242.3 mm) | | Weight | Without battery: Approx. 8.9 lb (4.0 kg)
With battery: Approx. 10.6 lb (4.8 kg) | | Package Weight | 9.05 lb | | Box Dimensions (LxWxH) | 19.7 x 13.5 x 9.4" | |
