User manual JVC ProHD-4601 HDMI to SDI Converter PROHD-4601

Operating instructions and pdf manual for use - JVC ProHD-4601 HDMI to SDI Converter PROHD-4601 User manual, User manual JVC ProHD-4601 HDMI to SDI Converter PROHD-4601, JVC, ProHD-4601, HDMI, to, SDI, Converter, PROHD-4601, Video


User manual for JVC ProHD-4601 HDMI to SDI Converter PROHD-4601

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.
JVC  ProHD-4601 HDMI to SDI Converter PROHD-4601
  • Manufacturer: JVC
  • Basic description and contents of package
  • Product classification: Professional Video - Signal Processing & Distribution - Analog & Digital Converters
  • Safety instructions
  • Startup and operation of the analog & digital converters
  • Tips for setting up your JVC
  • Settings and expert assistance
  • Contact JVC service
  • Troubleshooting
  • Warranty information
  • Price: 285 USD
We recommend checking out our discussion threads on the JVC ProHD-4601 HDMI to SDI Converter PROHD-4601, which address similar problems with connecting and setting up Analog & Digital Converters JVC.



User manual for the JVC ProHD-4601 HDMI to SDI Converter PROHD-4601

The user manual for the JVC ProHD-4601 HDMI to SDI Converter PROHD-4601 provides necessary instructions for the proper use of the product Professional Video - Signal Processing & Distribution - Analog & Digital Converters.

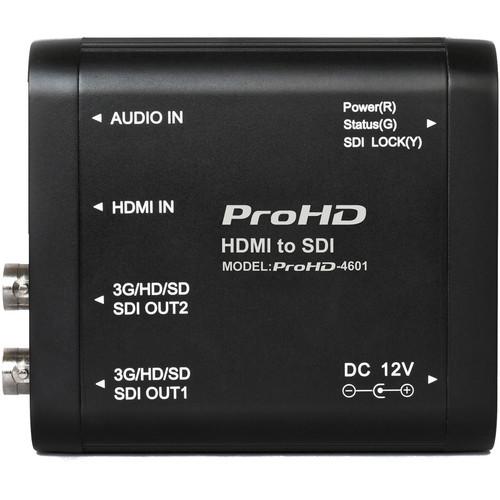

The JVC ProHD-4601 HDMI to SDI Converter converts an HDMI input to two SDI outputs, uncompressed, with embedded audio, allowing you to send the HDMI signal to two SDI devices. A metal mounting bracket is included that allows attachment on the camera or wall mounting.
If you own a JVC analog & digital converters and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the JVC ProHD-4601 HDMI to SDI Converter PROHD-4601 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the JVC ProHD-4601 HDMI to SDI Converter PROHD-4601:
Inputs 1x HDMI 1.3
1x 3.5 mm analog audio jack
Outputs 2x 3G/HD/SD-SDI
Video Format HDMI:
480i / 576i / 720p (60 / 59.94 / 50)
1080i (60 / 59.94 / 50)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)

SDI:
SMPTE-425M -- 1080p (60 / 59.94 / 50)
SMPTE-274M -- 1080p (30 / 29.97 / 25 / 24 / 23.98), 1080i (60 / 59.94 / 50)
SMPTE-296M -- 720p (60 / 59.94 / 50)
ITU-R BT.656 -- 576i (50)
SMPTE-125M -- 480i (59.94)
Audio Format 48 KHz sync
Power ≤3 W
Voltage DC 6-18 V
Operating Temperature 32 to 158°F (0 to 70°C)
Operating Humidity 10 - 90%
Dimensions 5.5 x 2.9 x 1.2" (14 x 7.5 x 3 cm)
Weight .3 lbs (138.5 g)
Packaging Info
Package Weight 1.05 lb
Box Dimensions (LxWxH) 6.4 x 5.1 x 3.0"
The user manual for the JVC ProHD-4601 HDMI to SDI Converter PROHD-4601 can be downloaded in .pdf format if it did not come with your new analog & digital converters, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other JVC users keep a unique electronic library for JVC analog & digital converterss, where you can use our link to download the user manual for the JVC ProHD-4601 HDMI to SDI Converter PROHD-4601.

The user manual lists all of the functions of the JVC ProHD-4601 HDMI to SDI Converter PROHD-4601, all the basic and advanced features and tells you how to use the analog & digital converters. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from JVC service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the JVC ProHD-4601 HDMI to SDI Converter PROHD-4601. User manuals are also available on the JVC website under Professional Video - Signal Processing & Distribution - Analog & Digital Converters.
