KanexPro 4K UHD HDBaseT-Lite 230' HDMI Extender EXT-HDBASE70E
  • Manufacturer: KanexPro
  • Basic description and contents of package
  • Product classification: Professional Video - Signal Processing & Distribution - Video Extenders & Repeaters
  • Safety instructions
  • Startup and operation of the video extenders & repeaters
  • Tips for setting up your KanexPro
  • Settings and expert assistance
  • Contact KanexPro service
  • Troubleshooting
  • Warranty information
  • Price: 250 USD
We recommend checking out our discussion threads on the KanexPro 4K UHD HDBaseT-Lite 230' HDMI Extender EXT-HDBASE70E, which address similar problems with connecting and setting up Video Extenders & Repeaters KanexPro.



User manual for the KanexPro 4K UHD HDBaseT-Lite 230' HDMI Extender EXT-HDBASE70E

The user manual for the KanexPro 4K UHD HDBaseT-Lite 230' HDMI Extender EXT-HDBASE70E provides necessary instructions for the proper use of the product Professional Video - Signal Processing & Distribution - Video Extenders & Repeaters.

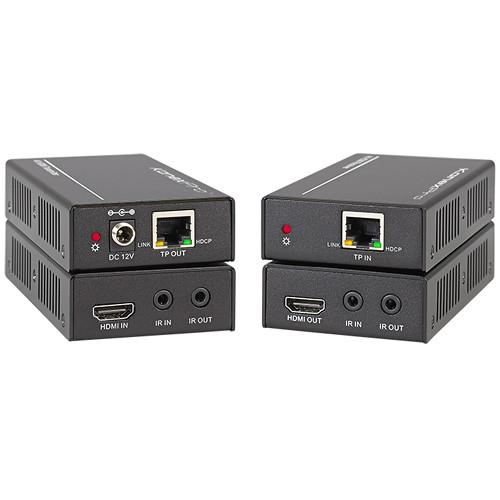

The KanexPro 4K UHD HDBaseT-Lite 230' HDMI Extender is an Ultra HD-compatible transmitter and receiver set that lets you extend HDMI signals over cost-effective Cat 5e/6 cable. Using HDBaseT technology, the extender lets you transmit video at distances up to 230 feet using a single Cat 6 cable, and Ultra HD video up to 49'. It also supports computer resolutions up to 1920 x 1200, 1080p60 video with Deep Color, and is fully HDCP and EDID compliant. In addition to video and digital audio signals, the extender can also carry bi-directional infrared (IR) and RS-232 signals between the transmitter and receiver for device control, as well as Power-over-Ethernet (PoE) so both units can be powered using the included locking power supply. For convenient install, both the transmitter and receiver include detachable mounting ears.

Note: Kanex recommends using a metal STP connector for RJ-45. The shielded layer of cable must be connected to the connector's metal shell for zero EMI noise and optimal transmission.
If you own a KanexPro video extenders & repeaters and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the KanexPro 4K UHD HDBaseT-Lite 230' HDMI Extender EXT-HDBASE70E in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the KanexPro 4K UHD HDBaseT-Lite 230' HDMI Extender EXT-HDBASE70E:
Specifications
Inputs Transmitter
1 x HDMI
1 x 3.5 mm mini-jack (for IR)

Receiver
1 x RJ-45 (HDBase T Lite)
1 x 3.5 mm mini-jack (for IR)
Outputs Transmitter
1 x RJ-45 (HDBase T Lite)
1 x 3.5 mm mini-jack (for IR)

Receiver
1 x HDMI
1 x 3.5 mm mini-jack (for IR)
Audio Support Digital audio over HDMI
Transmission Distance Cat 6 Cable: 230' (70 m); 49' (15 m) for Ultra HD video
Signal to Noise Ratio (SNR) > 70 dB at 100 MHz at 100 m
Bandwidth 10.2 Gbps
THD < 0.005% at 1 KHz
Impedance 75 Ohms
Signal Level 2.9 to 3.3 VDC (TMDS)
Resolution Support HDMI: 480i, 576i, 480p, 576p, 720p, 1080i, 1080p, 4K (at 30 Hz)

Computer: 640x480 @ 60 Hz, 640x480 @ 72 Hz, 640x480 @ 75 Hz, 800x600 @ 60 Hz, 800x600 @ 72 Hz, 800x600 @ 75 Hz, 1024x768 @ 60 Hz, 1024x768 @ 70 Hz, 1024x768 @ 75 Hz, 1280x720 @ 60 Hz, 1280x1024 @ 60 Hz, 1280x1024 @ 75 Hz, 1600x1200 @ 60 Hz, 1920x1080 @ 60 Hz, 1920x1200 @ 60 Hz
HDCP Compatible HDCP 1.4
Compliance FCC, CE, UL
Power Input 5 VDC, 1 A
Power Consumption Transmitter: 4.2 W
Receiver: 3.5 W
Operating Temperature 32 to 122°F (0 to 50°C)
Humidity 10 to 90%
Dimensions Transmitter: 4.7 x 0.9 x 2.4" (12 x 2.4 x 6.1 cm)
Receiver: 4.7 x 0.9 x 2.4" (12 x 2.4 x 6.1 cm)
Weight 1.76 lb (0.8 kg) (transmitter and received combined)
Packaging Info
Package Weight 1.6 lb
Box Dimensions (LxWxH) 7.795 x 5.118 x 4.331"
