User manual Kino Flo 4Bank Fixture (4') CFX-484

Operating instructions and pdf manual for use - Kino Flo 4Bank Fixture (4') CFX-484 User manual, User manual Kino Flo 4Bank Fixture (4') CFX-484, Kino, Flo, 4Bank, Fixture, 4', CFX-484, Video


User manual for Kino Flo 4Bank Fixture (4') CFX-484

Kino Flo  4Bank Fixture (4') CFX-484
  • Manufacturer: Kino Flo
  • Basic description and contents of package
  • Product classification: Lighting & Studio - Continuous Lighting - Fluorescent Lights
  • Safety instructions
  • Startup and operation of the fluorescent lights
  • Tips for setting up your Kino Flo
  • Settings and expert assistance
  • Contact Kino Flo service
  • Troubleshooting
  • Warranty information
  • Price: 346 USD

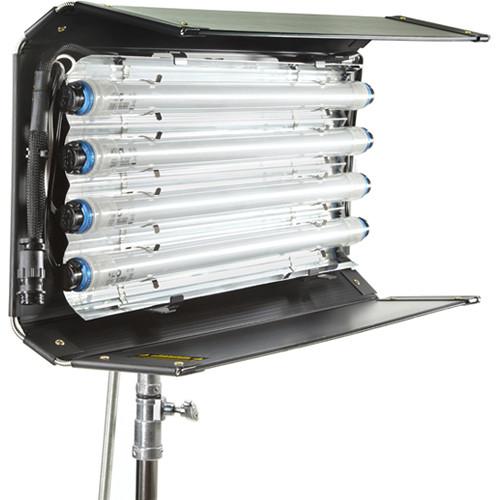

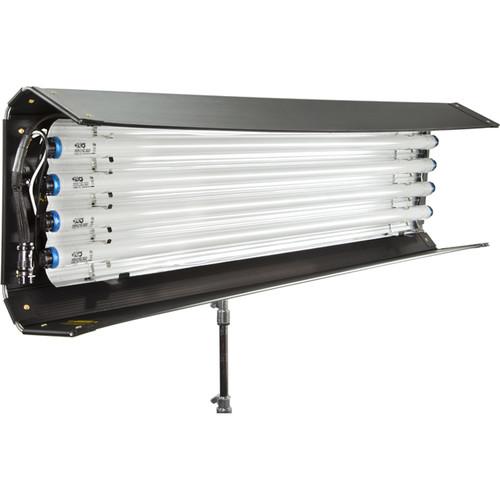

Kino Flo  4Bank Fixture (4') CFX-484 Kino Flo  4Bank Fixture (4') CFX-484
Click to enlarge image

We recommend checking out our discussion threads on the Kino Flo 4Bank Fixture (4') CFX-484, which address similar problems with connecting and setting up Fluorescent Lights Kino Flo.



User manual for the Kino Flo 4Bank Fixture (4') CFX-484

The user manual for the Kino Flo 4Bank Fixture (4') CFX-484 provides necessary instructions for the proper use of the product Lighting & Studio - Continuous Lighting - Fluorescent Lights.

The 4' 4Bank Fixture from Kino Flo is a 4-lamp fluorescent light that outputs the equivalent of a 1,000W softlight while consuming a fraction of the traditional fixture's electrical draw. When used with a standard or DMX ballast (purchased separately) the light has 2 or 4 lamp switching to vary the power output as well as standard and High Output settings to avoid color shifting associated with dimming. Unlike other ballasts, Kino Flo's optional ballasts can be located up to 75' from the head with no power loss, solving the problem of adjustments when the light is hung overhead. Optional True Match lamps that feature a high CRI of 95 are available in 3200K or 5600K color balance.
If you own a Kino Flo fluorescent lights and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Kino Flo 4Bank Fixture (4') CFX-484 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Kino Flo 4Bank Fixture (4') CFX-484:
Lamps 4 x F75/T12 Lamp Sockets
Mounting Lollipop-type with 5/8" (16 mm) receiver
Photometrics 173 fc @ 4.0' (1.2 m)
49 fc @ 8.0' (2.4 m)
17 fc @ 14' (4.2 m)
1,303 lux @ 4.9' (1.5)
503 lux @ 8.2' (2.5 m)
208 lux @ 13.1' (4.0 m)
Approvals and Certifications UL listed, CE approved
Dimensions 52 x 13 x 3.5" (132 x 33 x 9 cm) with 6.5" barndoors
Weight 11.5 lb (5.2 kg)
Packaging Info
Package Weight 8.55 lb
Box Dimensions (LxWxH) 51.0 x 13.0 x 4.0"
The user manual for the Kino Flo 4Bank Fixture (4') CFX-484 can be downloaded in .pdf format if it did not come with your new fluorescent lights, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Kino Flo users keep a unique electronic library for Kino Flo fluorescent lightss, where you can use our link to download the user manual for the Kino Flo 4Bank Fixture (4') CFX-484.

The user manual lists all of the functions of the Kino Flo 4Bank Fixture (4') CFX-484, all the basic and advanced features and tells you how to use the fluorescent lights. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Kino Flo service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Kino Flo 4Bank Fixture (4') CFX-484. User manuals are also available on the Kino Flo website under Lighting & Studio - Continuous Lighting - Fluorescent Lights.
