User manual for the Kino Flo Celeb 401Q DMX LED Light CEL-401QP-120U
The user manual for the Kino Flo Celeb 401Q DMX LED Light CEL-401QP-120U provides
necessary instructions for the proper use of the product Lighting & Studio - Continuous Lighting - LED Lights.

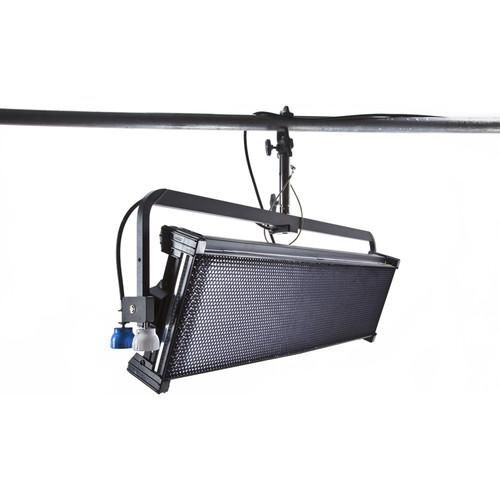

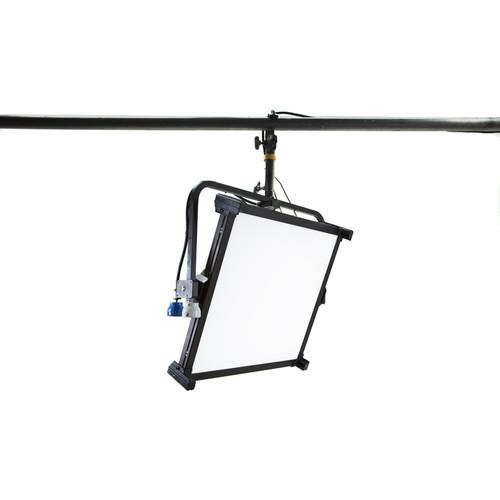

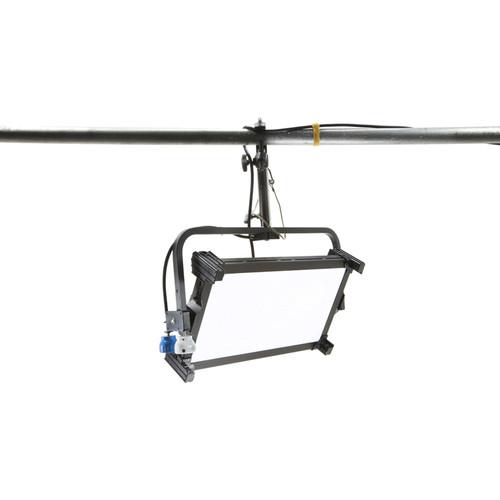

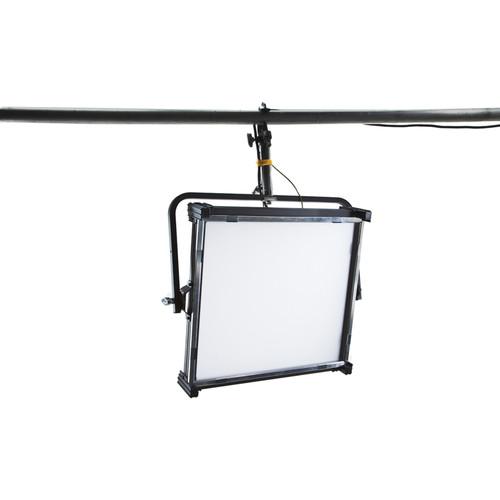

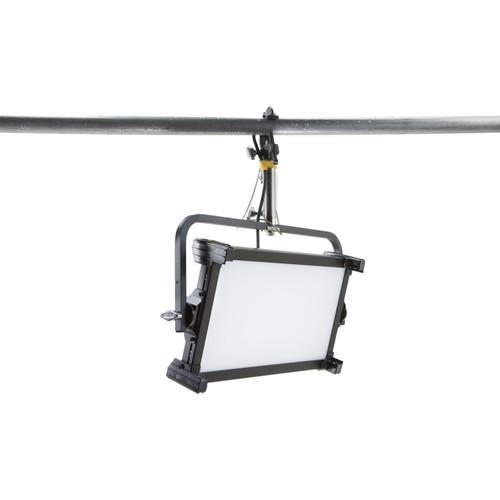

Kino Flo is improving upon their broad, soft LED panels with this pole-operated yoke mount Celeb 401Q DMX LED Light, which adds wireless DMX support through compatibility with the Lumen Radio transmitter along with an expanded color temperature range of 2700-6500K for greater versatility. This 30 x 30.5" panel offers the equivalent output of a 2000W tungsten soft light while only drawing about 200W and it has a high CRI of 95 for accurate color rendition. Also, there are five programmable presets on the back for quickly jumping to specific color temperatures for matching your scene. And it has a digital display for checking the temperature and output settings.

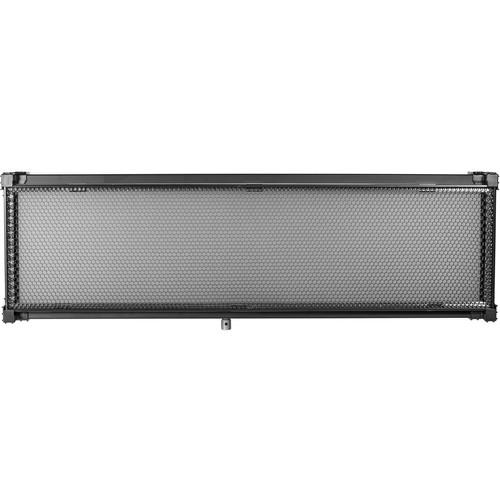

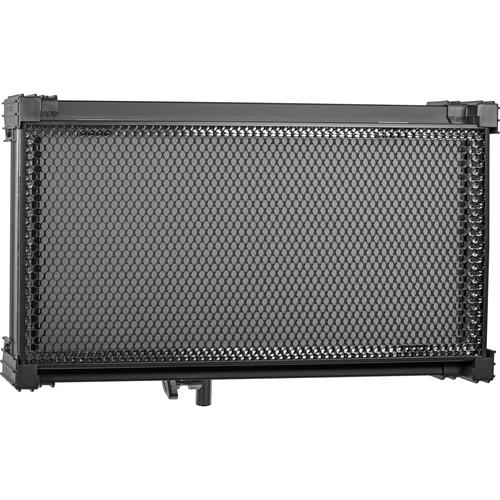

In addition to wireless DMX, the unit features wired 5-pin XLR inputs and outputs for remote control of dimming from 0-100% along with an on-board dial for quickly adjusting it by hand. The fixture's LED technology ensures that it's also flicker-free and silent. For maximum flexibility, the Celeb benefits from the ability to be powered by a universal 100-240 VAC power source or a portable 18-24 VDC battery option. The light comes with a locking power cord, a gel frame, and a 90° louver and it can accept numerous accessories.
If you own a Kino Flo led lights and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Kino Flo Celeb 401Q DMX LED Light CEL-401QP-120U in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Kino Flo Celeb 401Q DMX LED Light CEL-401QP-120U:
Specifications
Rating
2000 W tungsten soft light equivalent
CRI
95
Color Temperature
2700-6500K
Dimming
1-100%
DMX
Wired via 5-pin XLR male and female connections Wireless via Lumen Radio support
Mount
Pole-operated yoke mount with Junior pin
Power Connections
AC: IEC connection DC: 3-pin XLR female
Power Requirements
100-240 VAC, 50/60 Hz, 1.8 A 18-28 VDC, 8.25 A
Power Draw
AC: 210 W DC: 198 W
Operating Conditions
14 to 104°F (-10 to 40°C)
Plug
U.S./No. American
Dimensions
30 x 30.5 x 5.0" (76 x 77.5 x 13 cm)
Weight
26 lb (12 kg)
