User manual Kino Flo Diva-Lite 415 Universal Kit KIT-DV4-230U/STD

Operating instructions and pdf manual for use - Kino Flo Diva-Lite 415 Universal Kit KIT-DV4-230U/STD User manual, User manual Kino Flo Diva-Lite 415 Universal Kit KIT-DV4-230U/STD, Kino, Flo, Diva-Lite, 415, Universal, Kit, KIT-DV4-230U/STD,


User manual for Kino Flo Diva-Lite 415 Universal Kit KIT-DV4-230U/STD

Kino Flo Diva-Lite 415 Universal Kit KIT-DV4-230U/STD
  • Manufacturer: Kino Flo
  • Basic description and contents of package
  • Product classification: Lighting & Studio - Continuous Lighting - Fluorescent Kits
  • Safety instructions
  • Startup and operation of the fluorescent kits
  • Tips for setting up your Kino Flo
  • Settings and expert assistance
  • Contact Kino Flo service
  • Troubleshooting
  • Warranty information
Kino Flo Diva-Lite 415 Universal Kit KIT-DV4-230U/STD Kino Flo Diva-Lite 415 Universal Kit KIT-DV4-230U/STD Kino Flo Diva-Lite 415 Universal Kit KIT-DV4-230U/STD Kino Flo Diva-Lite 415 Universal Kit KIT-DV4-230U/STD Kino Flo Diva-Lite 415 Universal Kit KIT-DV4-230U/STD Kino Flo Diva-Lite 415 Universal Kit KIT-DV4-230U/STD
Click to enlarge image

We recommend checking out our discussion threads on the Kino Flo Diva-Lite 415 Universal Kit KIT-DV4-230U/STD, which address similar problems with connecting and setting up Fluorescent Kits Kino Flo.



User manual for the Kino Flo Diva-Lite 415 Universal Kit KIT-DV4-230U/STD

The user manual for the Kino Flo Diva-Lite 415 Universal Kit KIT-DV4-230U/STD provides necessary instructions for the proper use of the product Lighting & Studio - Continuous Lighting - Fluorescent Kits.

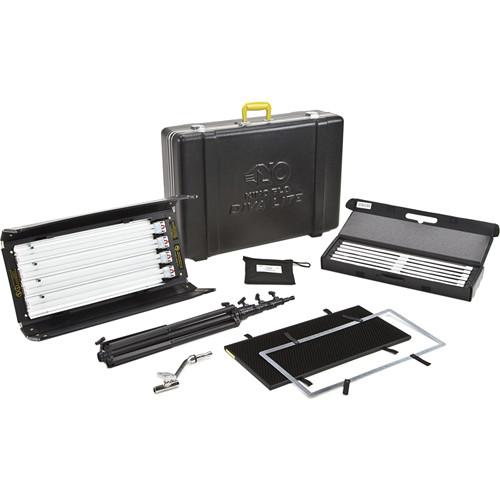

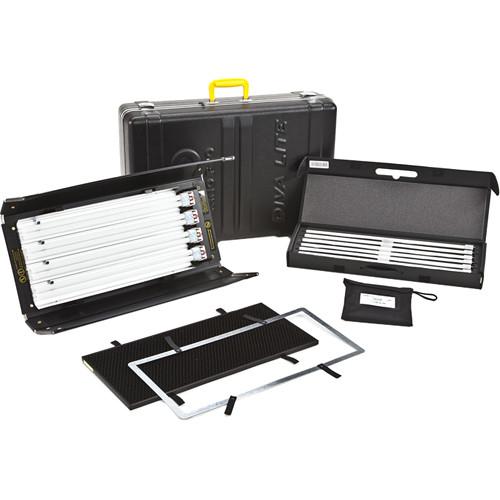

The Kino Flo Diva-Lite 415 Universal Kit with Travel Case is an ideal road kit for videographers and photographers. The kit contains 1 Diva-Lite 415 Universal fixture complete with a Flozier diffuser, offset mount, 90-degree louver, filter frame, light stand, lamp case and a travel case. This version of the Diva-Lite 415 has a 2-Prong Euro plug that can be used in North America with the purchase of an inexpensive plug adapter.
If you own a Kino Flo fluorescent kits and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Kino Flo Diva-Lite 415 Universal Kit KIT-DV4-230U/STD in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Kino Flo Diva-Lite 415 Universal Kit KIT-DV4-230U/STD:
Specifications
  • Diva-Lite 415 Fluorescent Fixture
    Lamp Socket 4 x 55W Twin Tube Compact Fluorescent Lamp Sockets
    Photometric Data
    Footcandles 721 fc @ 2' (0.61 m)
    198 fc @ 4' (1.22 m)
    90 fc @ 6' (1.83 m)
    51 fc @ 8' (2.44 m)
    33 fc @ 10' (3.05 m)
    23 fc @ 12' (3.66 m)
    17 fc @ 14' (4.23 m)
    13 fc @ 16' (4.88 m)
    11 fc @ 18' (5.49 m)
    9 fc @ 20' (6.01 m)
    Lux 10,500 lux @ 1.64' (0.5 m)
    3,030 lux @ 3.28' (1 m)
    1,410 lux @ 4.92' (1.5 m)
    806 lux @ 6.56' (2 m)
    519 lux @ 8.20' (2.5 m)
    364 lux @ 9.84' (3 m)
    269 lux @ 11.48' (3.5 m)
    207 lux @ 13.12' (4 m)
    166 lux @ 14.76' (4.5 m)
    135 lux @ 16.40' (5 m)
    Dimming 5-100%
    Power
    Ballast Built-in
    Input Voltage 100-240 VAC, 50/60 Hz, 0.7 - 1/4 A
    Output Frequency 80 kHz
    Power Cable 15' (4.57 m) with inline switch
    Plug 2-Prong Euro
    General
    Mounting Center mount with 5/8" (16 mm) receiver
    Dimensions 26 x 12 x 6.0" (66 x 30.5 x 15 cm) including barndoors
    Weight 14.2 lb (6.4 kg)
    Packaging Info
    Box Dimensions (LxWxH) 28.2 x 12.7 x 8.0"
  • Off-Set Adapter
    Packaging Info
    Box Dimensions (LxWxH) 7.1 x 1.2 x 0.4"
  • 2 x
    Flozier Diffuser - 1 Stop
    Packaging Info
    Box Dimensions (LxWxH) 9.0 x 8.0 x 0.45"
  • STD-M30 Light Stand (8')
    Dimensions 8.0' (2.4 m) Maximum height
    30" (0.76 m) Minimum height
    35.5" (0.9 m) Folded Length
    Weight Capacity 20 lb (9.0 kg)
    Packaging Info
    Box Dimensions (LxWxH) 30.1 x 4.0 x 3.8"
  • KAS-CL6 6-Lamp Carry Case
    Material Exterior: Polypropylene
    Interior: Foam slots
    Type of Closure Touch fastener
    Exterior Dimensions 24 x 7.0 x 2.5" (61 x 18 x 6.5cm) (LxWxH)
    Interior Dimensions Not Specified by Manufacturer
    Carrying/Transport Options Handheld
    Weight 12.8 oz (382g)
    Packaging Info
    Box Dimensions (LxWxH) 23.8 x 6.8 x 2.6"
  • KAS-D4-CS Diva-Lite 401 Travel Case
    Material Exterior: High-density polyethylene molded plastic
    Interior: Custom cut-outs
    Type of Closure Two latches
    Exterior Dimensions 31.5 x 9.0 x 22.0" (80.0 x 22.9 x 55.9 cm)
    Interior Dimensions Not Specified by Manufacturer
    Accommodates Kino-Flo Diva-Lite 401 fixture, stands, mount, flozier and lamp case
    Carrying/Transport Options Folding carry handle
    Weight 14 lb (6.4 kg)
    Packaging Info
    Box Dimensions (LxWxH) 33.0 x 17.5 x 17.5"
The user manual for the Kino Flo Diva-Lite 415 Universal Kit KIT-DV4-230U/STD can be downloaded in .pdf format if it did not come with your new fluorescent kits, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Kino Flo users keep a unique electronic library for Kino Flo fluorescent kitss, where you can use our link to download the user manual for the Kino Flo Diva-Lite 415 Universal Kit KIT-DV4-230U/STD.

The user manual lists all of the functions of the Kino Flo Diva-Lite 415 Universal Kit KIT-DV4-230U/STD, all the basic and advanced features and tells you how to use the fluorescent kits. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Kino Flo service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Kino Flo Diva-Lite 415 Universal Kit KIT-DV4-230U/STD. User manuals are also available on the Kino Flo website under Lighting & Studio - Continuous Lighting - Fluorescent Kits.
