User manual for the Korg KingKORG - Analog Modeling Synthesizer KINGKORG

The user manual for the Korg KingKORG - Analog Modeling Synthesizer KINGKORG provides necessary instructions for the proper use of the product Pro Audio - Musical Instruments - Synthesizer Keyboards.

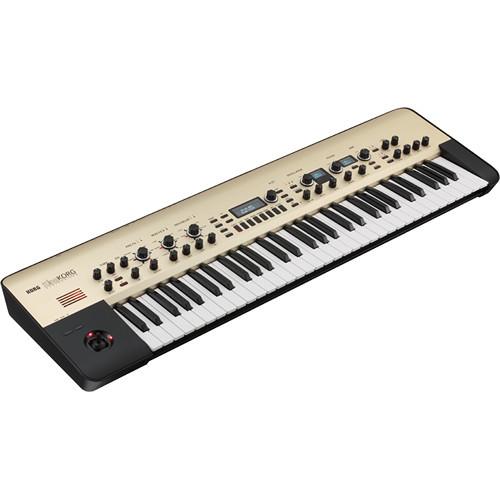

The KingKORG from Korg is the 61-key analog modeling synthesizer that bears the design philosophy of classic Korg analog synthesizers such as the MS-20 and the Mono/Poly, instruments which in turn inspired many of the company's subsequent creations. Ready for live performance, the keyboard features a healthy array of knobs and three displays, a main one for general feedback, and two dedicated to the oscillator and filter sections. The velocity-sensitive keys can have their response adjusted (normal, shallow, or deep) to mimic the response of classic instruments.

The three-oscillator/two-timbre design, plus an XMT modeling sound engine allows the synthesizer to generate rich sounds while keeping both the oscillators and sound engine operations simple. In a conventional synthesizer, sound-creation requires adjusting oscillator settings one by one, whereas the KingKORG provides pre-set algorithms that contain combinations of various types and numbers of oscillators, allowing for easy and quick sound sculpting.

The oscillators are understandable to the beginner while at the same time satisfying for the expert. Algorithms include sawtooth and square wave, noise, in addition to numerous PCM/DWGS algorithms. The instrument also delivers a variety of filters, including those that reproduce the sounds of analog monophonic synthesizers used for lead and bass sounds in the 70's, the polyphonic synthesizers of 80's new wave music, and the filters of the classic MS-20 analog synthesizer. The filters can also be made to self-oscillate.

Three master effects, each with six effect types, can be applied to any sounds. The Pre FX section includes distortion and an amp simulator, while many classic effects like phasing, chorusing, and tremolo are found in the Mod FX section. The Rev/Delay section delivers ambience effects such as hall reverb and modulation delay. Each effect processor has a dedicated front panel dial for selecting the type. Finally, a fully analog vacuum tube driver circuit can be used as a mastering effect to add warmth, overdrive distortion, or anything in between.

A microphone input provides the audio source for the built-in vocoder. The vocoder features Formant Shift that dramatically modifies the tonal character of the modulated sound, as well as Formant Hold, which allows for "freezing" a vowel sound and playing it back from the keyboard. A step arpeggiator provides a choice of six arpeggio types, with the ability to specify the duration, interval, and on/off status of each step. A virtual patch function continues the classic synthesizer mold, allowing for connecting various functions using the six Virtual Patch assignments per timbre.
If you own a Korg synthesizer keyboards and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Korg KingKORG - Analog Modeling Synthesizer KINGKORG in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Korg KingKORG - Analog Modeling Synthesizer KINGKORGDownload user manual for Korg KingKORG - Analog Modeling Synthesizer KINGKORG
(PDF file, 25.52 MB)
Additional parameters of the Korg KingKORG - Analog Modeling Synthesizer KINGKORG:
    Synthesis Method XMT (eXpanded Modeling Technology)
    Keyboard 61 semi-weighted, velocity sensitive keys
    Adjustable key response (Normal, Shallow, Deep)
    Polyphony Up to 24 voices
    Programs 8 x Categories
    Up to 2 timbres (layered or split) per program
    Presets 200
    User Memory 100
    Oscillators Structure
    3 x Oscillators (Analog, Noise, DWGS, PCM, Mic In)
    Number of Types
    127 (Analog and Noise, 32 DWGS, 64 PCM, 30 Mic In)
    Filters Structure
    1 x Filter per timbre (low-pass, high-pass, band-pass)
    Filter Types
    7 x LPF, 5 x HPF, 6 x BPF, including modeling filters
    2 x EG units, 2 x LPF units, 1 x Amp
    Virtual Patch
    6 x Virtual patches per timbre
    Effects Sections
    3 x Program effects (Pre FX, Mod FX, Rev/Delay) + EQ (2-band) + Tube (stereo)
    6 x Pre FX (Distortion, Decimator, Ring Mod, GT Amp, EP Amp, Tone)
    6 x Mod FX (Flanger, Chorus, U-Vibe, Tremolo, Phaser, Rotary)
    6 x Rev/Delay (Hall, Room, Plate, Tape Echo, Mod Delay, BPM Delay)
    Vocoder 16-band with formant shift and formant hold
    Arpeggiator Up to 8 steps (number of steps can be changed)
    6 types (Up, Down, Alt1, Alt2, Random, Trigger)
    Controllers Controllers
    Joystick, Octave Up/Down button, Category/Favorite button
    Control Input
    Damper pedal (supports half damping)
    Control Output
    CV/Gate Out
    Inputs Mic In Connector
    1 x XLR (balanced)
    Input Impedance
    Maximum level
    -12 dBu
    Outputs Connector
    2 x 1/4" TS phone "L/MONO, R" (unbalanced)
    Load Impedance
    Maximum Level
    -12 dBu
    Headphones Connector
    1 x 1/8" (3.5 mm) stereo mini phone
    Maximum Level
    60 mW + 60 mW @ 33Ω
    Other Connectors 2 x 5-pin DIN MIDI I/O
    1 x USB Type B
    Display Main Display
    16 character x 2 line OLED (Organic Light-Emitting Diode)
    Sub Display for Oscillator and Filter Sections
    128 x 64 dot OLED
    Operating Temperature 32 to 104°F (0 to 40°C)
    Power Requirements Via included external power supply
    10W consumption
    Dimensions (WxDxH) 40.4 x 12.3 x 3.8" (1027 x 313 x 96 mm)
    Weight 15.4 lb (7 kg)
    Packaging Info
    Package Weight 22.7 lb
    Box Dimensions (LxWxH) 47.0 x 18.0 x 8.0"
    The user manual for the Korg KingKORG - Analog Modeling Synthesizer KINGKORG can be downloaded in .pdf format if it did not come with your new synthesizer keyboards, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Korg users keep a unique electronic library for Korg synthesizer keyboardss, where you can use our link to download the user manual for the Korg KingKORG - Analog Modeling Synthesizer KINGKORG.

    The user manual lists all of the functions of the Korg KingKORG - Analog Modeling Synthesizer KINGKORG, all the basic and advanced features and tells you how to use the synthesizer keyboards. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Korg service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Korg KingKORG - Analog Modeling Synthesizer KINGKORG. User manuals are also available on the Korg website under Pro Audio - Musical Instruments - Synthesizer Keyboards.
