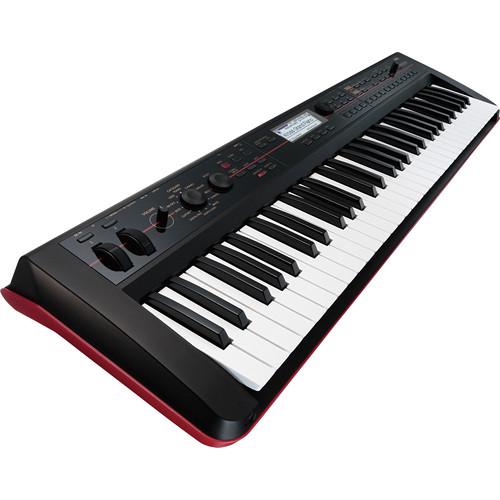

Keyboard | 61-Key Velocity Sensitive Keyboard Standard C2 to C7 (Transposable in the Range of {C1 to C6} to {C3 to C8}) |
System | EDS-i (Enhanced Definition Synthesis-integrated) |
Polyphony | Maximum: 80 Voices (80 Oscillators)/Single Mode 40 Voices (40 Oscillators)/Double Mode The maximum simultaneous voice polyphony will vary depending on oscillator settings such as stereo multi-samples and velocity crossfading |
PCM Memory | 112 MB, Approximate (In Case of 48 kHz, 16-Bit Linear PCM Converted) 421 Multi-Samples, Including 6 Stereo Multi-Samples 890 Drum Samples, Including 49 Stereo Drum Samples |
Oscillator | OSC 1 (Single) OSC 1 + 2 (Double) Stereo multi-samples are supported, and four levels of velocity switching, crossfading, and layering are possible for each oscillator |
Filter | Routing: Single, Serial, Parallel, 24 dB 2x Multi-Mode Filters Per Oscillator: Low-Pass, High-Pass, Band-Pass, Band Reject |
Modulation | 2x Envelope Generators Per Oscillator (Filter & Amp) 2x LFOs 2x Key-Tracking Generators (Filter & Amp) 2x AMS Mixers 1x Pitch Envelope Generator 1x Common LFO 2x Common Key-Tracking Generators |
Combination | 16x Timbres (Maximum) Key zone and velocity zone settings can be used to switch sounds, and the Tone Adjust function allows Program settings to be modified Master Keyboard Functionality: External MIDI Device Control |
Drum Kits | Samples: Stereo and Mono 1x Velocity 4-Zone Switch (Crossfades and Layers) Programs: 640 User (512 Preload) Combination: 384 User (256 Preload) Drum Kit: 48 User (32 Preload) Program: 256 GM2 Presets and 9 GM2 Drums Program |
Preset | User: 64 (16 x 4 Banks) |
Effects | 5x Insert Effects (Stereo In/Out) 2x Master Effects (Stereo In/Out) Modulation: Dynamic Modulation Effect Types: 74x Types for Insert Effects 101x Types for Master Effect 1 120x Types for Master Effects 2 Effect Control Busses: Stereo Side Chain (Limiter, Gate, Vocoder) |
Arpeggiator | Polyphonic Arpeggiator Program Mode: 1 Unit Combination, Sequencer Mode: 2 Units Patterns: 1,028 User Arpeggio Patterns (916 Preload), 5 Preset Arpeggio Patterns 12x Tones 64x Steps (Maximum) |
Sequencer | Step Sequencer Program Mode: 1 Unit Combination Mode: 1 Unit Sequencer Mode: 1 Unit 12x Tones 64x Steps (Maximum) Drum Tracks: 700 Preset Patterns, Trigger/Sync/Zone Settings Sequencer Tracks: 16-Track MIDI Sequencer 1x Pause Button 1x REW Button 1x FF Button 1x Locate Button 1x REC Button 1x Start/Stop Button |
Songs | 128 (Maximum) Resolution: 1/480 Tempo: 40.00 to 300.00 (1/100 BPM Resolution) Template Song: 16 Preset, 16 User |
Memory | 210,000 MIDI Events (Maximum) |
Counter | Measure/Beat/Tick Hour/Minute/Second |
Preset | 700x Patterns (Shared with Drum Track Patterns) |
Format | Korg (KROSS) Format, SMF Format 0 and 1 |
Recording Format | PCM Audio Format, 48 kHz/16-Bit Import: WAV, 44.1 kHz/16-Bit, 48 kHz/16-Bit (Stereo), Automatic Conversion from 44.1 kHz to 48 kHz Export: WAV, 48 kHz/16-Bit Continuity Recording Time: 3 hours (Maximum) Recording Time: Approximately 90 Minutes Per 1 GB (Depending on SD Card Used) Songs: 200 (Maximum) Multi-Track Recording: Depends on Space Remaining on SD Card |
Media | File, Utility, Information |
Controllers | General Control: 1x Pitch Bend Wheel 1x Modulation Wheel 1x SW 1 1x SW 2 1x Tempo Knob 1x Tap Button
Step Sequencer/Favorite: 1 to 16 Buttons 1x Step Seq Button 1x Set Up Button for Control 1x Run Button 1x Favorite Button 1x Bank Button for Control LED: A/B/C/D
Drum Track: 1x Drum Track Button
Arpeggiator: 1x Arp Button
Effect On/Off: 1x Master FX Button
Audio Recorder: 1x Setup Button 1x Play/Pause Button |
Display | 240 x 64 pixel LCD w/backlight, with adjustable contrast |
Category | 1x Category Dial 1x Select Dial |
Mode | 1x Combi Button 1x Prog Button 1x SEQ Button 1x Global/Media Button |
Value | 1x Value Dial Cursor Left/Right/Up/Down Buttons 1x Exit Button 1x Enter Button 1x Function Button 1x Page + Button 1x Page - Button 1x Menu Button |
Tempo | 1x Tempo Knob 1x Tap Button |
Layer | 1x Split Button 1x Layer Button |
Control Input | Damper (Half Damper Supported) Assignable Switch Assignable Pedal |
Output | 2x 1/4" (6.35 mm) Phone Jack, Unbalanced 1x 1/8" (3.5 mm) Stereo Mini Phone Jack Headphone Output 1x 5-Pin DIN MIDI Output |
Output Impedance | 1/4" Outputs: 1.1 kΩ, Mono Output 555 Ω Headphone Output: 33 Ω, Maximum Level 40 + 40 mW |
Input | 1x 1/8" (3.5 mm) Stereo Mini Jack Line Input 1x 1.4" (6.35 mm) Phone Mic Input 1x 5-Pin DIN MIDI Input 1x USB Type B |
Input Impedance | Line Input: 1.1 kΩ Mic Input: 33 Ω |
Maximum Input | Line: -42 to 0 dBu Mic: -48 to -6 dBu |
SD Card Slot | 1 slot 2 GB Maximum SD Memory Card is supported 32 GB Maximum SDHC Memory Card is supported SDXC Cards are NOT Supported |
Power Supply | AC Adapter (9 V DC) 6x AA Alkaline or Nickel Metal Hydride Batteries |
Battery Life | Alkaline Batteries: 4 Hours (Approximate) Ni-MH Batteries: 5 Hours (Approximate) |
Power Consumption | 5 W |
Compatibility | Windows: XP Home/Professional SP3 Vista SP2 (All Editions) 7 SP 1 (All Editions) 8 (All Editions) USB Port Required
Mac OS X OS X 10.5 OS X 10.6 OS X 10.7 OS X 10.8 Intel Processor and USB Port Required |
Dimensions (W x D x H) | 37.09 x 11.06 x 3.58" (942 x 281 x 91 mm) |
Weight | 9.48 lb (4.3 kg) |
