Korg MicroKorg XL  Synthesizer/Vocoder MICROXLPLUS
  • Manufacturer: Korg
  • Basic description and contents of package
  • Product classification: Pro Audio - Musical Instruments - Synthesizer Keyboards
  • Safety instructions
  • Startup and operation of the synthesizer keyboards
  • Tips for setting up your Korg
  • Settings and expert assistance
  • Contact Korg service
  • Troubleshooting
  • Warranty information
  • Price: 500 USD
We recommend checking out our discussion threads on the Korg MicroKorg XL Synthesizer/Vocoder MICROXLPLUS, which address similar problems with connecting and setting up Synthesizer Keyboards Korg.



User manual for the Korg MicroKorg XL Synthesizer/Vocoder MICROXLPLUS

The user manual for the Korg MicroKorg XL Synthesizer/Vocoder MICROXLPLUS provides necessary instructions for the proper use of the product Pro Audio - Musical Instruments - Synthesizer Keyboards.

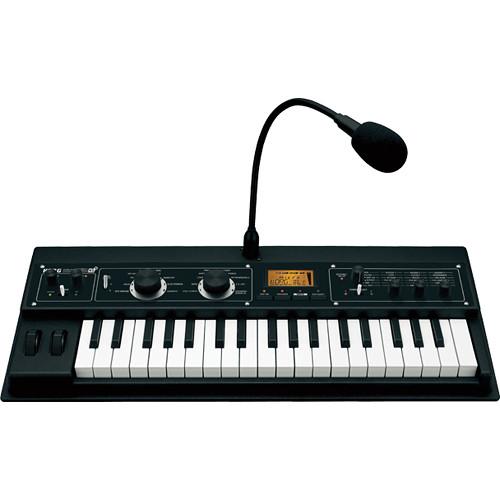

The MicroKorg XL+ from Korg is a synthesizer/vocoder housed in a compact but rugged enclosure and features thirty-seven, velocity sensitive "Natural Touch" mini-keys. Combining analog modeling with a vocoder provides the user with a wide range of styles and sounds. Initially featuring 128 programs, the sound banks can be further expanded using the downloadable and free editor software.

For band use the keyboard includes the piano sound from Korg's SGproX classic stage piano, as well as its hard-edged, grand-type electric piano. Other sounds include the M1 and the VOX organ sounds, vintage tape-type string and flute machines, and more. All of the sounds can be played full-range either by using the onboard octave switch, or by connecting a MIDI-capable, full-sized keyboard.

A sound selector allows for choosing sounds using two large dials, "music genre" and "instrument category." This arrangement is further enhanced by letting the user leave one of the dials fixed and use the other to make program changes during a song (music genre fixed), or use it to select vocoder variations (instrument category fixed).

The MMT (Multiple Modeling Technology) engine provides two oscillators for sound generation. Oscillator 1 features seven oscillator algorithms including formant waveforms such as human voice, and PCM/DWGS waveforms for vintage keyboard and strings. It also allows for the use of techniques such as cross modulation, unison, and VPM (Variable Phase Modulation). And by taking advantage of modulation (sync or ring) with Oscillator 2, it's easy to create complex sounds.

The vocoder consists of a 16-band filter bank that simulates the sounds of the past, while also allowing for filter frequency shifting (Format Shift), or adjusting the level and pan of each band to dramatically change the overall character of a sound. A gooseneck microphone is included. Two master effects utilize the effect engine from the company's Kaoss Pad series, with a total of seventeen types including delay and echo, a ring modulator and grain shifter. Time based effects can be synchronized to MIDI clock.
If you own a Korg synthesizer keyboards and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Korg MicroKorg XL Synthesizer/Vocoder MICROXLPLUS in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Korg MicroKorg XL  Synthesizer/Vocoder MICROXLPLUSDownload user manual for Korg MicroKorg XL Synthesizer/Vocoder MICROXLPLUS
(PDF file, 8.1 MB)
Additional parameters of the Korg MicroKorg XL Synthesizer/Vocoder MICROXLPLUS:
Synthesis Method MMT (Multiple Modeling Technology)
2 oscillators + noise generator structure
Keyboard 37 velocity sensitive keys ("Natural Touch" mini-keyboard)
Polyphony 8 voice maximum (4 voices when using Vocoder)
Multitimbral 2-part when using Layer, Split, or Multi modes
Programs 128 (A/B banks x 8 genres x 8 category)
Oscillators Oscillator 1
Waveform - 8 types (Sawtooth, Pulse, Triangle, Sine, Formant, Noise, DWGS, Audio In)
Modulation - Waveform, Cross, Unison, VPM
Oscillator 2
Waveform - 4 types (Sawtooth, Pulse, Triangle, Sine)
Modulation - Ring, Sync, Ring+Sync
Waveshape
Type - Drive, Decimator, HardClip, OctSaw, MultiTri, MultiSin, SubOSCSaw, SubOSCSqu, SubOSCTri, SubOSCSin, LevelBoost,
Filters Multimode Filters
Filter 1
-24 dB/octave low-pass
-12 dB/octave low-pass
-12 dB/octave band-pass
-12 dB/octave high-pass
Thru
Filter 2
Low-pass, high-pass, band-pass (switchable)
Effects Timber
2-band EQ
Master Effects
2 units, 17 effect algorithms
Vocoder 16-channel with formant shift and formant hold and adjustable level and pan for each channel
Arpeggiator 6 types (Up, Down, Alt1, Alt2, Random, Trigger, Individual step on/off)
Controllers Pitch Bend wheel
Modulation wheel
Inputs 1 x XLR Microphone, balanced (top panel)
1 x 1/4" TS phone, unbalanced with mic/line switch (rear panel)
Outputs 2 x 1/4" TS phone L/MONO, R (unbalanced)
Headphones 1 x 1/4" TRS phone
Other Connectors 2 x 5-pin DIN MIDI I/O
1 x USB Type B
Display Custom LCD
Power Requirements 9V DC external power supply (included)
6 x AA batteries (optional)
Battery Life Approximately 4 hours with alkaline batteries
System Requirements For Librarian/Editor Software
Mac
Intel or PowerPC processor
OS X version 10.5 or later (Intel only)
Available USB port
PC
Computer that satisfies the following operating system requirements
Windows XP SP3 (32-bit), Vista SP2 (32- and 64-bit), Windows 7 SP1 (32- and 64-bit)
Available USB port
Dimensions (WxDxH) 21.9 x 9.1 x 2.9" (556 x 231 x 73 mm)
Weight 4.4 lb (2 kg) without batteries and microphone
Packaging Info
Package Weight 7.05 lb
Box Dimensions (LxWxH) 25.2 x 14.8 x 10.2"
The user manual for the Korg MicroKorg XL Synthesizer/Vocoder MICROXLPLUS can be downloaded in .pdf format if it did not come with your new synthesizer keyboards, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Korg users keep a unique electronic library for Korg synthesizer keyboardss, where you can use our link to download the user manual for the Korg MicroKorg XL Synthesizer/Vocoder MICROXLPLUS.

The user manual lists all of the functions of the Korg MicroKorg XL Synthesizer/Vocoder MICROXLPLUS, all the basic and advanced features and tells you how to use the synthesizer keyboards. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Korg service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Korg MicroKorg XL Synthesizer/Vocoder MICROXLPLUS. User manuals are also available on the Korg website under Pro Audio - Musical Instruments - Synthesizer Keyboards.
