User manual Korg MS-20 Mini - Monophonic Analog Synthesizer MS20MINI

Operating instructions and pdf manual for use - Korg MS-20 Mini - Monophonic Analog Synthesizer MS20MINI User manual, User manual Korg MS-20 Mini - Monophonic Analog Synthesizer MS20MINI, Korg, MS-20, Mini, Monophonic, Analog, Synthesizer, MS20MINI


User manual for Korg MS-20 Mini - Monophonic Analog Synthesizer MS20MINI

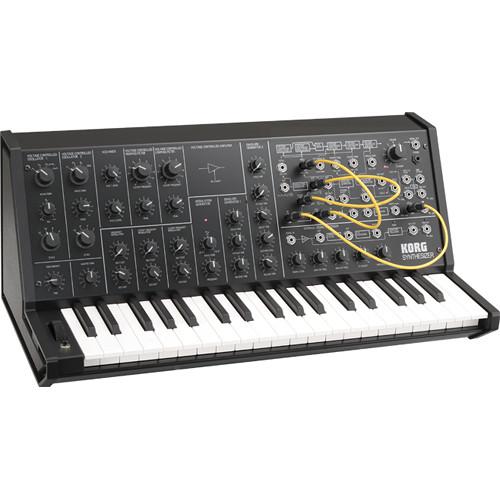

Korg MS-20 Mini - Monophonic Analog Synthesizer MS20MINI
  • Manufacturer: Korg
  • Basic description and contents of package
  • Product classification: Pro Audio - Musical Instruments - Synthesizer Keyboards
  • Safety instructions
  • Startup and operation of the synthesizer keyboards
  • Tips for setting up your Korg
  • Settings and expert assistance
  • Contact Korg service
  • Troubleshooting
  • Warranty information
  • Price: 450 USD
We recommend checking out our discussion threads on the Korg MS-20 Mini - Monophonic Analog Synthesizer MS20MINI, which address similar problems with connecting and setting up Synthesizer Keyboards Korg.



User manual for the Korg MS-20 Mini - Monophonic Analog Synthesizer MS20MINI

The user manual for the Korg MS-20 Mini - Monophonic Analog Synthesizer MS20MINI provides necessary instructions for the proper use of the product Pro Audio - Musical Instruments - Synthesizer Keyboards.

The MS-20 Mini from Korg is a fully functioning analog synthesizer featuring the circuitry of the iconic, late 1970's MS-20 synthesizer, but shrunk to 86% of the original size. Its versatile patching options, analog filters, and the ability to process external signals makes this diminutive powerhouse very attractive to the analog synthesizer aficionado.

A development team led by the original engineers strove to painstakingly replicate the MS-20, both in sound and form. The sound comes from an architecture featuring two oscillators (one with ring modulation) and envelope generators with hold and delay. The VCA (Voltage Controlled Amplifier) maintains the basic design of the original, but has been modified to produce less noise.

High-pass and low-pass filters with resonance and distinctive distortion can deliver radical sounds when the filters are pushed into self oscillation. Additionally, external sources such as an electric guitar or vocals can be used to control the synthesizer or have the source manipulated by the filters. A flexible hard-wire patching system provides endless possibilities.

The synthesizer features a MIDI In jack for receiving note messages, and a USB-MIDI connector that can transmit and receive note messages (there is no velocity information). Connecting the unit to a computer allows it to be triggered from a sequencer.
If you own a Korg synthesizer keyboards and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Korg MS-20 Mini - Monophonic Analog Synthesizer MS20MINI in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Korg MS-20 Mini - Monophonic Analog Synthesizer MS20MINIDownload user manual for Korg MS-20 Mini - Monophonic Analog Synthesizer MS20MINI
(PDF file, 4.59 MB)
Additional parameters of the Korg MS-20 Mini - Monophonic Analog Synthesizer MS20MINI:
Keyboard 37-note mini keyboard
Polyphony Monophonic
Multitimbral No
Synthesis Method Voltage controlled analog
Control Section Voltage Controlled Oscillator 1 (VCO 1)
Scale: 32, 16, 8, 4' (6 octaves, +cent, -cent)
Waveform: Triangle, Sawtooth, PW-Square, White Noise, (x 4 modes)
Pulse Width Adjust: 1:1 to 1:Infinity

Voltage Controlled Oscillator 2 (VCO 2)
Scale: 16, 8, 4, 2' (6 octaves, +cent, -cent)
Waveform: Sawtooth, Square, Pulse, Ring Modulator, (x 4 modes)
Pitch: +/-1 Octave

VCO Master Control
Master Tune: +/- 100 cents
Portamento: Maximum 10 s
Frequency Modulation Intensity by MG/T.EXT: -5V to +5V
Frequency Modulation Intensity by EG1/EXT: -5V to 0V

VCO Mixer
VCO 1 Level
VCO 2 Level

Voltage Controlled High Pass Filter (VCF HPF)
Cutoff Frequency: 50 Hz to 15 kHz
Peak: Flat to self OSC
Cutoff Frequency Modulation Intensity by MG/T.EXT: -5V to +5V
Cutoff Frequency Modulation Intensity by EG2/EXT: -5V to +5V

Voltage Controlled Low Pass Filter (VCF LPF)
Cutoff Frequency: 50 Hz to 15 kHz
Peak: Flat to self OSC
Cutoff Frequency Modulation Intensity by MG/T.EXT: -5V to +5V
Cutoff Frequency Modulation Intensity by EG2/EXT: -5V to +5V

Envelope Generator 1
Delay Time: 10 s
Attack Time: 10 s
Release Time: 10 s

Envelope Generator 2
Hold Time: 20 s
Attack Time: 10 s
Decay Time: 10 s
Sustain Time: 10 s
Release Time: 10 s

Modulation Generator (LFO)
Waveform: Positive Sawtooth - Triangle - Negative Sawtooth, Wide Pulse - Square - Narrow Pulse
Frequency: 0.1 Hz to 20 Hz

Manual Controller
Control Wheel (center click)
Momentary Switch --> Ground

Power switch and Volume
Volume

Indicators
Keyboard Trigger LED
Modulation Generator Rate LED
Power On LED
External Signal Processor Control Section
Input Signal Level
Low Cut Frequency: 50 Hz to 2.5 kHz
High Cut Frequency: 100 Hz to 5 kHz
CV Adjust
Threshold Level

Input and Output
Signal In
Amplifier Out
Band Pass Filter Out
CV Out: 0 to +8.4V
ENV Out: 0 to +5V
Trig Out: +5V --> Ground

Indicators
Peak Indicator LED
Trigger Indicator LED
Control Section
Input Signal Level
Low Cut Frequency: 50 Hz to 2.5 kHz vHigh Cut Frequency: 100 Hz to 5 kHz
CV Adjust
Threshold Level

Input and Output
Signal In
Amplifier Out
Band Pass Filter Out
CV Out: 0 to +8.4V
ENV Out: 0 to +5V
Trig Out: +5V --> Ground

Indicators
Peak Indicator LED
Trigger Indicator LED
Patch Panel Keyboard
Keyboard Control Voltage Output (Exponential): 0 to +8V
Keyboard Trigger Output: +5V --> Ground
VCO-1 + VCO-2 Control Voltage Input (Linear Response): 0 - +8V
VCO-2 Control Voltage Input (Linear Response): 0 - +8V

VCO
VCO-1 + VCO-2 External Frequency Control Input (Oct/V): -5V to +5V

VCF
External Signal Input: 3Vp-p maximum
External High Pass Filter Cutoff Frequency Control Input (2 Oct/V): -5V to +5V
External Low Pass Filter Cutoff Frequency Control Input (2 Oct/V): -5V to +5V

VCO + VCF
Total External Modulation Input (T.EX): -5V to +5V

VCA
External Initial Gain Control Input: 0 to +5V

EG
EG 1 Envelope Signal Normal Output: -5V to 0V
EG 1 Envelope Signal Reverse Output: +5V to 0V
EG 1 + EG 2 Trigger Input: --> Ground
EG 1 Trigger Input: --> Ground
EG 2 Envelope Signal Reverse Output: +5V to 0V

MG
Triangle Output: Positive Sawtooth - Triangle - Negative Sawtooth (5Vp-p)
Rectangle Output: Wide Pulse - Square - Narrow Pulse (0 to +5V)

Noise Generator
Pink Noise Output: 5Vp-p
White Noise Output: 5Vp-p

Sample and Hold
Clock Trigger Input: --> Ground
Sample Signal Input: 5Vp-p maximum
S/H Output: 5Vp-p maximum

Modulation VCA
Control Voltage Input: 0 to +5V)
Signal Input: -5V to +5V
Signal Output: -5V to +5V

Manual controller
Control Wheel Output: -5V <-- 0v --> +5V
Momentary Switch Output: --> Ground
Connectors 1 x 1/8" (3.5 mm) TS mono mini Signal Output (2Vp-p, output impedance 3.5kΩ)
1 x 1/8" (3.5 mm) TS mono mini External Signal Input
1 x 1/8" (3.5 mm) TRS stereo mini Headphone
1 x 5-pin DIN MIDI In*
1 x USB Type B**
* Only note messages received (velocity not used)
** Only note messages transmitted and received (velocity not used)
Power Requirements 9V DC via included external power supply
9W consumption
Dimensions (WxDxH) 19.4 x 10.1 x 8.2" (493 x 257 x 208 mm)
Weight 10.6 lb (4.8 kg)
Packaging Info
Package Weight 15.0 lb
Box Dimensions (LxWxH) 23.0 x 13.0 x 13.0"
