User manual Kowa LMVZ282A-HR 1/3" Varifocal Auto-Iris Lens LMVZ282A-HR

Operating instructions and pdf manual for use - Kowa LMVZ282A-HR 1/3" Varifocal Auto-Iris Lens LMVZ282A-HR User manual, User manual Kowa LMVZ282A-HR 1/3" Varifocal Auto-Iris Lens LMVZ282A-HR, Kowa, LMVZ282A-HR, 1/3, Varifocal, Auto-Iris, Lens, LMVZ


User manual for Kowa LMVZ282A-HR 1/3" Varifocal Auto-Iris Lens LMVZ282A-HR

Kowa LMVZ282A-HR 1/3
  • Manufacturer: Kowa
  • Basic description and contents of package
  • Product classification: Surveillance - Surveillance Video - Lenses - Lenses
  • Safety instructions
  • Startup and operation of the lenses
  • Tips for setting up your Kowa
  • Settings and expert assistance
  • Contact Kowa service
  • Troubleshooting
  • Warranty information
  • Price: 109 USD
We recommend checking out our discussion threads on the Kowa LMVZ282A-HR 1/3" Varifocal Auto-Iris Lens LMVZ282A-HR, which address similar problems with connecting and setting up Lenses Kowa.



User manual for the Kowa LMVZ282A-HR 1/3" Varifocal Auto-Iris Lens LMVZ282A-HR

The user manual for the Kowa LMVZ282A-HR 1/3" Varifocal Auto-Iris Lens LMVZ282A-HR provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Lenses - Lenses.

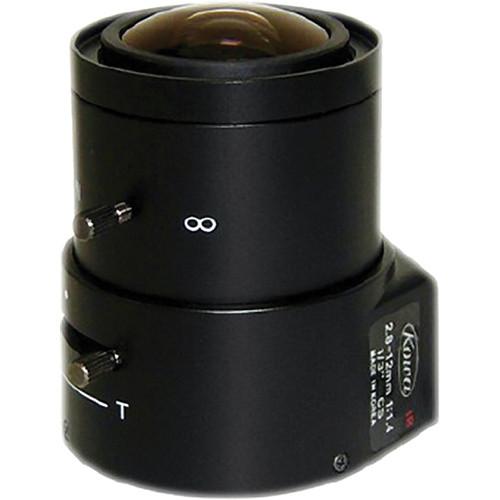

The Kowa LMVZ282A-HR 1/3" Varifocal Auto-Iris Lens (2.8 to 12mm) features a variable focal length for capturing nearby as well as far objects. The DC auto-iris enables motorized control of aperture for desired exposures.
If you own a Kowa lenses and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Kowa LMVZ282A-HR 1/3" Varifocal Auto-Iris Lens LMVZ282A-HR in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Kowa LMVZ282A-HR 1/3" Varifocal Auto-Iris Lens LMVZ282A-HR:
Sensor Size 1/3"
Focal Length 2.8 to 12 mm
Zoom Ratio 4.5x
Maximum Diameter (Ratio) F1.4
Iris Range F1.4 to 360C
Image Size Φ6
Back Focal Length Wide: 0.34” (8.52 mm)
Tele: 0.82” (20.77 mm) in air
Flange Focal Length 0.49" (12.5 mm)
Focus Range 0.82' (0.25 m)
Field Angle Diagonal: 118° (wide), 27° (tele)
Horizontal: 96° (wide), 22.6° (tele)
Vertical: 72.6° (wide), 17.1° (tele)
Field of View at M.O.D Horizontal: 2.28” (58 mm / wide), 0.44” (11.2 mm / tele)
Vertical: 1.52” (38.5 mm / wide), 0.33” (8.4 mm / tele)
Aperture Front: Φ30.6
Rear: Φ12
Mount CS-mount
Driving Coil Resistor: 200 Ω (68°F / 20°C)
Color: Red (+), black (-)
Dumping Coil Resistor: 730 Ω (68°F / 20°C)
Color: Yellow (+), orange (-)
Driving Voltage To open: <4 V
To close: >0.5 V
Weight 2.82 oz (80 g)
Packaging Info
Package Weight 0.25 lb
Box Dimensions (LxWxH) 4.0 x 2.9 x 2.4"
The user manual for the Kowa LMVZ282A-HR 1/3" Varifocal Auto-Iris Lens LMVZ282A-HR can be downloaded in .pdf format if it did not come with your new lenses, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Kowa users keep a unique electronic library for Kowa lensess, where you can use our link to download the user manual for the Kowa LMVZ282A-HR 1/3" Varifocal Auto-Iris Lens LMVZ282A-HR.

The user manual lists all of the functions of the Kowa LMVZ282A-HR 1/3" Varifocal Auto-Iris Lens LMVZ282A-HR, all the basic and advanced features and tells you how to use the lenses. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Kowa service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Kowa LMVZ282A-HR 1/3" Varifocal Auto-Iris Lens LMVZ282A-HR. User manuals are also available on the Kowa website under Surveillance - Surveillance Video - Lenses - Lenses.
